SIEMENS · PRODUCT DETAILS

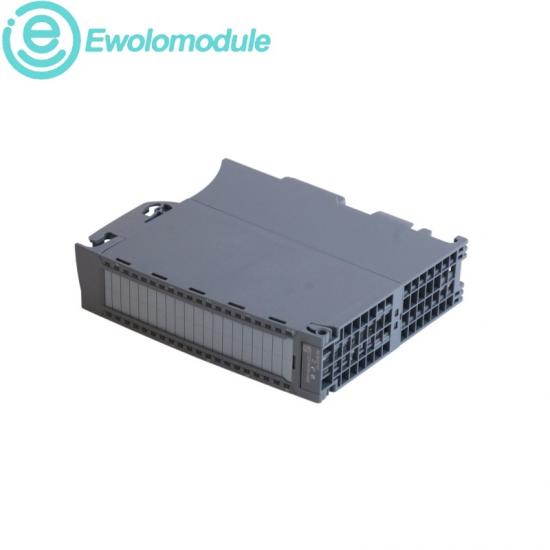

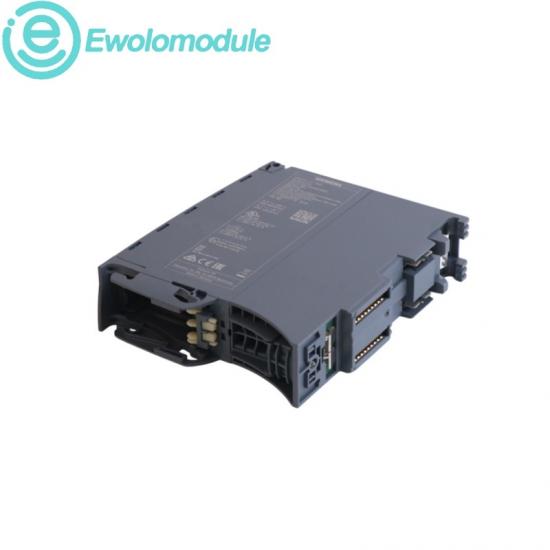

Siemens 6ES7532-5NB00-0AB0 S7-1500 Analog Output Module

Two-channel standard analog output module for precise voltage and current control in SIMATIC S7-1500 and ET 200MP systems.

CONDITIONNew Original

WARRANTYOne year

☎ +86 17359287459 ✉ sales9@apterpower.com

SYSTEM POSITION

S7-1500 · ET 200MP

AQ 2xU/I ST module supplied with a 40-pole push-in front connector and shielding accessories.

Product snapshot

The module provides two analog voltage/current outputs with 16-bit resolution and 0.3% basic accuracy for process actuators and control loops.

Channel diagnostics, substitute values and in-RUN parameterization support controlled commissioning and maintenance. Safety-oriented load-group shutdown is supported up to SIL 2.

Explore other Siemens products →

OPERATING INSIGHT

Detailed product description

Designed for SIMATIC S7-1500 and ET 200MP stations, the AQ 2xU/I ST converts controller values into two configurable voltage or current signals. The two channels form one group and are isolated from the backplane bus and load voltage. The supplied push-in front connector and shielding components support structured panel installation.

◇ Operating environment

Rated for 24 V DC supply. Horizontal operation is specified up to 60 °C and vertical operation up to 40 °C; installation altitude is documented up to 5,000 m with restrictions above 2,000 m.

◎ Monitoring & control

Integrated module and channel diagnostics, substitute-value handling, status/error LEDs, and reparameterization or calibration during RUN support plant monitoring and service work.

Official technical data

Product type
AQ 2xU/I ST

Analog outputs
2 voltage/current channels

Resolution
16 bit

Basic accuracy
0.3%

Supply voltage
24 V DC

Current consumption
110 mA max.

Power loss
2.7 W typical

Safety shutdown
Up to SIL 2

BRAND & APPLICATION

Siemens brand characteristics

Siemens automation hardware uses coordinated controller, distributed I/O and engineering concepts across established industrial systems.

Documented order codes, module data and lifecycle paths support structured servicing and replacement planning.

Application fields

Process valves, positioners and analog drives.

Machine and plant control loops requiring two precise analog outputs.
