Product DetailsSIEMENS

SIMATIC S7-300 / CPU 315-2 DP

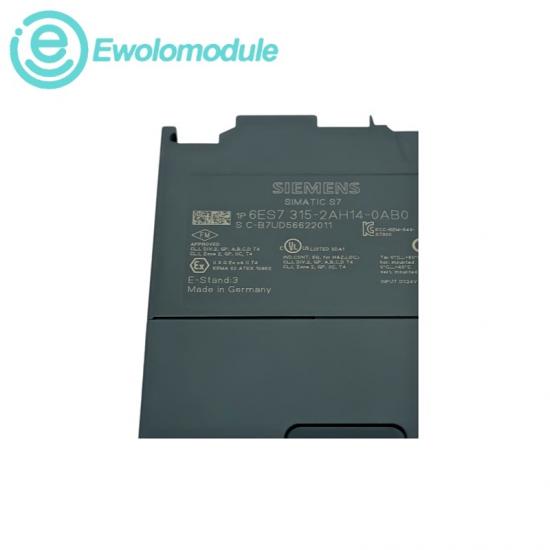

6ES7315-2AH14-0AB0

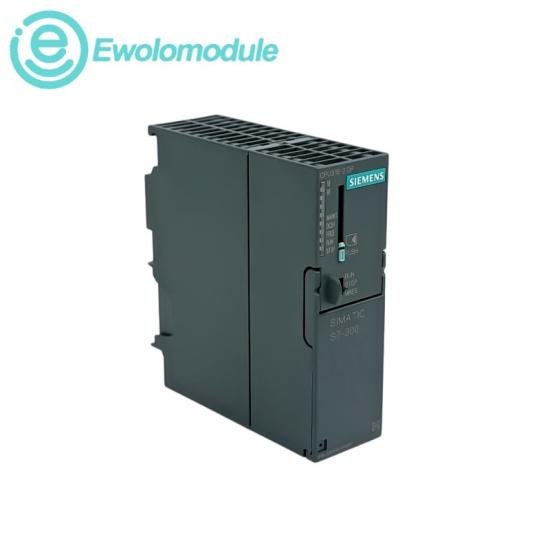

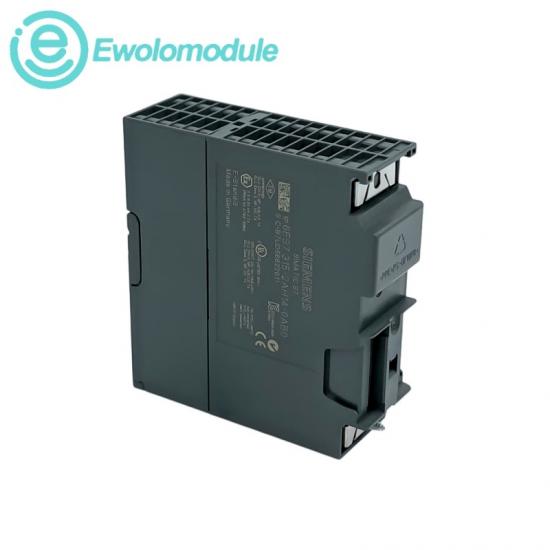

SIMATIC S7-300 CPU 315-2 DP Central Processing Unit

A central controller for coordinating machines and distributed plant equipment.

Condition

New Original

Warranty

One year

In stock

Official data source / Siemens CPU 31x technical specifications · 03/2011 · section 9.4

Specifications

Technical data, in context

Work memory

256 KB; not expandable

Retentive data blocks

Maximum 128 KB

Load memory

SIMATIC Micro Memory Card; maximum 8 MB

Bit-operation time

Minimum 0.05 µs

Supply voltage

24 V DC; permissible 19.2–28.8 V DC

Typical power loss

4.5 W

MPI interface

X1 RS 485; 187.5 kbit/s

PROFIBUS interface

X2 RS 485; DP master/slave

DP transmission rate

Maximum 12 Mbit/s

DP master capacity

Maximum 124 DP slaves

Product description

The CPU executes the user program and coordinates central and distributed I/O. Its separate MPI and PROFIBUS interfaces provide programming and field-device communication.

Product positioning

Central control for installed S7-300 stations.

Suffix identity

AH14 identifies the CPU generation documented in section 9.4; retain the full article number.

System connection

S7-300 rack, compatible PROFIBUS devices and STEP 7 engineering.

Battery-free retention

The memory-card concept retains program and data without a battery.

Protected programs

Password protection and S7-Block Privacy support program security.

Synchronized fieldbus

Constant bus cycles and isochronous operation are supported.

Recommand

Applications & model directory

Machine control

Coordinate sequenced machine operations.

Process equipment

Connect control logic to field instrumentation.

Distributed I/O

Manage remote PROFIBUS stations.

Installed-base maintenance

Match the exact CPU article number for replacement.
