Product DetailsSIEMENS

SIMATIC NET / Industrial Ethernet OSM-ESM

6GK1105-3AA10

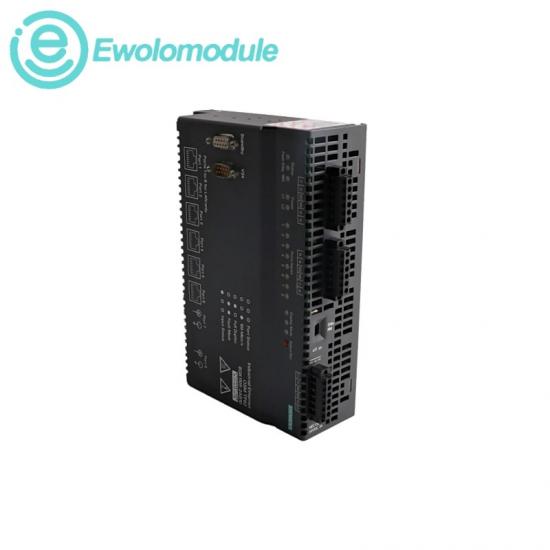

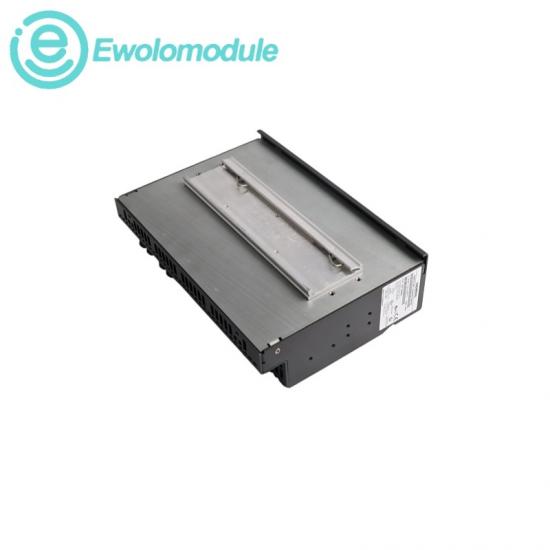

SIMATIC NET ESM ITP80 Industrial Ethernet Switch

An industrial switching module for maintaining structured Ethernet networks with ITP connections.

Condition

New Original

Warranty

One year

In stock

Official data source / Siemens OSM/ESM manual · C79000-Z8900-C068-10

Specifications

Technical data, in context

Electrical ports

8 Industrial Twisted Pair ports

Connector type

9-pin Sub-D female

Data rate

10/100 Mbit/s

Digital inputs

8 inputs; 24 V DC nominal

Power supply

2 × 24 V DC; permissible 18–32 V DC

Power loss

20 W at 24 V DC

Switching method

Store and forward

Operating temperature

0°C to 60°C

Operating humidity

Less than 95%; non-condensing

ESM-to-ESM segment

Maximum 100 m

Product description

The ESM interconnects devices and network segments and makes external input states available to network management. Ring and line structures can be formed by coupling compatible modules.

Product positioning

Network distribution for established industrial ITP installations.

Suffix identity

Siemens lists 3AA10 as the ESM ITP80 with digital inputs; 3AA00 is the version without them.

System connection

ITP cabling connects Ethernet devices; a standby-sync port supports redundant ring coupling.

Automatic link setup

Auto-negotiation and auto-crossover support connection setup.

Remote status reporting

Input changes can trigger email, SNMP traps or log entries.

Local indication

Selectable LED modes display network and input status.

Recommand

Applications & model directory

Industrial networks

Interconnect automation equipment over ITP cabling.

Legacy installations

Maintain existing OSM/ESM network infrastructure.

Cabinet monitoring

Collect external digital status information.

Network continuity

Support configured line and ring topologies.
