Product DetailsSIEMENS

SIMATIC S7-1500 / CP 1543-1

6GK7543-1AX00-0XE0

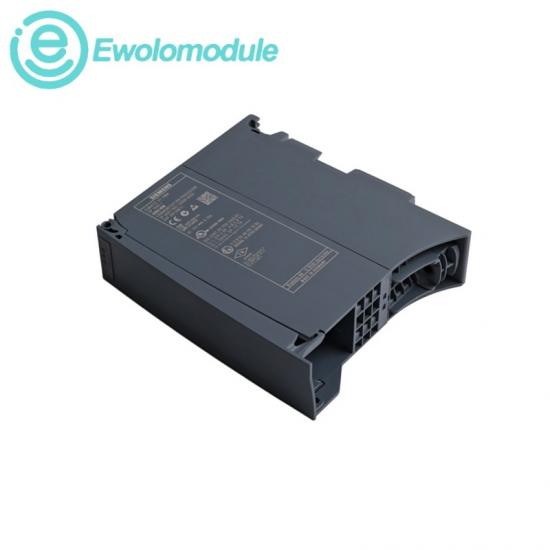

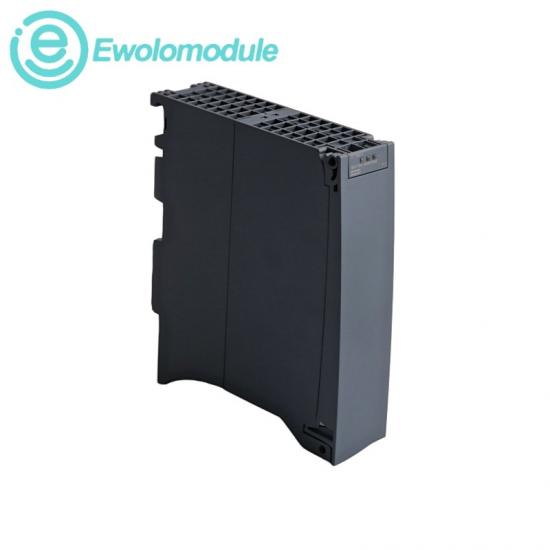

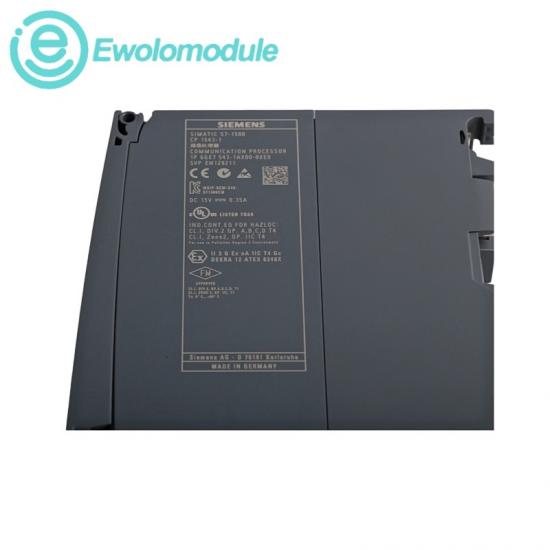

SIMATIC NET CP 1543-1 Communications Processor

Industrial Ethernet connectivity for integrating a SIMATIC S7-1500 station into plant communication networks.

Condition

New Original

Warranty

One year

In stock

Official data source / Siemens CP 1543-1 technical product data

Specifications

Technical data, in context

Ethernet interface

1 RJ45 port

Transfer rate

10/100/1000 Mbit/s

Backplane supply

15 V DC

Typical current

0.35 A at 15 V DC

Power loss

5.3 W

Protection rating

IP20

Horizontal installation

0°C to 60°C

Vertical installation

0°C to 40°C

Communication services

TCP/IP, ISO, UDP and S7 communication

Security functions

VPN and firewall

Product description

The CP links the controller station with Industrial Ethernet and provides network services alongside automation communication. Configuration must match the installed module and its firmware.

Product positioning

Dedicated communication expansion for the S7-1500 platform.

Suffix identity

The complete AX00 article identifies this CP 1543-1 version; AX10 is a separately listed successor.

System connection

Mounted on an S7-1500 rail and connected through the station backplane.

File services

FTP client/server and email support plant-level information exchange.

Network diagnostics

SNMPv1/v3 supports network supervision.

Protocol flexibility

IPv4/IPv6 and NTP support network integration and time synchronization.

Recommand

Applications & model directory

Plant networking

Link controller stations to Industrial Ethernet systems.

Machine integration

Exchange control and production information.

Supervisory systems

Support communication with plant-level applications.

Installed-system support

Match the exact CP version during maintenance.
