Product DetailsSIEMENS

APOGEE / PXC Compact

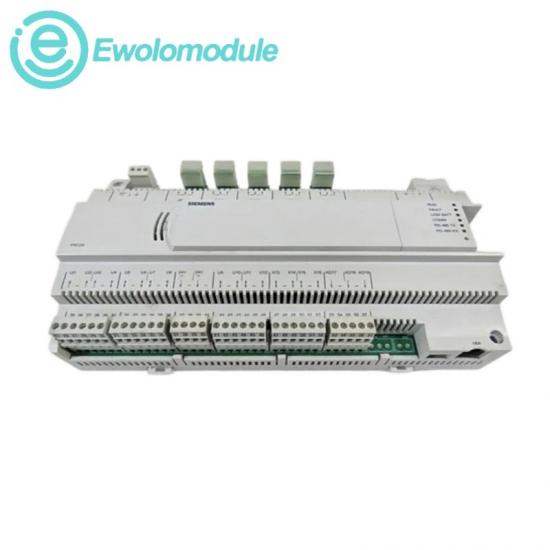

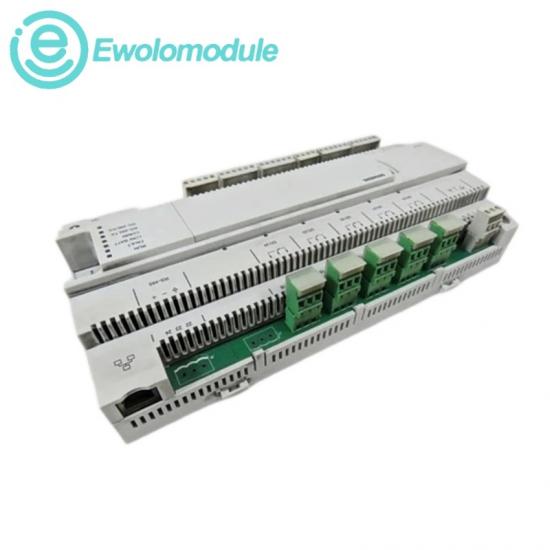

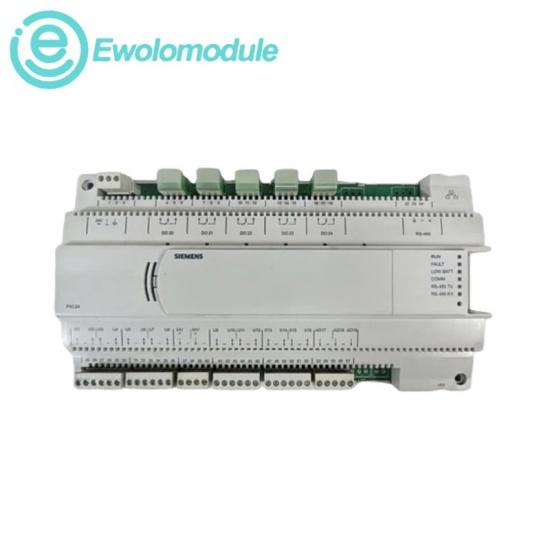

PXC24.2-E.A

PXC Compact BACnet/IP Controller

An APOGEE building-control platform for integrated equipment supervision and reliable facility operation.

Condition

New Original

Warranty

One year

In stock

Official data source / Siemens PXC Compact technical sheet · 149-206

Specifications

Technical data, in context

I/O configuration

3 UI + 9 U + 4 X + 3 AOV + 5 DO

Power input

24 V AC ±20%; 50/60 Hz

Maximum consumption

20 VA at 24 V AC

Processor

Freescale MPC852T · 100 MHz

Memory

16 MB SDRAM + 8 MB Flash ROM

ALN communication

BACnet/IP · 10Base-T / 100Base-TX

Analog input resolution

16-bit

Analog output resolution

10-bit

Operating temperature

0°C to 50°C

Relative humidity

5–95%; non-condensing

Product description

This controller processes field-sensor information and runs configurable PPCL sequences for direct equipment control. It can work independently or within a network, with alarm handling, trend collection and scheduling.

Product positioning

Supervisory DDC for air-handling equipment and building services.

Suffix identity

The exact -E.A order code is listed for BACnet/IP ALN; FLN and rooftop variants have different codes.

System connection

Peer-to-peer communication with APOGEE field panels and workstations over the Automation Level Network.

Serviceable connections

Removable terminals simplify wiring and maintenance.

Visible diagnostics

Status LEDs show operation, communication and battery condition.

Database resilience

Local backup and restore support continued controller maintenance.
