PRODUCT DETAILSSIEMENS

ARTICLE NUMBER

6ES7322-5FF00-0AB0

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

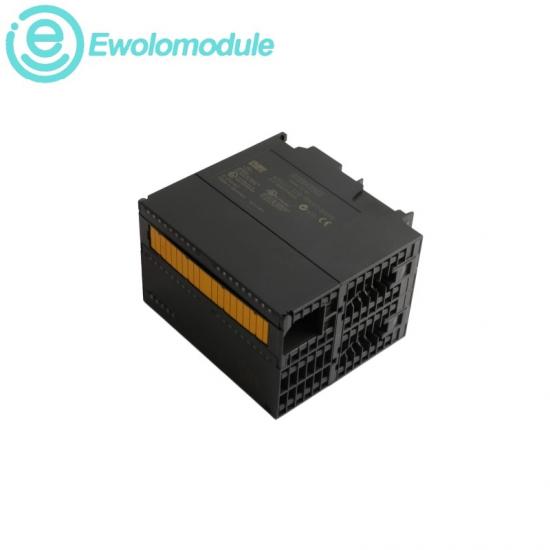

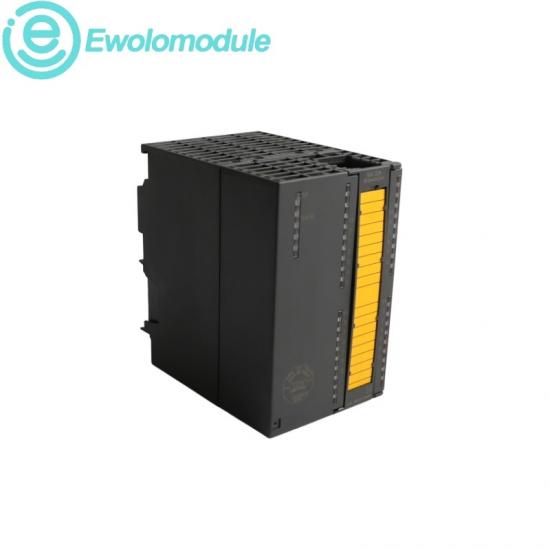

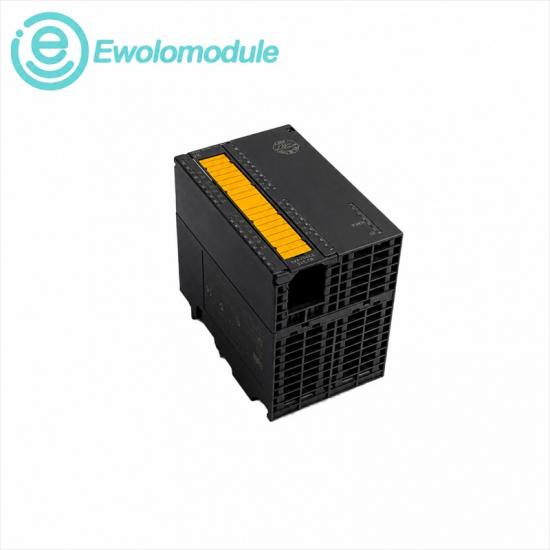

SIMATIC S7-300 SM 322 8DO AC Digital Output Module

SIMATIC S7-300 / SM 322

Description: Provides eight isolated AC output channels with diagnostics and configurable substitute-value behavior for S7-300 automation.

Tel : +86 17359287459Email : sales9@apterpower.com

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

6ES7322-5FF00-0AB0 FUNCTIONAL PROFILE

The SM 322 module switches eight isolated 120/230 V AC load channels in an S7-300 station. Channel status indication, configurable diagnostics and substitute-value output support controlled operation of industrial AC loads.

OFFICIAL TECHNICAL DATA

Article number

6ES7322-5FF00-0AB0

Product type

KEY-PLUG XM-400 Layer 3 Routing

Compatible platform

SCALANCE XM-400

Storage medium

KEY-PLUG

Storage capacity

256 MiB

Layer 3 activation

Supported

Configuration storage

Supported

Device replacement support

Supported

Degree of protection

IP20

Lifecycle status

Phase-out since 01.10.2025

OPERATING ENVIRONMENT

Designed for S7-300 control-cabinet operation. Observe the documented 0 to 60 °C operating range, AC load conditions and installation-position derating.

INSTALLATION & UPGRADE

Mount in a compatible S7-300 rack and wire the 120/230 V AC loads through the specified front connector. Verify channel grouping, protective fusing and substitute-value settings before replacing an existing SM 322.

RECOMMAND

SAFETY & COMPLIANCE

RoHS-compliant since 12.03.2010. Electrically isolated outputs, configurable diagnostics and group protection support controlled AC-load operation when installed to the S7-300 manual.

PERFORMANCE EFFICIENCY

Eight 2 A AC outputs combine channel status indication and programmable substitute values, reducing external interface hardware and simplifying fault localization.
