PRODUCT DETAILS · SIEMENS

6ES7331-1KF02-0AB0

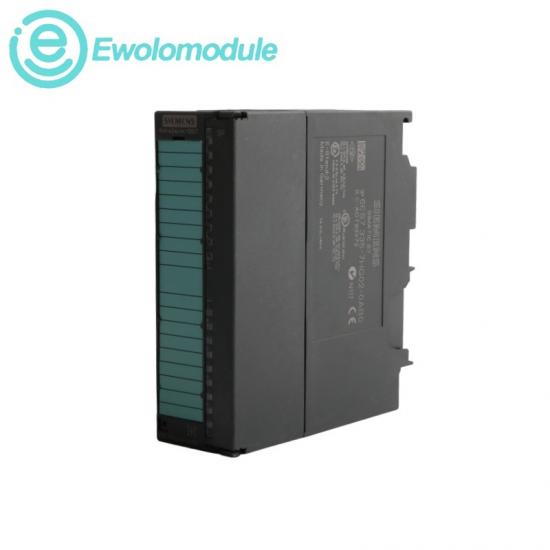

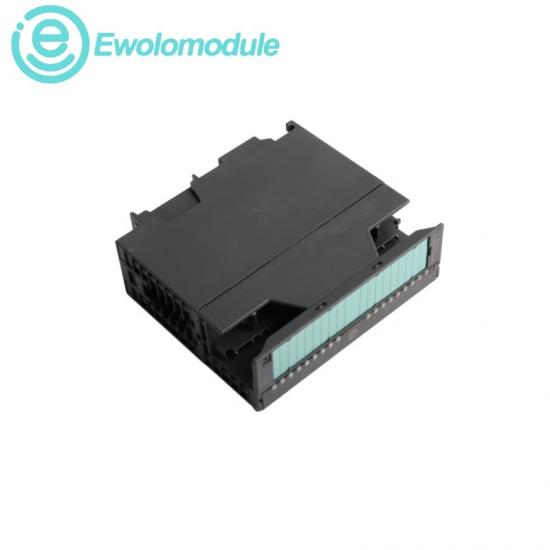

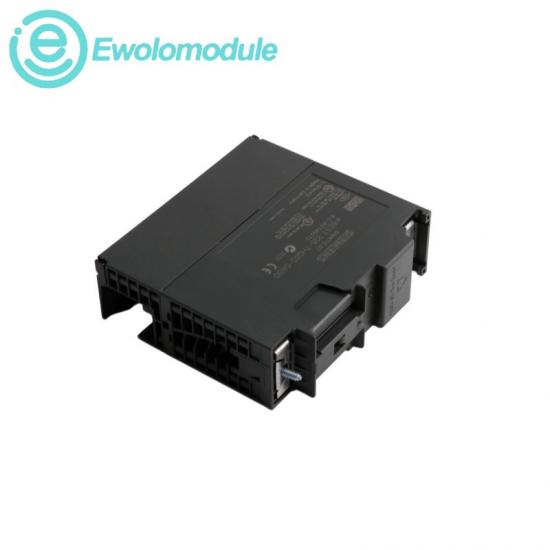

SIMATIC S7-300 SM 331 8-Channel Isolated Analog Input Module

PRODUCT IDENTITY

Siemens 6ES7331-1KF02-0AB0 SM 331 Analog Input Module

An isolated eight-channel analog input module for voltage, current, resistance and temperature signals in SIMATIC S7-300 systems.

Product series: SM 331 analog input modules

TEL
+86 17359287459

EMAIL
sales9@apterpower.com

RELATED MODELS

6ES7331-7KF02-0AB0

6ES7331-7NF00-0AB0

6ES7331-7PF01-0AB0

6ES7331-7TF01-0AB0

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical profile and system fit

PRODUCT DESCRIPTION

The SM 331 converts eight analog process signals for an S7-300 controller. Its isolated inputs can be parameterized for voltage, current, resistance and supported resistance-temperature sensors, providing 13-bit resolution and a 66 ms conversion time through a 40-pole front connection.

OFFICIAL TECHNICAL DATA

Product designation	SM 331	Input channels	8 analog inputs
Channel isolation	Isolated	Resolution	13 bit
Signal types	U / I / resistance	Supported sensors	Pt100, Ni100, Ni1000, PTC/KTY
Conversion time	66 ms	Front connector	1 × 40-pole

CERTIFICATIONS & STANDARDS

◆ RoHS compliant since 04.01.2010

◆ Product conformity applies within SIMATIC S7-300 systems

◆ Original Siemens installation rules remain applicable

COMPATIBILITY & INTEROPERABILITY

◆ SIMATIC S7-300 controller backplane bus

◆ Voltage, current and resistance transmitters

◆ STEP 7 measuring-type and range parameterization

RECOMMAND

Lifecycle handling and product selection

FIRMWARE UPDATES

◆ No user-loadable firmware is specified for this analog module

◆ Keep the matching STEP 7 hardware configuration during replacement

◆ Verify module revision and channel parameters before startup

CONFIGURATION & PROGRAMMING

◆ Select each channel measuring type and measuring range in STEP 7

◆ Assign the correct sensor wiring to the 40-pole connector

◆ Validate diagnostics and scaled process values after commissioning
