PRODUCT DETAILS · SIEMENS

6FX2001-5FN13

SIMOTICS Absolute Encoder Single-Turn 16-bit with PROFINET IO

PRODUCT IDENTITY

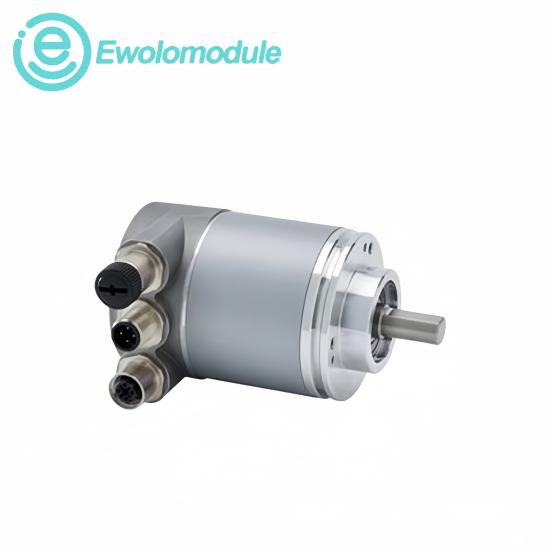

Siemens 6FX2001-5FN13 Absolute Encoder

A single-turn 16-bit absolute encoder with PROFINET IO RT/IRT, radial M12 connections and a 6 mm shaft.

Product series: Absolute encoders with PROFINET IO

TEL
+86 17359287459

EMAIL
sales9@apterpower.com

RELATED MODELS

6FX2001-5FN25

6FX2001-5FD13-0AA1

6FX2001-5QN13

6FX2001-5HE13

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical profile and system fit

PRODUCT DESCRIPTION

This absolute encoder supplies single-turn position data over PROFINET IO with RT and IRT. It provides two 100 Mbit/s IRT ports, adjustable resolution and counting direction, preset capability, a radial 6 mm shaft and separate M12 connections for network and operating voltage.

OFFICIAL TECHNICAL DATA

Encoder type	Absolute single-turn	Resolution	16 bit
Operating voltage	10–30 V DC	Interface	PROFINET IO RT / IRT
Network ports	2 × IRT, 100 Mbit/s	Shaft diameter	6 mm
Operating temperature	-40 to +85 °C	Protection	IP67 housing / IP64 shaft

CERTIFICATIONS & STANDARDS

◆ CE and cULus listed in the official datasheet

◆ EMC Directive 2014/30/EU

◆ Vibration tested to EN 60068-2-6

COMPATIBILITY & INTEROPERABILITY

◆ PROFINET IO RT and IRT networks

◆ Two radial M12 network ports plus M12 supply

◆ Parameterizable preset and counting direction

RECOMMAND

Lifecycle handling and product selection

FIRMWARE UPDATES

◆ Use the Siemens device-specific update package when applicable

◆ Confirm encoder hardware and engineering compatibility before updating

◆ Retain network identity and parameter data during replacement

CONFIGURATION & PROGRAMMING

◆ Import the applicable device description into the engineering system

◆ Assign the PROFINET device name and network parameters

◆ Set resolution, preset value and counting direction for the axis
