PRODUCT DETAILS · SIEMENS

6GK5307-3BM00-2AA3

SCALANCE X307-3LD Managed Plus Industrial Ethernet Switch

PRODUCT IDENTITY

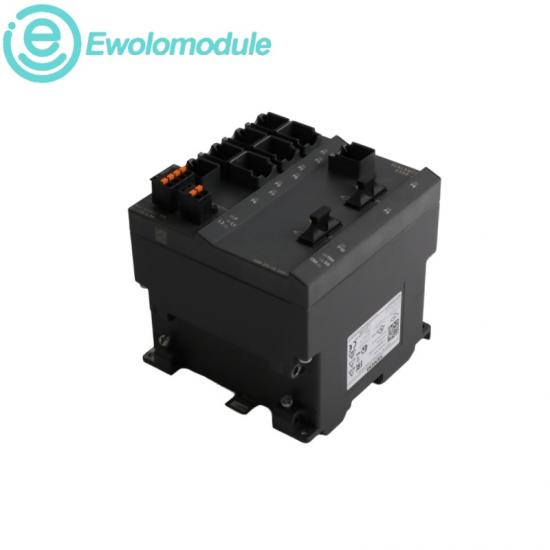

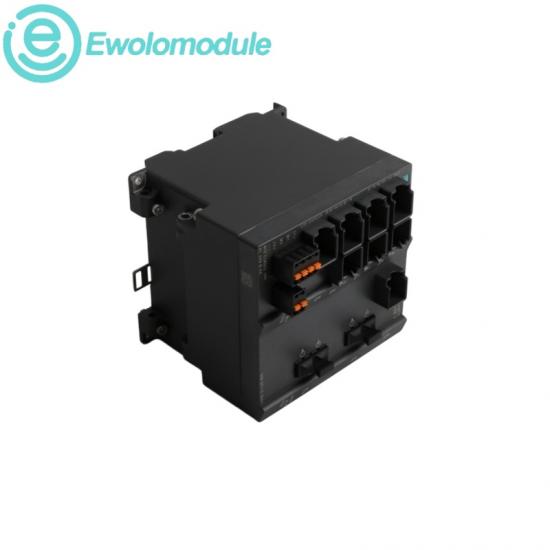

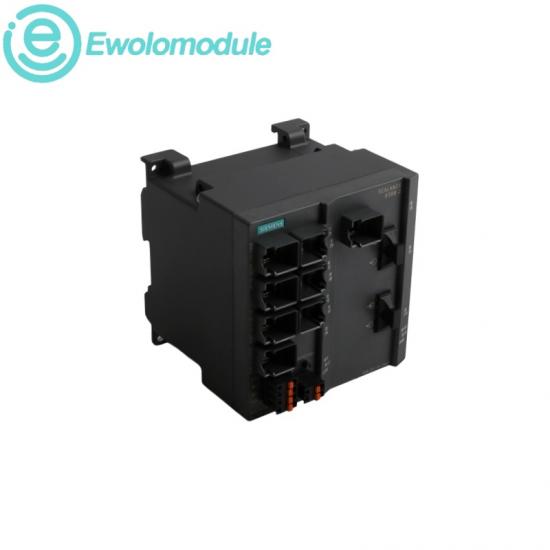

Siemens 6GK5307-3BM00-2AA3 Managed Industrial Ethernet Switch

A managed industrial switch with seven Fast Ethernet RJ45 ports and three single-mode Gigabit fiber interfaces.

Product series: SCALANCE X-300 managed

TEL
+86 17359287459

EMAIL
sales9@apterpower.com

RELATED MODELS

6GK5307-3BM10-2AA3

6GK5307-3BL10-2AA3

6GK5308-2FM00-2AA3

6GK5308-2FL10-2AA3

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical profile and system fit

PRODUCT DESCRIPTION

The SCALANCE X307-3LD combines seven 10/100 Mbit/s copper ports with three 1000 Mbit/s single-mode SC fiber ports for links up to 10 km. It supports PROFINET IO diagnostics, network management, C-PLUG storage, VLANs and integrated redundancy functions.

OFFICIAL TECHNICAL DATA

Product designation	SCALANCE X307-3LD	Copper ports	7 × RJ45, 10/100 Mbit/s
Fiber ports	3 × SC single-mode, 1000 Mbit/s	Fiber range	Up to 10 km
Supply voltage	24 V DC; 18–32 V DC	Power loss	9.6 W at 24 V DC
Operating temperature	-40 to +60 °C	Degree of protection	IP30

CERTIFICATIONS & STANDARDS

◆ CE and C-Tick marked

◆ ATEX II 3 G Ex nA II T4

◆ UL/CSA and listed marine approvals

COMPATIBILITY & INTEROPERABILITY

◆ PROFINET IO device and STEP 7 configuration

◆ SNMP, HTTPS, VLAN, IGMP and LLDP

◆ MRP, RSTP, ring and standby redundancy

RECOMMAND

Lifecycle handling and product selection

FIRMWARE UPDATES

◆ Siemens advisory recommends V4.1.4 or later for earlier firmware

◆ Back up the configuration to the supplied C-PLUG before updating

◆ Recheck redundancy and management access after the update

CONFIGURATION & PROGRAMMING

◆ Configure by web management, CLI or STEP 7

◆ Set VLAN, SNMP, redundancy and port diagnostics parameters

◆ Use the C-PLUG for controlled configuration transfer
