PRODUCT DETAILS · SIEMENS

6GK1503-3CA00

PROFIBUS OLM/P12 V4.0 Optical Link Module

PRODUCT IDENTITY

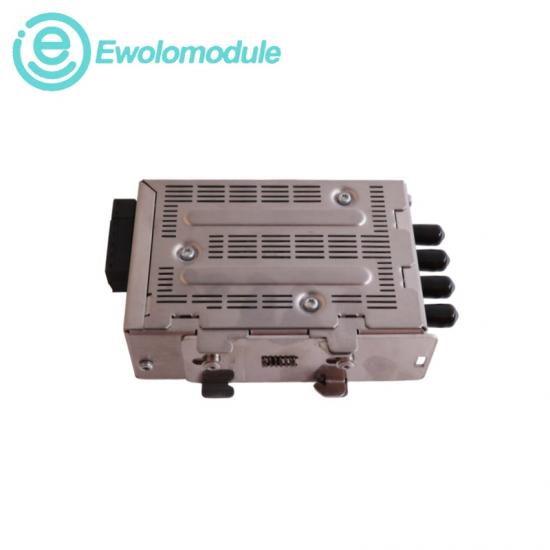

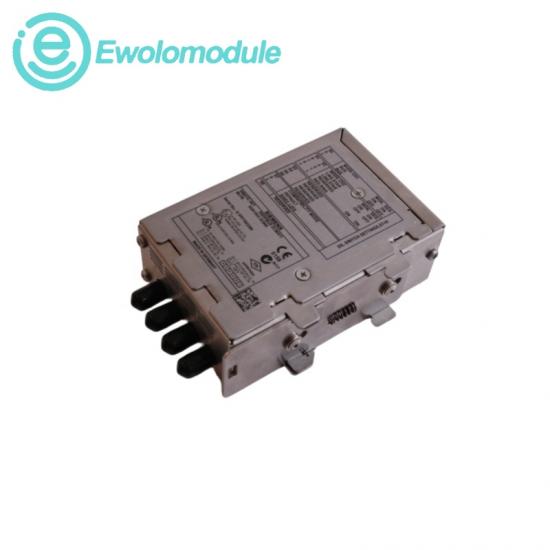

Siemens 6GK1503-3CA00 PROFIBUS Optical Link Module

A version 4.0 optical link module that couples one RS485 PROFIBUS interface to two plastic-fiber channels.

Product series: PROFIBUS Optical Link Modules

TEL
+86 17359287459

EMAIL
sales9@apterpower.com

RELATED MODELS

6GK1503-3CA01

6GK1503-2CB00

6GK1502-3CA10

6AG1503-3CA01-2AA0

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical profile and system fit

PRODUCT DESCRIPTION

The PROFIBUS OLM/P12 V4.0 provides one electrical RS485 interface and two plastic-fiber interfaces with four BFOC sockets. A signaling contact and measuring output support network supervision in optical PROFIBUS installations.

OFFICIAL TECHNICAL DATA

Product designation	PROFIBUS OLM/P12 V4.0	Electrical interface	1 × RS485
Optical interfaces	2 × plastic FOC	Optical connectors	4 × BFOC sockets
Signaling contact	Provided	Measuring output	Provided
Lifecycle	Cancelled since 01.10.2016	Official successor	6GK1503-3CA01

CERTIFICATIONS & STANDARDS

◆ RoHS compliance is stated in the official record

◆ Industrial PROFIBUS installation rules apply

◆ Use the applicable Siemens conformity documents for the plant

COMPATIBILITY & INTEROPERABILITY

◆ Electrical PROFIBUS RS485 segment

◆ Plastic fiber-optic PROFIBUS links

◆ Successor OLM/P12 V4.1: 6GK1503-3CA01

RECOMMAND

Lifecycle handling and product selection

FIRMWARE UPDATES

◆ No user-loadable firmware is specified for the V4.0 module

◆ Match the exact OLM hardware version during replacement

◆ Review V4.1 successor compatibility before migration

CONFIGURATION & PROGRAMMING

◆ No application program is required for optical repeating

◆ Set the PROFIBUS topology and termination correctly

◆ Commission the signaling contact and measuring output as required
