SIEMENS · PRODUCT DETAILS

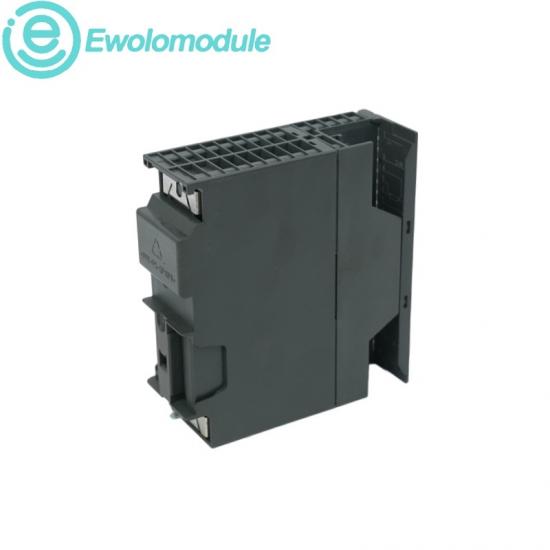

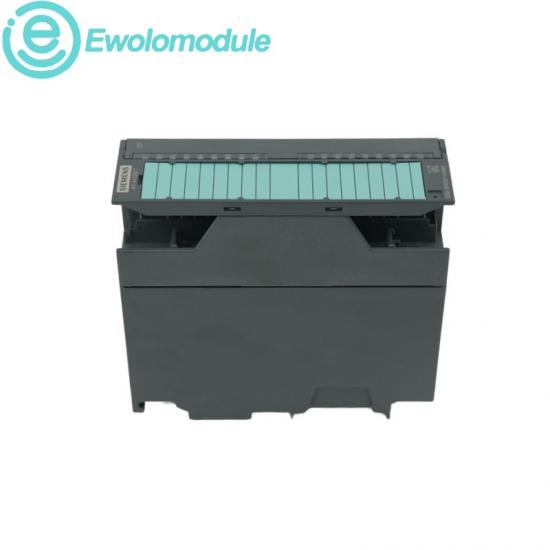

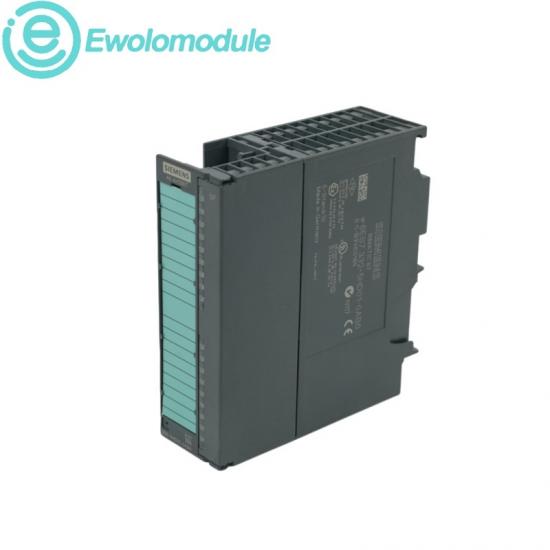

Siemens 6ES7332-5HD01-0AB0 SIMATIC S7-300 SM 332 4 AO U/I Analog Output Module

CONDITIONNew Original

WARRANTYOne year

PRODUCT SNAPSHOT

This isolated analog output module translates controller commands into stable voltage or current signals for valves, positioners, drives and other industrial actuators.

Its configurable signal ranges, onboard diagnostic behavior and established S7-300 integration make it suitable for control-loop expansion, scheduled replacement and lifecycle support. Confirm the installed rack, front connector and project configuration before commissioning.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore other Siemens →

OPERATION · VISIBILITY · CONTROL

◈ Operating Environment

Designed for operation from 0 to 60 °C in a SIMATIC S7-300 rack or a distributed ET 200M station. The module uses a 24 V DC load supply with reverse-polarity protection and supports shielded signal wiring up to 200 m.

◎ Monitoring & Control

Parameterizable module diagnostics and configurable diagnostic alarms support rapid fault localization. A red SF group-error LED communicates status, while parameterizable substitute values provide predictable fallback behavior.

OFFICIAL TECHNICAL DATA

Output channels 4 analog outputs	Signal selection Voltage or current, by channel	Resolution 11 bit + sign / 12 bit
Voltage ranges 0–10 V, 1–5 V, ±10 V	Current ranges 0–20 mA, 4–20 mA, ±20 mA	Conversion time 0.8 ms per channel
Voltage load Minimum 1 kΩ	Current load Maximum 500 Ω	Typical power loss 3 W
Isolation test 500 V DC	Front connection 20-pin connector	Backplane current Maximum 60 mA at 5 V DC

Siemens brand characteristics

01 Integrated engineering across SIMATIC controllers and distributed I/O.

02 Documented diagnostics support structured commissioning and maintenance.

03 Defined migration paths support established automation platforms.

04 Broad industrial certification portfolio for global machine projects.

Application fields

01 Valve and actuator command in process-control loops.

02 Speed-reference output for industrial drives and converters.

03 Chemical, water-treatment and utility automation systems.

04 S7-300 and ET 200M expansion, retrofit and service projects.

RECOMMENDED MODELS

SIEMENS

6ES7332-5HB01-0AB0	6ES7332-5HF00-0AB0	6ES7331-7KF02-0AB0	6ES7334-0KE00-0AB0
6ES7321-1BH02-0AA0	6ES7322-1BH01-0AA0	6ES7322-1BL00-0AA0	6ES7331-1KF02-0AB0
6ES7332-5RD00-0AB0	6ES7331-7NF00-0AB0	6ES7334-0CE01-0AA0	6ES7335-7HG02-0AB0
6ES7365-0BA01-0AA0	6ES7307-1EA01-0AA0	6ES7314-1AG14-0AB0	6ES7315-2AH14-0AB0
6ES7953-8LJ31-0AA0	6ES7392-1AJ00-0AA0	6ES7392-1AM00-0AA0	6ES7972-0BA52-0XA0

BECKHOFF

EL1008	EL1809	EL2008	EL2809
EL3002	EL3054	EL3064	EL4004
EL4132	EL5101	EL5151	EL6751
EL6731	EK1100	EK1122	CX9020-0111
CX5130-0125	CX2043-0155	CP6606-0001-0020	C6930-0060

QUOTE & ORDER REVIEW

Quote

Send the complete order code, required quantity, delivery destination and requested condition. The quotation will be prepared after model, revision and availability checks.

Order review

Confirm the installed S7-300 or ET 200M station, 20-pin front connector, signal range and STEP 7 project configuration before replacement or expansion.
