Siemens analog output module

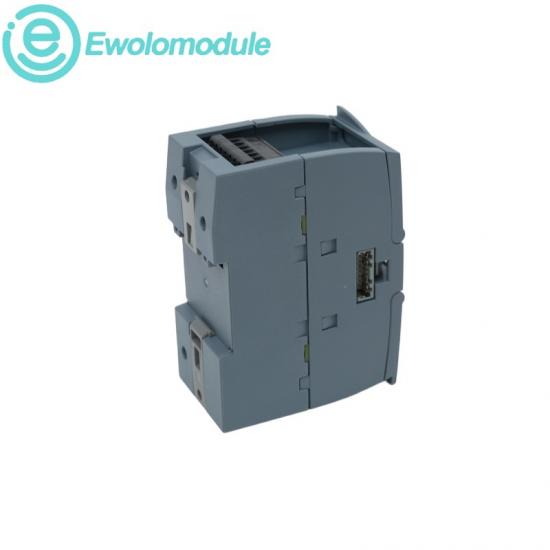

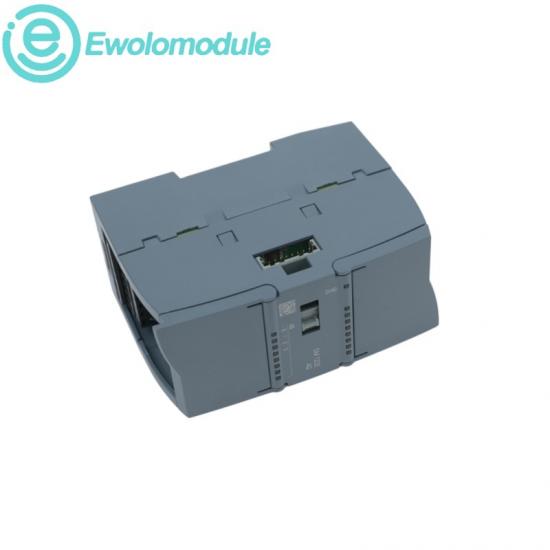

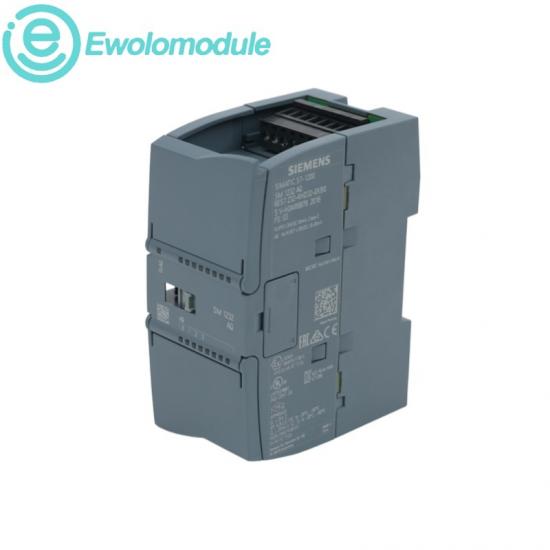

Siemens 6ES7232-4HB30-0XB0 Analog Output Module

A SIMATIC S7-1200 signal module for precise voltage or current output in machine and process automation.

CONTROL ROLE

Analog field control

Converts controller values into standard output signals for compatible actuators and instruments.

SeriesSIMATIC S7-1200

ConditionNew Original

WarrantyOne year

AvailabilityIn stock

Siemens Products 6ES7231-5PA30-0XB0 6ES7288-2QT16-0AA0 6ES7332-5HD01-0AB0

02 · SPECIFICATIONSEmail : sales9@apterpower.com

Detailed product description

SM 1232 analog output expansion

The SM 1232 AQ module provides configurable analog output expansion for an S7-1200 station. It supports voltage or current operation with documented accuracy, load and response characteristics for industrial control tasks.

ENGINEERING FOCUS

FlexibleConfigurable output mode

StableDefined load behavior

ServiceableControlled STOP response

Official technical data

Product designation	SM 1232 AQ	Output type	Voltage or current
Output range	±10 V or 0 to 20 mA	Output channels	2
Resolution	Voltage 14 bit; current 13 bit	Load impedance	Voltage ≥1000 Ω; current ≤600 Ω
Accuracy at 25°C	±0.3%	RUN-to-STOP response	Last value or substitute value

Safety & Compliance

Operating range-20 to 60°C

IsolationNo field-side-to-logic isolation

Cable length100 m

WiringTwisted, shielded cable

Performance & Efficiency

Power loss1.8 W

SM bus80 mA

24 V supply45 mA, no load

Settling timeVoltage 300–750 µs · Current 600 µs–2 ms

Configurable signal mode

Documented full-scale accuracy

Defined substitute-value behavior

03 · RECOMMANDEmail : sales9@apterpower.com

Brand characteristics

Siemens brings coordinated automation, documented engineering and lifecycle support together.

Modular platformCoordinated CPUs and signal modules

Engineering dataOfficial order numbers and manuals

Lifecycle supportService and replacement paths

Application fields

This module supports analog command tasks in machine, process and installed automation systems.

Machine controlValve and drive references

Process equipmentIndustrial regulation setpoints

System serviceS7-1200 expansion and replacement

Installation & upgrade: Isolate power, mount the module beside a compatible S7-1200 CPU, wire shielded analog circuits and confirm the configured voltage or current range before commissioning.
