Product Details

SIEMENS

Official product name

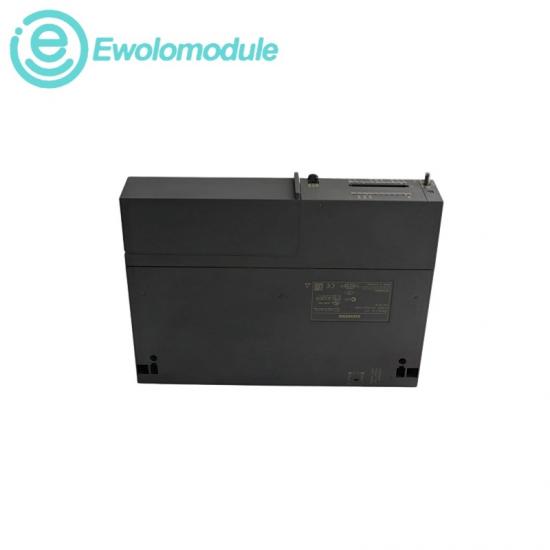

SIMATIC S7-300 SM 335 Analog I/O Module

Article number
6ES7335-7HG02-0AB0

Series
SIMATIC S7-300 / SM 335

Description
Isolated mixed analog module with four inputs, four outputs, diagnostics and process interrupt support.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule
6ES7351-1AH01-0AE0 6ES7511-1CK00-0AB0 6ES7331-7TF00-0AB0

Specifications / Official engineering data

SM 335 official engineering profile

The SM 335 combines isolated voltage/current analog acquisition and analog output in one S7-300 module. Four 14-bit inputs, four configurable outputs, diagnostics and process interrupt functions support compact closed-loop and measurement applications.

Official technical data
Article number	6ES7335-7HG02-0AB0	Product type	SM 335
Analog inputs	4	Analog outputs	4
Input signals	Voltage / current	Input resolution	14 bit
Output resolution	11 / 12 bit	Electrical isolation	Yes
Diagnostics	Supported	Front connector	1 x 20-pin

Product positioning	Mixed isolated analog I/O module for compact SIMATIC S7-300 process signal handling.
Suffix meaning	The complete MLFB identifies the SM 335 isolated U/I configuration and hardware release.
System relationship	Installs in a SIMATIC S7-300 central rack or supported ET 200M distributed station with STEP 7 configuration.

Recommand / Application and related models

Application & deployment
Process skids Combines sensor input and actuator output in compact control panels.	Machine control Handles analog feedback and command signals with diagnostics.	Utilities Supports isolated measurement and control loops in distributed stations.

Installation

Mount in an S7-300 or supported ET 200M station, wire the 20-pin front connector and configure input/output ranges in STEP 7.

Upgrade path

Archive the project and verify signal ranges, connector assignment, isolation and replacement-module behavior before migration.
