PRODUCT DETAILS

SIEMENS

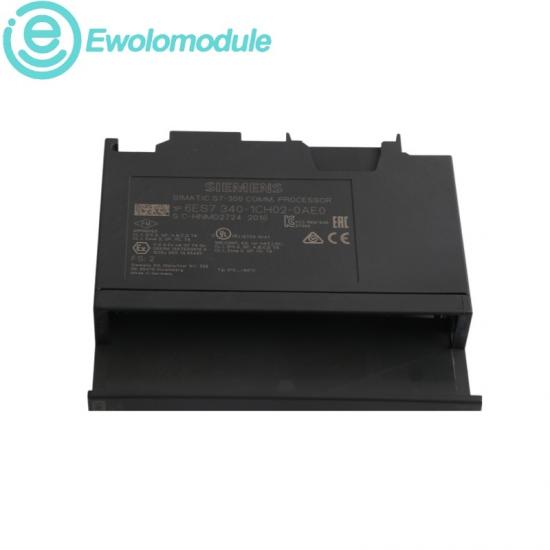

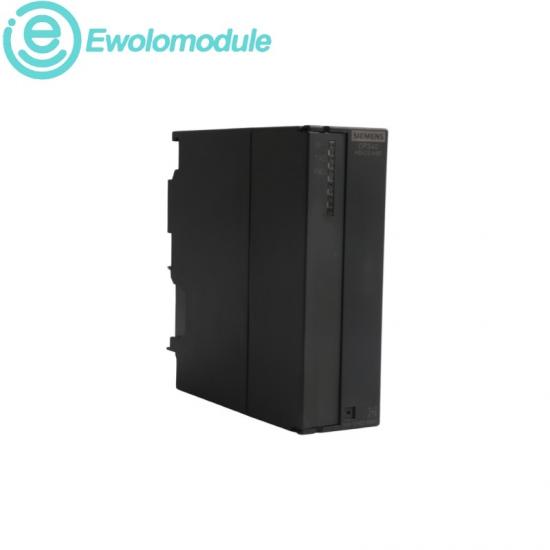

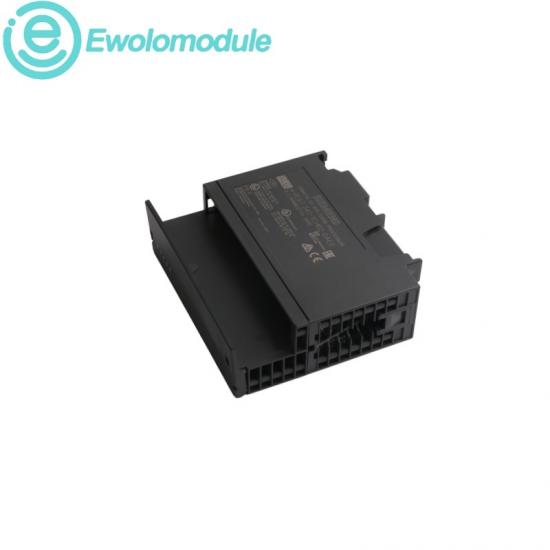

6ES7340-1CH02-0AE0

SIMATIC S7-300 CP 340 RS422/485 Communication Processor

Serial communications processor with isolated RS422/485 interface for S7-300 systems.

Warranty
One year

Availability
In stock

Tel
+86 17359287459

Email
sales9@apterpower.com

OPERATING ENVIRONMENT & CONTROL

Interface	RS422/485 isolated	Connector	15-pin D-sub
Transfer rate	2.4 to 19.2 kbit/s	Cable length	Up to 1200 m
Protocols	3964(R), ASCII	Telegram length	Up to 1024 bytes
Backplane current	165 mA at 5 V	Power loss	0.6 W typical

OPERATING ENVIRONMENT

• Specified for operation from 0 to 60 °C.

• Storage and transport range is -40 to 70 °C.

• The isolated interface supports industrial RS422/485 cabling.

• Cable lengths up to 1200 m are documented for the supported interface.

MONITORING & CONTROL

• Provides ASCII and 3964(R) serial protocol handling.

• Transfers telegrams up to 1024 bytes.

• Integrates with the S7-300 backplane bus.

• The supplied configuration package supports parameter assignment.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS

Siemens S7-300 communication processors extend modular PLC stations with isolated serial interfaces and established industrial protocol handling.

APPLICATION FIELDS

Legacy serial device integration, scanners, weighing systems, drives, printers, third-party controllers and long-distance RS485 machine communication.
