PRODUCT DETAILS

SIEMENS

6ES7460-3AA01-0AB0

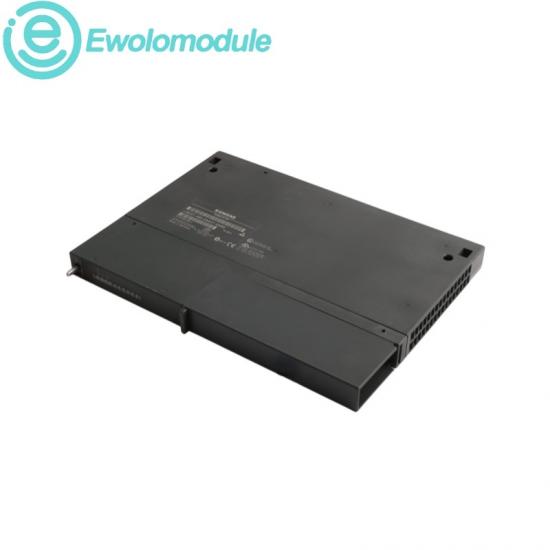

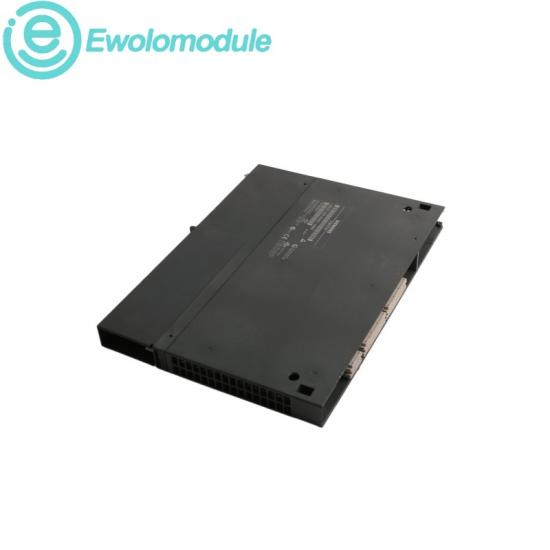

SIMATIC S7-400 IM 460-3 Send Interface Module

Send interface module for distributed S7-400 rack coupling over distances up to 102 m.

Warranty
One year

Availability
In stock

Tel
+86 17359287459

Email
sales9@apterpower.com

OPERATING ENVIRONMENT & CONTROL

Module role	Send interface	Rack coupling	Distributed
Maximum distance	102.25 m	Expansion racks	Up to 8
Bus transfer	K-bus and P-bus	Backplane current	1.55 A at 5 V DC
Power loss	7.75 W maximum	Termination plug	6ES7461-3AA0-7AA0

OPERATING ENVIRONMENT

• Installs in the S7-400 central rack for distributed expansion.

• The interface cable network can extend to 102.25 m.

• Connection length is set with module DIP switches.

• The receiving expansion racks use matching IM 461-3 interfaces.

MONITORING & CONTROL

• Transfers K-bus and P-bus communication to distributed racks.

• Supports up to eight expansion racks, with up to four per interface.

• Cable-length settings coordinate transmission timing.

• A specified termination plug completes the interface chain.

BRAND CHARACTERISTICS & APPLICATION FIELDS

BRAND CHARACTERISTICS

Siemens S7-400 interface modules provide deterministic distributed-rack expansion and matched backplane-bus transfer for large modular controller systems.

APPLICATION FIELDS

Large process systems, distributed S7-400 racks, multi-cabinet automation, plant retrofits and controller expansions requiring remote I/O racks.
