01 · PRODUCT DETAILS

SIEMENS / VERIFIED SERIAL COMMUNICATION

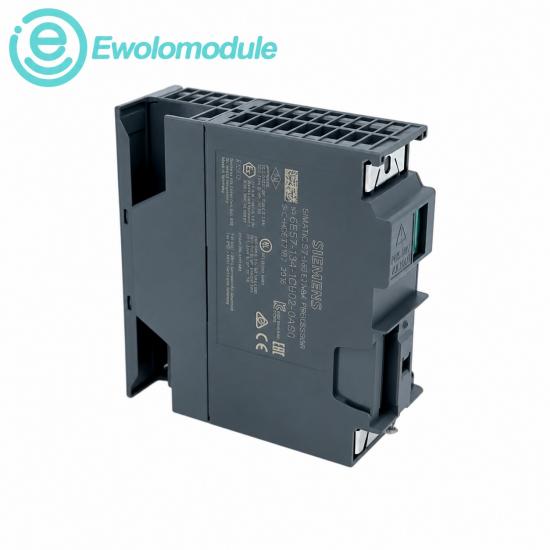

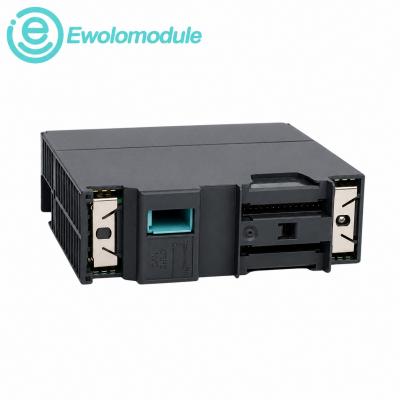

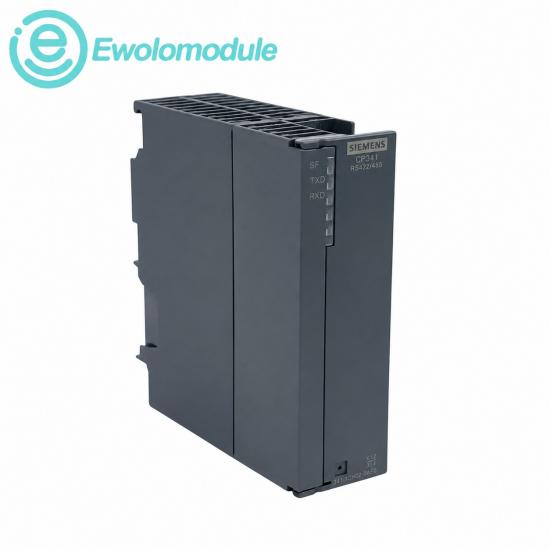

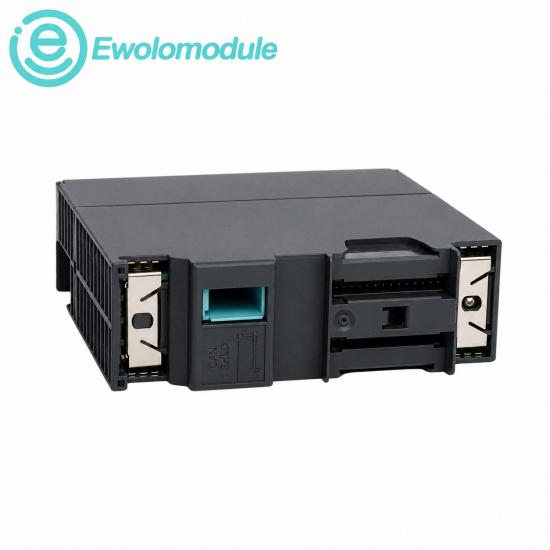

6ES7341-1CH02-0AE0

SIMATIC S7-300 CP 341 RS422/485 Communications Processor

A communications processor that connects an S7-300 station to serial field and peripheral devices.

PRODUCT IDENTITY

CP341

Isolated point-to-point interface

RS422 / RS485

BRANDSiemens

PRODUCT SERIESSIMATIC S7-300 CP 341

OFFICIAL NAMESIMATIC S7-300 CP 341 RS422/485 Communications Processor

PRODUCT ROLESerial point-to-point communication processor

CONDITIONNew Original

WARRANTYOne year

IN STOCK1

OFFICIAL DATA SOURCESiemens 6ES7341-1CH02-0AE0 technical data sheet

TECHNICAL
BLUEPRINT

PRODUCT POSITION

Dedicated serial channel for PLC-to-device data exchange

Handles configurable RS422/485 communication and supported serial protocols independently of the controller's cyclic program.

ORDERING CODE NOTE

6ES7341-1CH02-0AE0

The complete 1CH02-0AE0 suffix identifies the CP 341 version with an electrically isolated RS422/485 interface and configuration package.

OFFICIAL TECHNICAL DATA8 verified points

PRODUCT TYPECP 341

PHYSICAL INTERFACERS422/485 (X.27)

INTERFACE QUANTITY1, electrically isolated

RATED SUPPLY24 V DC

TRANSMISSION RATE0.3 to 115.2 kbit/s

MAXIMUM CABLE LENGTH1200 m

CONNECTOR15-pin Sub-D socket

INTEGRATED PROTOCOLSASCII, 3964(R), RK 512

SYSTEM CONNECTION15-pin Sub-D + isolated RS422/485

Isolated channelThe serial interface is electrically isolated from the internal controller electronics.

Multiple protocolsSiemens documents ASCII, 3964(R) and RK 512 for flexible device communication.

Long serial reachSupported line configurations permit cable lengths up to 1200 m.

APPLICATION MAP

Where X204IRT creates network value

Motion-control cellsDeterministic Ethernet coordination for distributed automation.

Production linesManaged PROFINET links between controllers and field devices.

Redundant networksIntegrated redundancy functions for higher machine availability.

Industrial diagnosticsNetwork management and error signaling support maintenance.

RECOMMENDED MODEL ROUTES · TWO SOURCING FAMILIES

SiemensIndustrial Ethernet and communication

6GK5005-0BA00-1AB2

6GK5008-0BA10-1AB2

6GK5108-0BA00-2AC2

6GK5116-0BA00-2AC2

6GK5124-0BA00-2AC2

6GK5204-0BA00-2BA3

6GK5204-2BB10-2AA3

6GK5206-1BB10-2AA3

6GK5208-0BA00-2AC2

6GK5216-0BA00-2AA3

6GK5216-0HA00-2AS6

6GK5224-0BA00-2AA3

6GK5205-3BB00-2AB2

6GK5205-3BF00-2AB2

6GK5324-0GG10-3AR2

6GK7443-1EX20-0XE0

6GK7443-1EX30-0XE0

6GK7342-5DA03-0XE0

6GK7343-1EX30-0XE0

6GK7343-2AH01-0XA0

BeckhoffPC-based and EtherCAT automation

EK1100

EK1122

EK1501

EL1008

EL1809

EL2008

EL2809

EL3008

EL3054

EL3314

EL4008

EL6695

BK1120

KL1408

KL2408

CX2040-0120

C6030-0060

CP6706-0001-0040

CX9020-0111

CX5130-0125

Reference models support sourcing context; verify compatibility against the complete article number and system documentation.
