01 · PRODUCT DETAILS

SIEMENS / VERIFIED INDUSTRIAL NETWORKING

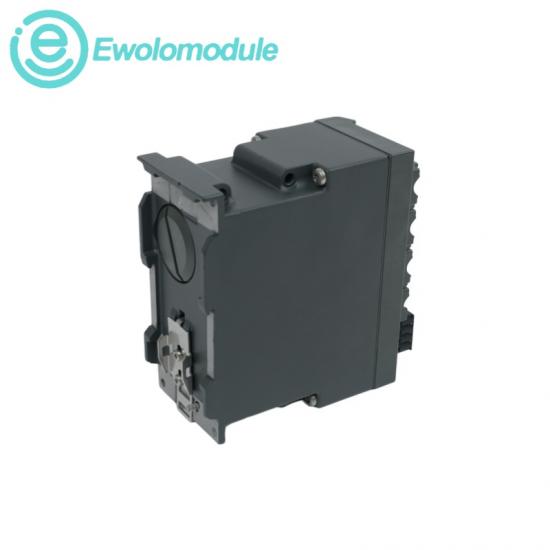

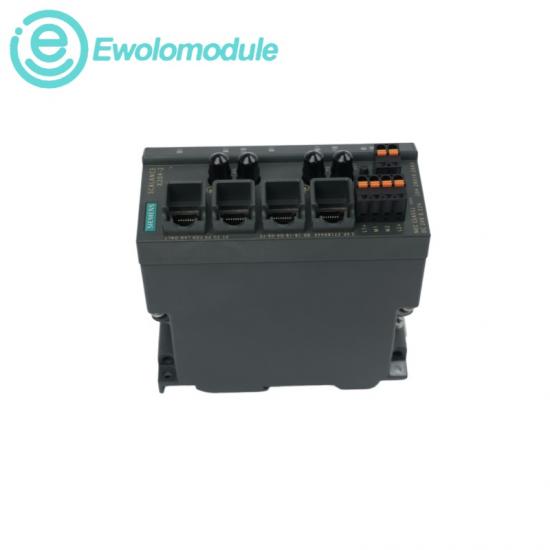

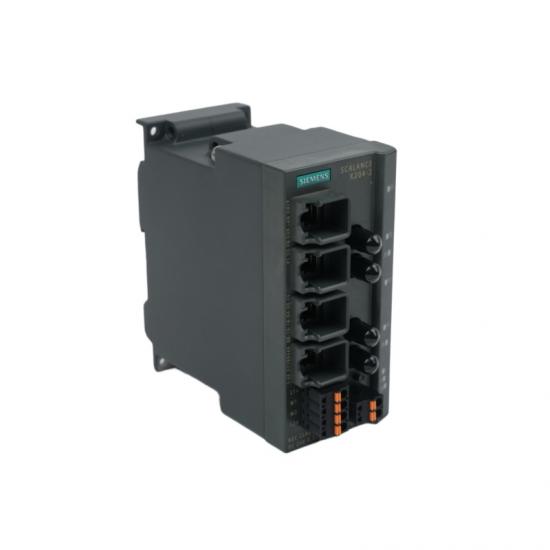

6GK5204-0BA10-2BA3

SCALANCE X204IRT Managed Industrial Ethernet IRT Switch

A managed industrial Ethernet switch providing four copper Fast Ethernet ports for PROFINET automation networks.

NETWORK IDENTITY

X204

Managed IRT switching node

PROFINET / IRT

BRANDSiemens

PRODUCT SERIESSCALANCE X-200IRT managed

OFFICIAL NAMESCALANCE X204IRT Managed Industrial Ethernet IRT Switch

PRODUCT ROLEFour-port managed PROFINET IRT switch

CONDITIONNew Original

WARRANTYOne year

IN STOCK2

OFFICIAL DATA SOURCESiemens SiePortal product record and technical data sheet

TECHNICAL
BLUEPRINT

PRODUCT POSITION

IRT switching node for deterministic PROFINET machine networks

Provides four copper Fast Ethernet connections, integrated management functions and redundant power input for time-critical industrial communication.

ORDERING CODE NOTE

6GK5204-0BA10-2BA3

The 0BA10-2BA3 suffix identifies the X204IRT managed IRT version with four RJ45 ports. Do not confuse it with X204-2 fiber variants or X204IRT PRO versions.

OFFICIAL TECHNICAL DATA8 verified points

PRODUCT TYPESCALANCE X204IRT

SWITCH CLASSManaged Industrial Ethernet IRT switch

COPPER PORTS4 × RJ45

PORT DATA RATE10/100 Mbit/s

PROFINET ROLEPROFINET IO device

POWER INPUTRedundant power supply

REDUNDANCY FUNCTIONRedundancy Manager integrated

CONFIGURATION MEDIUMC-PLUG optional

SYSTEM CONNECTION4 × RJ45 + redundant power input

IRT-capable switchingSupports time-critical communication in PROFINET automation networks.

Integrated redundancyA built-in Redundancy Manager supports resilient network structures.

Serviceable configurationAn optional C-PLUG can be fitted as the configuration medium.

APPLICATION MAP

Where X204IRT creates network value

Motion-control cellsDeterministic Ethernet coordination for distributed automation.

Production linesManaged PROFINET links between controllers and field devices.

Redundant networksIntegrated redundancy functions for higher machine availability.

Industrial diagnosticsNetwork management and error signaling support maintenance.
