PRODUCT DETAILS · SIEMENS

6ES7350-2AH01-0AE0

SIMATIC S7-300 FM 350-2 Counter Module

PRODUCT SERIES

SIMATIC S7-300

PRODUCT IDENTITY

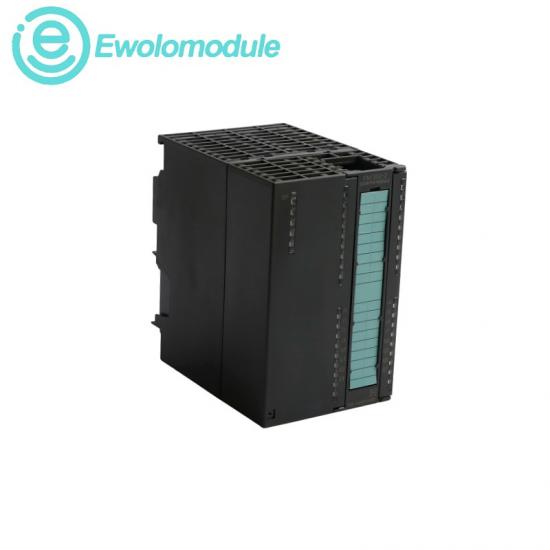

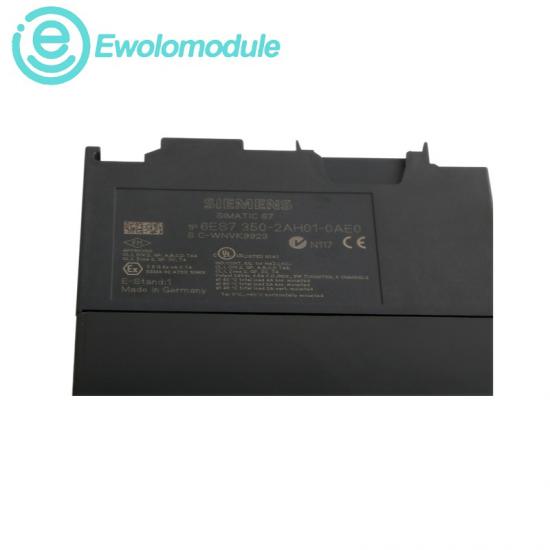

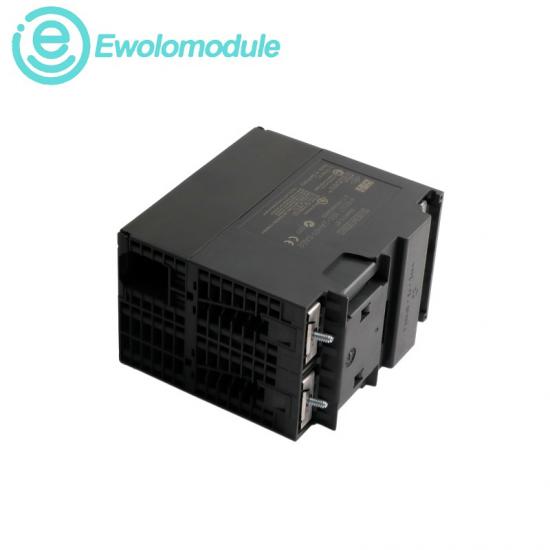

Siemens 6ES7350-2AH01-0AE0 SIMATIC S7-300 FM 350-2 Counter Module, 8 Channels, 20 kHz is an eight-channel function module for high-speed counting, frequency, speed, period and dosing tasks with 24 V and NAMUR encoders.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical configuration and compliance

PRODUCT DESCRIPTION

The FM 350-2 performs autonomous high-speed counting and measurement in S7-300 or ET 200M stations. Parameterized operating modes support frequency, speed, period and dosing functions, while integrated digital outputs enable rapid reactions independent of the CPU scan cycle.

CERTIFICATIONS & STANDARDS

◆ China RoHS conformity

◆ FM hazardous-location approval

◆ CCC-Ex conformity

◆ NK marine approval

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

FM 350-2

COUNTER CHANNELS

8 counters

COUNTER RANGE

32 bit / ±31 bit

MAXIMUM COUNT FREQUENCY

20 kHz; 10 kHz with incremental encoder

SUPPLY VOLTAGE

24 V DC; 20.4–28.8 V permissible

DIGITAL INPUTS

8 standard plus 8 NAMUR inputs

DIGITAL OUTPUTS

8 outputs, 0.5 A each

NAMUR SUPPLY

8.2 V ±2%; maximum 200 mA

INPUT DELAY

50 µs

FRONT CONNECTOR

40-pole

RECOMMAND · APPLICATION GUIDANCE

Operational guidance and related products

DIAGNOSTICS & PROTECTION

Diagnostic and hardware interrupts, the SF status LED, encoder monitoring and output short-circuit diagnostics support rapid fault localization during commissioning and operation.

OPERATING ENVIRONMENT

Operation is specified from 0 to +60 °C with horizontal mounting, with output-current derating above +40 °C, or 0 to +40 °C with vertical mounting.
