PRODUCT DETAILS

SIEMENS

ARTICLE NUMBER

6ES7407-0KA02-0AA0

Warranty: One year • Availability: In stock

OFFICIAL PRODUCT NAME

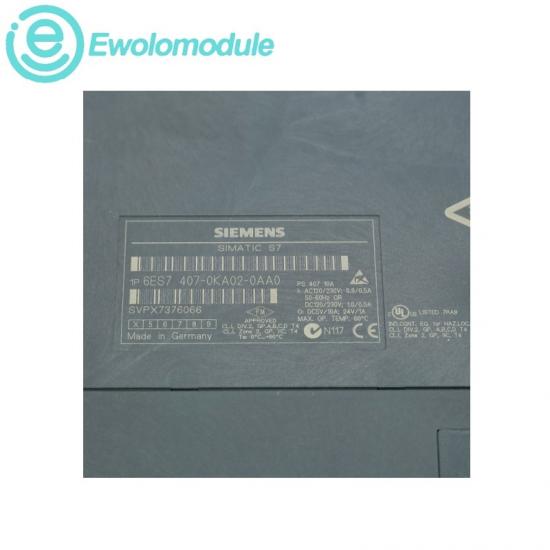

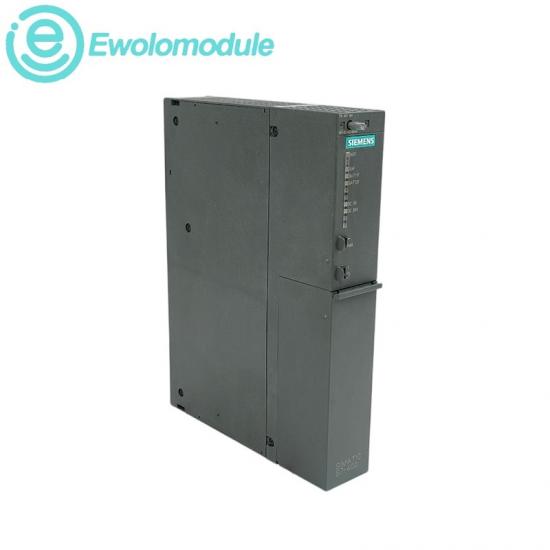

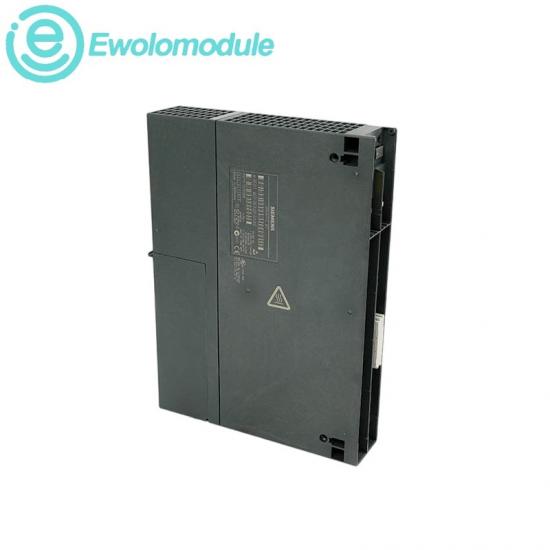

SIMATIC S7-400 PS 407 10 A Wide-Range Power Supply

Description: Wide-range rack power supply that converts 120/230 V AC or DC input into regulated 5 V DC and 24 V DC outputs for an S7-400 automation station.

Tel : +86 17359287459Email : sales9@apterpower.com

SPECIFICATIONS / OFFICIAL ENGINEERING DATA

POWER SUPPLY ENGINEERING PROFILE

The PS 407 supplies a SIMATIC S7-400 rack from a wide-range 120/230 V AC or DC source. It provides the regulated backplane and auxiliary voltages required by installed S7-400 modules, with mains buffering and integrated short-circuit protection.

OFFICIAL TECHNICAL DATA

Article number

6ES7407-0KA02-0AA0

Module type

PS 407 10 A

Input voltage

120 / 230 V AC or DC

Input frequency

47 to 63 Hz

Backplane output

5 V DC / 10 A

Auxiliary output

24 V DC / 1 A

Active power input

95 W typ.

Power loss

20 W typ.

Mains buffering

20 ms

Required slots

FIRMWARE UPDATE

Siemens documentation specifies the PS 407 as a hardware power-supply module; no user firmware update procedure is listed for this article number.

CONFIGURATION & PROGRAMMING

No STEP 7 parameterization is required for power-supply operation. Select the supported S7-400 rack position and keep the connected 5 V and 24 V loads within the documented ratings.

RECOMMAND

INSTALLATION & UPGRADE

Install the module in two S7-400 rack slots, connect the approved 120/230 V AC or DC supply and protective conductor, then verify the rack load and output indicators before commissioning or replacement.

APPLICATION SCENARIOS

Power distribution for S7-400 controller racks in manufacturing lines, process automation, utilities, material handling and other centralized industrial control systems.
