PRODUCT DETAILS · INDUSTRIAL ETHERNET

6GK5400-8AS00-8AP2

SCALANCE PE400-8SFP Port Extender

PRODUCT IDENTITY

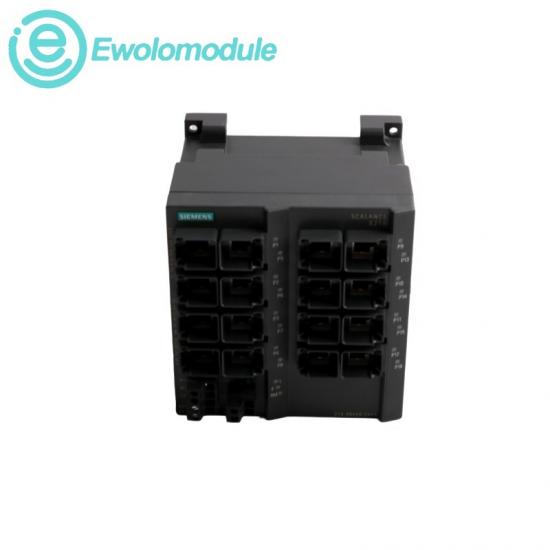

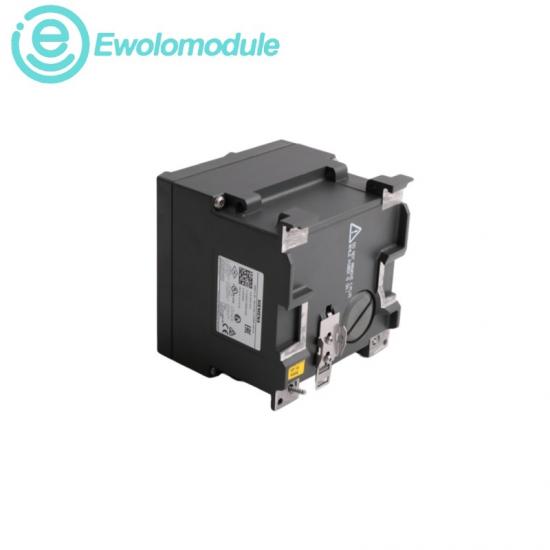

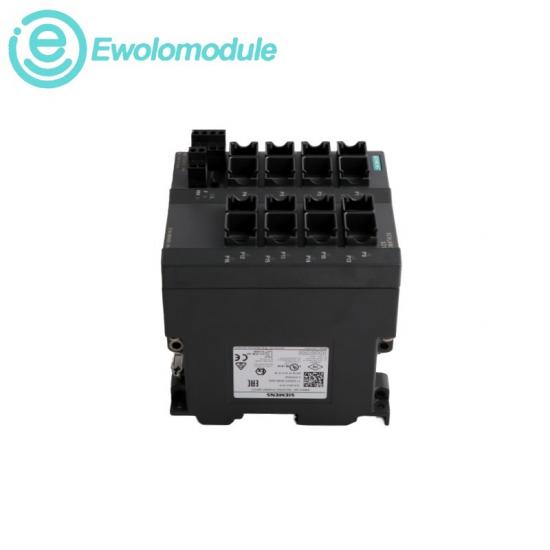

Siemens 6GK5400-8AS00-8AP2 SCALANCE PE400-8SFP Port Extender

A modular fiber-optic port extender that adds eight 100/1000 Mbit/s SFP interfaces to a compatible managed Industrial Ethernet switch.

Product series: SCALANCE XM-400 port extenders

☎ Tel: +86 17359287459

✉ Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Optical expansion and installation data

PRODUCT DESCRIPTION

The PE400-8SFP mounts beside a SCALANCE XM-400 basic device and expands the modular switch with eight plug-in optical transceiver positions. It receives power from the basic device; the selected Siemens SFP transceivers determine the optical medium and link reach.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

PE400-8SFP

PRODUCT FAMILY

SCALANCE XM-400

SFP SLOTS

8 × SFP, LC port

DATA RATE

100 / 1000 Mbit/s

POWER SUPPLY

From the basic device

CURRENT AT 24 V DC

70 mA; max. 210 mA

POWER LOSS

1.7 W; max. 5 W

DEGREE OF PROTECTION

IP20

OPERATING ≤ 2000 M

−40 °C to +60 °C

OPERATING ≤ 3000 M

−40 °C to +55 °C

DIAGNOSTICS & PROTECTION

◆ L1/L2 and port LEDs support local status checks

◆ IP20 protection requires a suitable control cabinet

◆ Operate only within the published temperature and humidity limits

INSTALLATION & UPGRADE

◆ Mount on a DIN rail, S7-300 rail or S7-1500 rail

◆ Fit beside the compatible XM-400 basic device

◆ Add approved SFP transceivers for the required optical link

RECOMMAND · APPLICATION GUIDANCE

Compliance and efficient optical expansion

SAFETY & COMPLIANCE

◆ IP20 equipment for protected industrial installation

◆ RoHS compliant according to the Siemens product record

◆ Follow Siemens mounting, connection and safety instructions

PERFORMANCE & EFFICIENCY

◆ Eight SFP slots expand optical capacity in one module

◆ 100/1000 Mbit/s supports Fast and Gigabit Ethernet links

◆ 1.7 W loss without SFP; maximum 5 W depending on transceivers
