SIEMENS · PRODUCT DETAILS

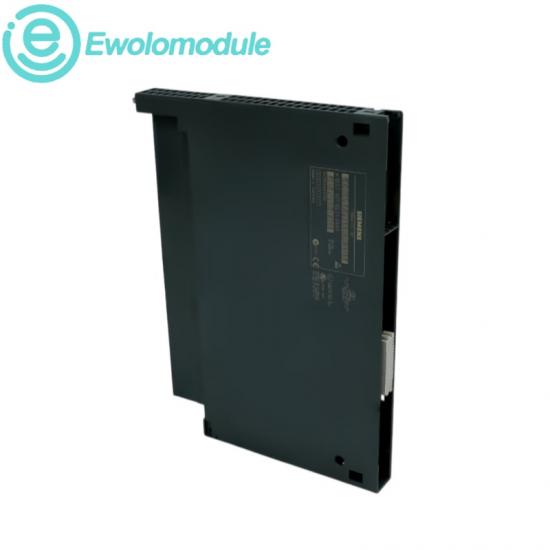

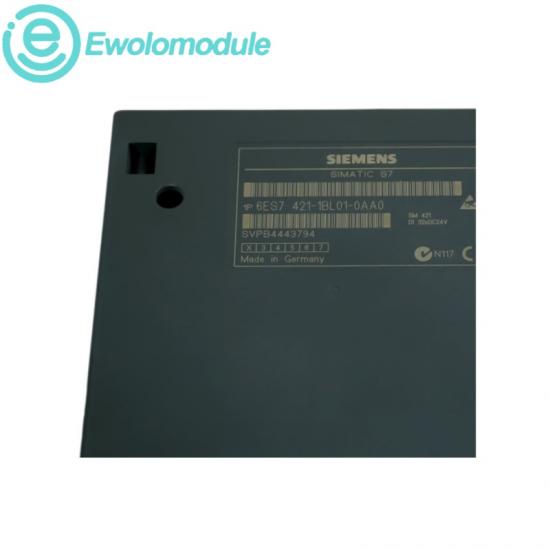

6ES7421-1BL01-0AA0

SIMATIC S7-400 SM 421 32DI 24V DC Digital Input Module

Condition
New Original

Warranty
One year

PRODUCT SNAPSHOT

The SM 421 provides thirty-two 24 V DC digital inputs for high-density S7-400 signal acquisition. Channels are electrically isolated from the backplane bus and include individual green status indication.

Long permissible cable lengths and support for two-wire sensors make the module suitable for large control cabinets, process plants and established rack-based automation systems.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

Explore Siemens →

PERFORMANCE & EFFICIENCY · APPLICATION SCENARIOS

Performance & efficiency

◆ Thirty-two inputs maximize discrete-signal density in one S7-400 slot.

◆ Type 1 IEC 61131 input characteristics support standard industrial sensors.

◆ Electrical isolation separates field channels from the backplane bus.

◆ Typical 6 W power loss supports defined thermal planning for rack systems.

Application scenarios

◆ High-density plant sensor acquisition.

◆ Process and utility rack-based control.

◆ Long-distance field wiring with shielded cable up to 1,000 m.

◆ S7-400 maintenance, expansion and lifecycle projects.

OFFICIAL TECHNICAL DATA

Product type SM 421 digital input	Digital inputs 32	Rated input voltage 24 V DC	Input characteristic IEC 61131 Type 1
Input delay 1.2 to 4.8 ms	Backplane current 20 mA max.	Power loss 6 W typical	Status display Green LED/channel

Technical data is based on Siemens documentation for 6ES7421-1BL01-0AA0.

Siemens brand characteristics

◆ Integrated engineering across SIMATIC controllers and distributed I/O.

◆ Documented module behavior supports structured service and commissioning.

◆ Defined product lifecycles help maintenance teams plan replacement stock.

◆ Broad automation coverage supports consistent system architectures.

Application fields

◆ Process plant monitoring.

◆ Large machine signal acquisition.

◆ Utility and infrastructure control.

◆ S7-400 lifecycle maintenance.
