PRODUCT DETAILS SIEMENS

ARTICLE NUMBER

6ES7322-1BH01-0AA0

NEW ORIGINAL

PRODUCT IDENTITY

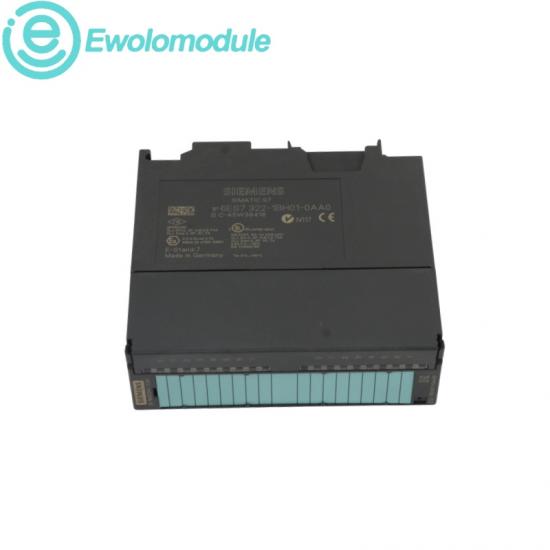

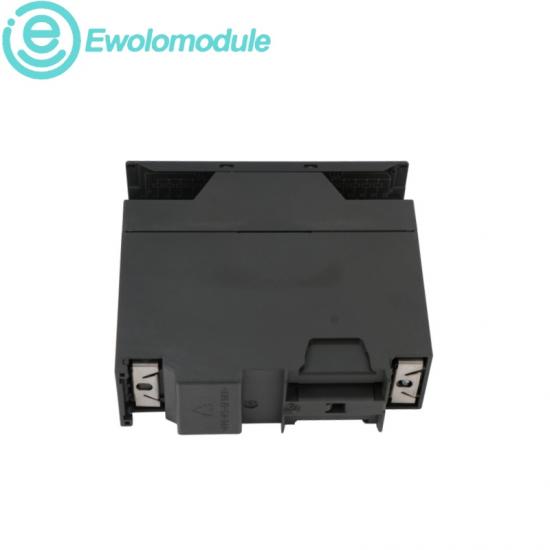

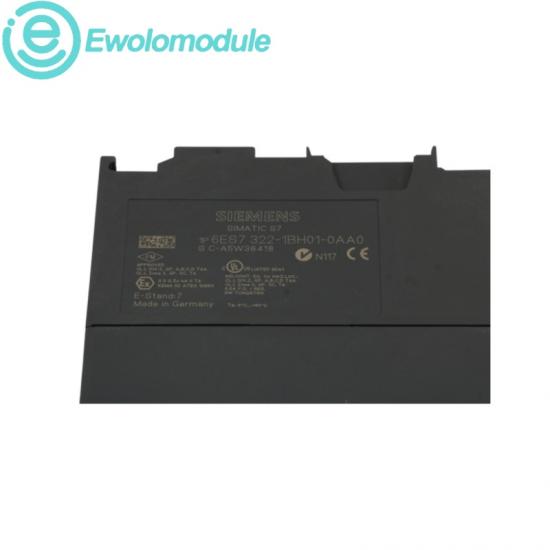

SIMATIC S7-300 Digital Output Module

Built for dependable actuator switching in modular controller cabinets, this signal module supports orderly field wiring, channel-level status visibility and controlled spare-part replacement.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

TECHNICAL PROFILE FIRMWARE · CONFIGURATION

DIGITAL OUTPUTS 16	LOAD VOLTAGE 24 V DC	RATED CURRENT 0.5 A	TOTAL CURRENT 8 A / module
CHANNEL GROUP 8 channels	CONNECTOR 1 × 20-pole	OUTPUT DELAY 100 / 500 µs	PROTECTION Electronic short circuit

FIRMWARE & UPDATES

This signal module has no separately loadable user firmware; service work should preserve the approved S7-300 hardware baseline.

Compare the installed hardware revision with the current Siemens data sheet before an order-code-specific replacement.

Archive the station project and document the original slot, supply grouping and field connections before removal.

CONFIGURATION & PROGRAMMING

Select the exact SM 322 order number in the STEP 7 hardware configuration.

Assign the sixteen output points to the intended process-image range and observe the stated group and module current limits.

Commission each load individually and confirm channel indication plus group-fault behavior before returning the plant to service.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ Siemens order codes identify the channel count, load voltage and current class required for exact replacement.	◆ Switching solenoid valves, contactors and indicator loads in machine automation.
◆ The modular S7-300 architecture supports documented slot assignment and controlled cabinet service.	◆ Retrofit and spare-part work in installed SIMATIC S7-300 controller cabinets.
◆ Electronic output protection and channel indication support dependable commissioning checks.	◆ Distributed process skids, utilities and infrastructure panels using 24 V DC actuators.
◆ Official S7-300 module data defines the electrical and connector limits for lifecycle verification.	◆ Maintenance replacement where established output addressing and front-connector wiring must be retained.

RECOMMENDED MODELS

Siemens

6ES7321-1FF01-0AA0	6ES7322-1BH01-0AA0	6ES7132-6BF00-0CA0	6ES7122-1BB10-0AA0
6ES7288-2DR16-0AA0	6ES5463-4UA12	6ES7222-1HF22-0XA8	6ES7288-5AE01-0AA0
6ES7131-6BH00-0BA0	6ES7321-1BL00-0AA0	6ES7321-1BH02-0AA0	6ES7322-1BL00-0AA0
6ES7131-6BH01-0BA0	6ES7132-6BF01-0CA0	6ES7288-1ST60-0AA0	6ES7288-1SR60-0AA0
6ES7223-1BH22-0XA8	6ES7953-8LF31-0AA0	6ES7331-7KF02-0AB0	6ES7332-5HD01-0AB0

Weidmüller

UR20-FBC-PN-IRT-V2	UR20-FBC-PB-DP-V2	UR20-FBC-EIP	UR20-FBC-MOD-TCP
UR20-16DI-P	UR20-16DO-P	UR20-8DI-P-3W	UR20-8DO-P
UR20-4DI-P	UR20-4DO-P	UR20-4AI-UI-16	UR20-4AO-UI-16
UR20-4AI-RTD-DIAG	UR20-4AI-TC-DIAG	UR20-PF-I	UR20-PF-O
UR20-EBK	UR20-1COM-RS232-485-422	UR20-2CNT-100	UR20-4DI-4DO-P

QUOTE & SERVICE POLICY

01 · IDENTIFY
Send the complete article number and required quantity.

02 · VERIFY
Confirm the installed revision, voltage and connector.

03 · QUOTE
Request price, condition and available stock.

04 · DISPATCH
Confirm packing requirements and shipment details.

This website is not affiliated with, endorsed by, or authorized by any of the listed manufacturers or trademarks.

Ewolomodule is not an authorized distributor, dealer, or representative of the products displayed on this website.

All product names, trademarks, brands, and logos used on this website are the property of their respective owners.

The description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder.
