PRODUCT DETAILS SIEMENS

ARTICLE NUMBER

6ES7132-6BF00-0CA0

NEW ORIGINAL

PRODUCT IDENTITY

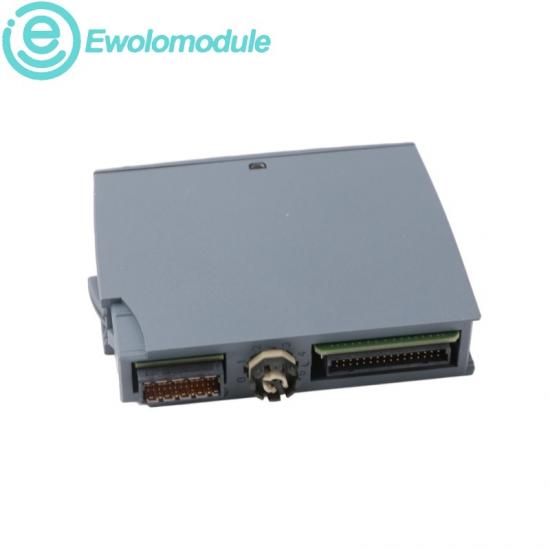

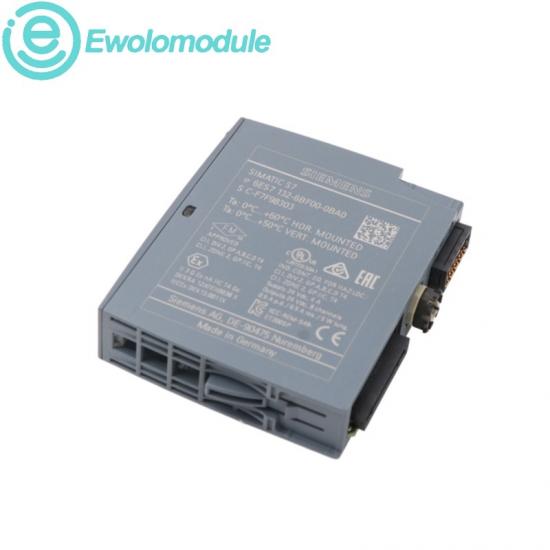

SIMATIC ET 200SP High-Feature Digital Output Module

Designed for compact distributed control stations, this high-feature output module combines precise channel switching with useful diagnostic support and structured BaseUnit installation.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

TECHNICAL PROFILE FIRMWARE · CONFIGURATION

DIGITAL OUTPUTS 8	RATED VOLTAGE 24 V DC	OUTPUT CURRENT 0.5 A	OUTPUT TYPE P-switching
FUNCTION CLASS High Feature	BASEUNIT TYPE A0	DIAGNOSTICS Short circuit / wire break	ISOLATION TEST 707 V DC

FIRMWARE & UPDATES

Firmware updating is supported for this module; use only the compatible Siemens package and approved station maintenance procedure.

The documented hardware baseline includes TIA Portal V13 SP1 and later engineering support for the exact order number.

Back up the ET 200SP station configuration and verify the hardware revision before applying an update or replacement.

CONFIGURATION & PROGRAMMING

Select DQ 8x24VDC/0.5A HF with the matching order number in the hardware catalog.

Install it on a suitable BaseUnit type A0, then parameterize supply-voltage, short-circuit and wire-break diagnostics as required.

Verify channel assignment, substitution behavior and the station diagnostic buffer during commissioning.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ The ET 200SP platform combines compact module width with standardized BaseUnits and clear color coding.	◆ Compact machine-control cabinets requiring eight protected 24 V DC outputs.
◆ High-feature diagnostics support faster fault localization in distributed I/O stations.	◆ Distributed actuator switching in packaging, conveying and assembly systems.
◆ Order-code-specific hardware catalog entries simplify controlled lifecycle replacement.	◆ Process skids that benefit from supply, short-circuit and wire-break diagnostic information.
◆ Siemens engineering documentation coordinates module, BaseUnit and firmware compatibility.	◆ Service replacement in installed ET 200SP stations using the corresponding BaseUnit.
