PRODUCT DETAILS SIEMENS

ARTICLE NUMBER

6ES7122-1BB10-0AA0

NEW ORIGINAL

PRODUCT IDENTITY

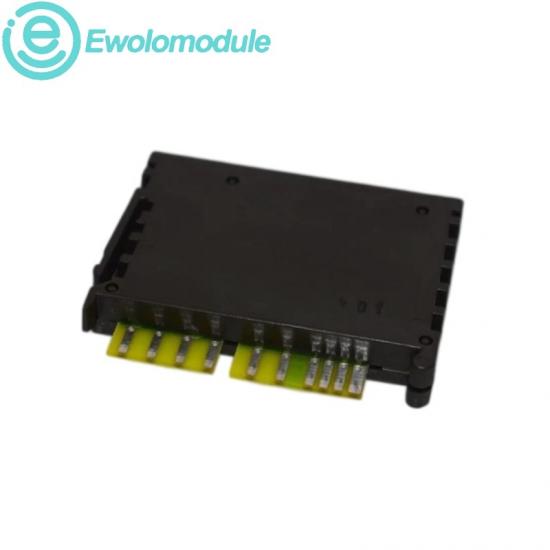

SIMATIC DP ET 200SC Digital Output Module

This narrow electronic module provides a straightforward output stage for compact ET 200SC assemblies, supporting clear channel assignment and space-efficient service replacement.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

TECHNICAL PROFILE FIRMWARE · CONFIGURATION

DIGITAL OUTPUTS 2	RATED VOLTAGE 24 V DC	OUTPUT CURRENT 2 A	TOTAL CURRENT 3 A at 40 °C
OUTPUT DELAY 200 µs / 1.3 ms	RESISTIVE RATE 100 Hz max.	DIAGNOSTICS None	ISOLATION TEST 1500 V AC

FIRMWARE & UPDATES

The electronic module has no separately loadable user firmware; preserve the installed ET 200SC station documentation.

Confirm the exact order number and revision before replacement because output class and terminal assignment are hardware-specific.

Record the active station configuration and field-terminal mapping before power-down.

CONFIGURATION & PROGRAMMING

Configure the matching ET 200SC electronic module in the distributed I/O station.

Retain the assigned two-output process-image range and verify the terminal-module wiring before insertion.

Test each actuator under controlled conditions and observe the aggregate-current limit for the installed orientation and temperature.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ The ET 200SC concept separates field termination from replaceable electronic modules for orderly servicing.	◆ Two-channel switching of valves, relays and small DC actuators near the machine.
◆ Compact module construction supports dense distributed I/O assemblies.	◆ Space-constrained ET 200SC remote-I/O stations in production equipment.
◆ Siemens order coding distinguishes output class and exact electrical behavior.	◆ Legacy distributed-control panels requiring the original terminal and address assignment.
◆ Official module documentation provides the limits needed for controlled legacy replacement.	◆ Planned spare-part replacement where established field wiring should remain undisturbed.
