PRODUCT DETAILS SIEMENS

ARTICLE NUMBER

6ES7288-2DR16-0AA0

NEW ORIGINAL

PRODUCT IDENTITY

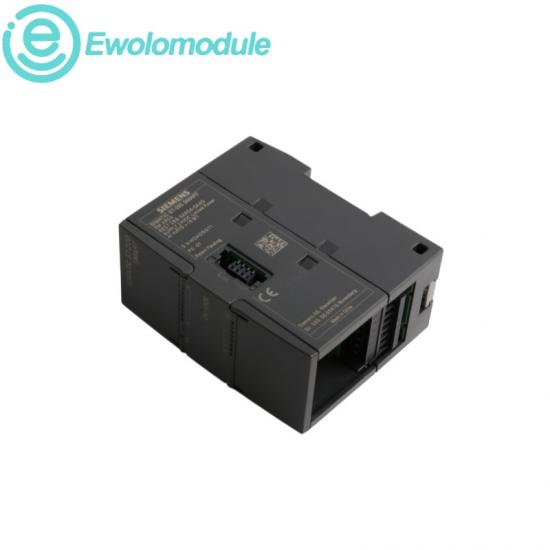

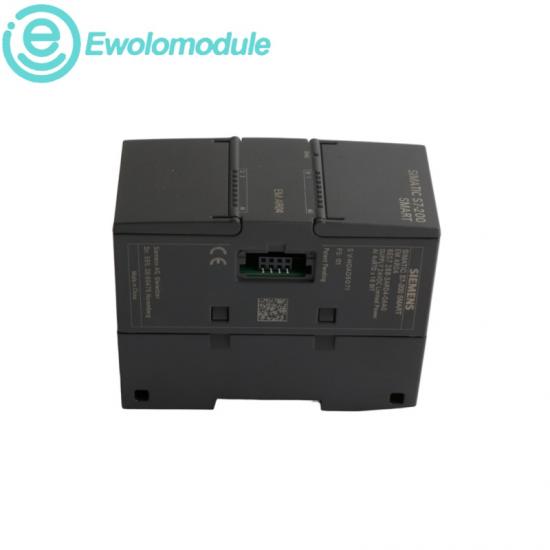

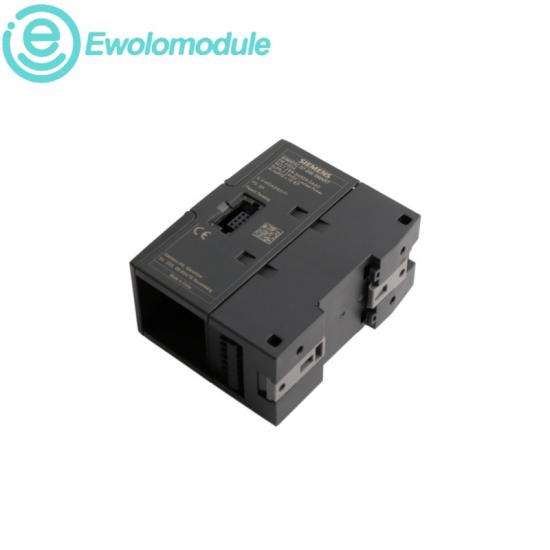

SIMATIC S7-200 SMART Digital Expansion Module

Created for compact automation projects, this mixed digital expansion module adds field-status acquisition and relay-based load control while keeping cabinet planning and service work straightforward.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

TECHNICAL PROFILE FIRMWARE · CONFIGURATION

DIGITAL INPUTS 8	RELAY OUTPUTS 8	RATED INPUT 24 V DC	INPUT CURRENT 4 mA
RELAY COIL 24 V DC	BACKPLANE CURRENT 145 mA	POWER LOSS 5.5 W	INPUT STANDARD IEC Type 1

FIRMWARE & UPDATES

Module operation follows the supported S7-200 SMART CPU and engineering baseline; maintain the controller firmware recommended for the project.

Back up the STEP 7-Micro/WIN SMART project before any controller firmware or hardware change.

After maintenance, verify that the expansion module is recognized and that the configured I/O map is unchanged.

CONFIGURATION & PROGRAMMING

Add EM DR16 to the expansion chain in STEP 7-Micro/WIN SMART using the exact article number.

Confirm automatically assigned input and output addresses, then map all field points in the user program.

Check the CPU expansion-power budget and test the relay loads with the required external protective circuits.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ S7-200 SMART modules combine compact mechanical design with straightforward Micro/WIN engineering.	◆ Compact packaging, conveying and material-handling machines.
◆ Mixed-input/output expansion reduces panel space where both sensing and switching are required.	◆ Small pump, fan and utility panels requiring sensor inputs plus relay control.
◆ Relay outputs provide flexible switching for approved AC or DC field loads.	◆ OEM control cabinets based on SIMATIC S7-200 SMART CPUs.
◆ Siemens system manuals coordinate module power, addressing and controller compatibility.	◆ Maintenance expansion or replacement where the established SMART I/O map must be retained.
