PRODUCT DETAILS SIEMENS

ARTICLE NUMBER

6ES5463-4UA12

NEW ORIGINAL

PRODUCT IDENTITY

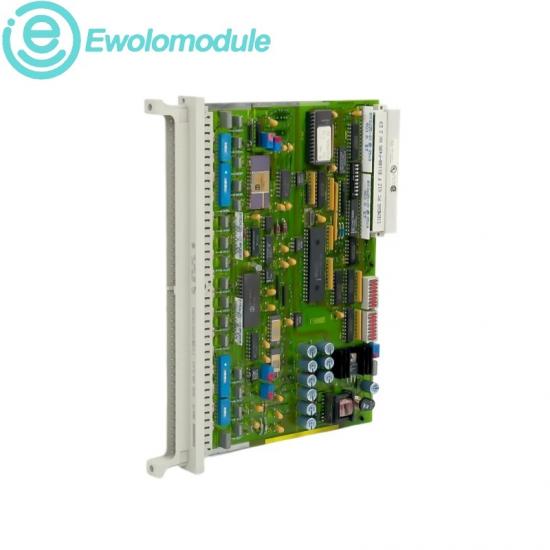

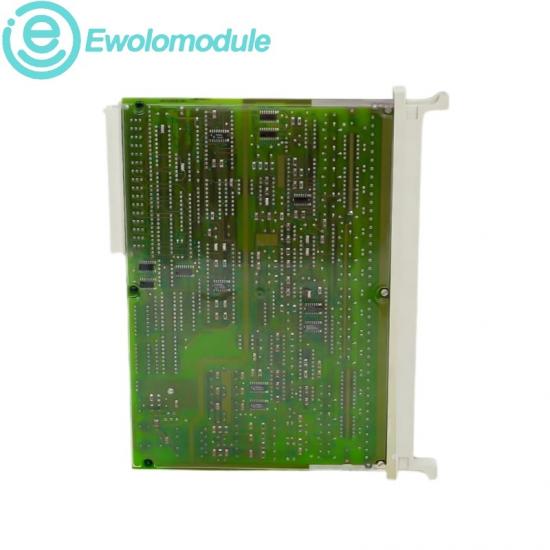

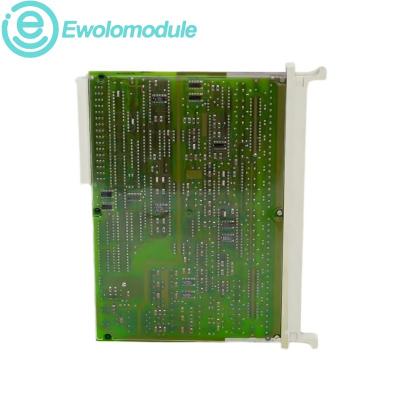

SIMATIC S5 Floating Analog Input Module

Engineered for legacy process measurement, this floating analog input module accepts selectable voltage and current ranges while maintaining channel separation for established S5 control installations.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

TECHNICAL PROFILE FIRMWARE · CONFIGURATION

ANALOG INPUTS 4	INPUT DESIGN Floating	VOLTAGE RANGE ±1 V / ±10 V	CURRENT RANGE ±20 mA
PROCESS RANGE 4–20 mA	CHANNEL REFERENCE Individually isolated	POWER VERSION 50 Hz systems	MODULE FORM Compact U version

FIRMWARE & UPDATES

This hardware-generation analog module has no user-loadable firmware; maintain the approved SIMATIC S5 system documentation.

Before replacement, record the fitted range selections, wiring assignment and rack position.

Use the original Siemens instruction set to verify the order suffix and 50 Hz system variant.

CONFIGURATION & PROGRAMMING

Configure the module according to the documented S5 U-periphery hardware plan and installed STEP 5 project.

Match each channel to its approved voltage or current range before reconnecting the field transducer.

After insertion, compare live analog values with known references and confirm channel separation and scaling in the control program.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ SIMATIC S5 modular hardware supported long-life industrial control systems with clearly defined order variants.	◆ Legacy process plants using SIMATIC S5 analog measurement hardware.
◆ Floating analog channels support separated process measurements in established installations.	◆ Acquisition of isolated voltage and current signals from industrial transmitters.
◆ Compact U-periphery construction follows documented rack and wiring conventions.	◆ Maintenance of long-running S5 U-periphery control cabinets.
◆ Siemens legacy manuals remain essential for exact range, suffix and replacement verification.	◆ Order-code-specific spare replacement where the original range and wiring plan must be preserved.
