PRODUCT DETAILS SIEMENS

ARTICLE NUMBER

6ES7222-1HF22-0XA8

NEW ORIGINAL

PRODUCT IDENTITY

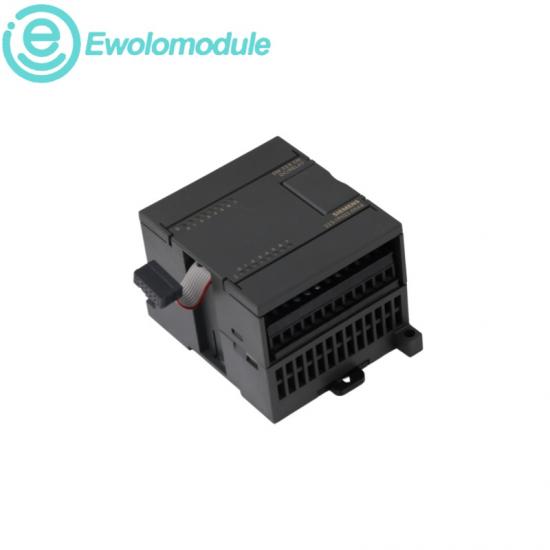

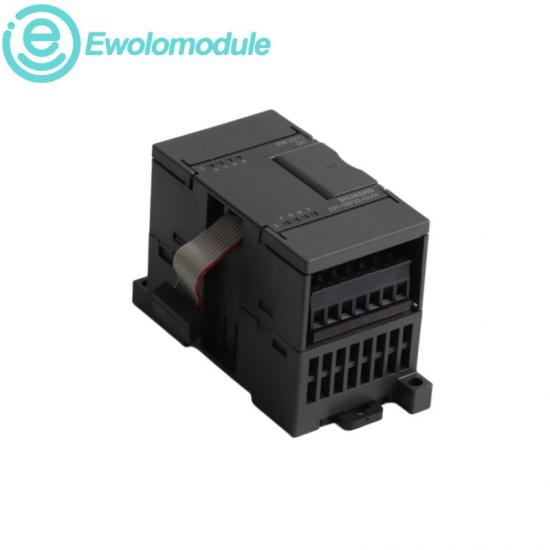

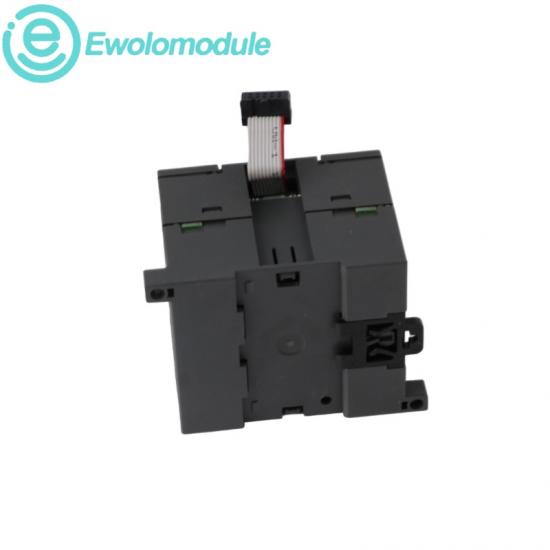

SIMATIC S7-200 CN Digital Output Module

Designed for compact S7-200 CN installations, this relay expansion module adds flexible load switching while preserving the familiar address structure and service workflow of the original controller family.

WARRANTY

One year

AVAILABILITY

In stock

TEL

+86 17359287459

sales9@apterpower.com

TECHNICAL PROFILE FIRMWARE · CONFIGURATION

DIGITAL OUTPUTS 8	OUTPUT TYPE Relay	RATED CURRENT 2 A	CPU COMPATIBILITY S7-22X only
APPROVAL SCOPE CE only	POWER LOSS 2 W	ISOLATION GROUPS 4	SHIELDED CABLE 500 m max.

FIRMWARE & UPDATES

The expansion module has no separate user-loadable firmware; its operation depends on the supported S7-200 CPU and project baseline.

Back up the STEP 7-Micro/WIN project and record the installed CPU revision before maintenance.

Confirm the exact CN order suffix when sourcing a replacement because regional variants are order-code specific.

CONFIGURATION & PROGRAMMING

Add EM 222 with the exact relay-output variant in the S7-200 hardware configuration.

Retain the assigned output address range and verify relay-group common wiring before energizing the loads.

Commission each circuit with suitable external protection and confirm that connected loads remain within the relay ratings.

BRAND & APPLICATIONS

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆ S7-200 expansion modules provide a compact and familiar architecture for established micro-automation systems.	◆ Small machine panels using installed SIMATIC S7-200 CN controllers.
◆ Relay outputs support approved AC or DC load switching without solid-state leakage behavior.	◆ Relay switching for contactors, valves, lamps and auxiliary circuits.
◆ Regional CN order coding distinguishes the intended market and hardware baseline.	◆ Service replacement in legacy OEM equipment with fixed output addressing.
◆ Siemens technical documentation defines CPU, address and electrical compatibility for lifecycle service.	◆ Spare-parts programs that must retain the original S7-22X expansion architecture.
