PRODUCT DETAILS · SIEMENS SIMATIC S7-400

6ES7431-0HH00-0AB0

SM 431 Analog Input Module

PRODUCT IDENTITY

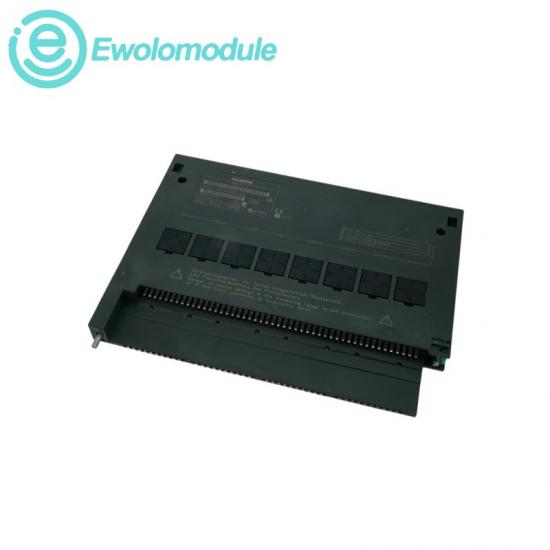

Siemens 6ES7431-0HH00-0AB0 SIMATIC S7-400 SM 431 Analog Input Module is a 16-channel, non-isolated analog input module with 13-bit resolution for voltage and current signals in S7-400 automation systems.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Signal performance and compliance

PRODUCT DESCRIPTION

The SM 431 converts sixteen voltage or current process signals into digital values for the S7-400 controller. Measurement ranges are parameterized in STEP 7, allowing different supported voltage and current ranges to operate in parallel. A 24 V DC load supply is only required when the module supplies connected two-wire transmitters.

CERTIFICATIONS & STANDARDS

◆ EMC conformity / approval

◆ FM hazardous-location approval

◆ Type-examination certificate

◆ Maritime approvals: NK and CCS

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION SM 431 analog input	ANALOG INPUTS 16 voltage/current channels
RESOLUTION Maximum 13 bit	CHANNEL ISOLATION Non-isolated
VOLTAGE RANGES 1–5 V, ±1 V, ±10 V	CURRENT RANGES ±20 mA and 4–20 mA
LOAD SUPPLY 24 V DC for 2-wire transmitters	BACKPLANE CURRENT Maximum 100 mA at 5 V DC
CONVERSION TIME 55/65 ms per channel	SHIELDED CABLE LENGTH Maximum 200 m

RECOMMAND · APPLICATION GUIDANCE

Operational checks and related models

DIAGNOSTICS & PROTECTION

Check measuring-range parameters, channel wiring, 24 V transmitter supply and input overrange conditions before replacing the module.

OPERATING ENVIRONMENT

Mount in a SIMATIC S7-400 rack with correct shielding and grounding; keep analog signal cables separated from interference sources.

Identification and verification support

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
