PRODUCT DETAILS · SIEMENS SINAMICS S210

6SL3210-5HE10-8UF0

SINAMICS S210 Servo Converter

PRODUCT IDENTITY

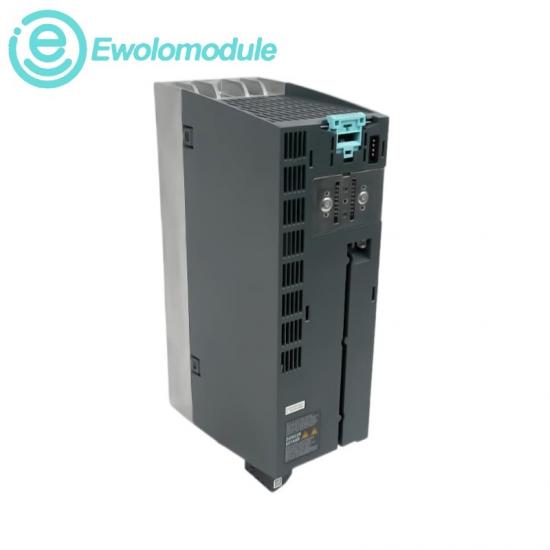

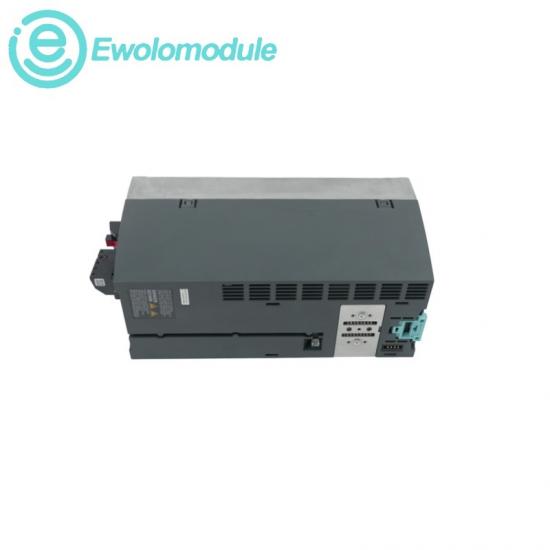

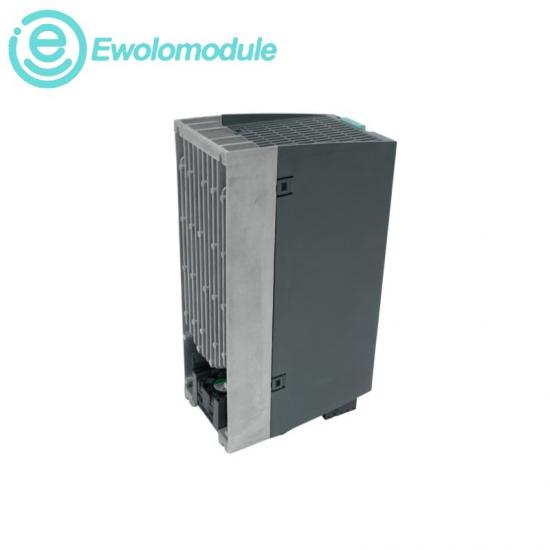

Siemens 6SL3210-5HE10-8UF0 SINAMICS S210 Servo Converter is a compact single-axis servo converter rated 0.75 kW at 400 V, with PROFINET communication and IP20 protection.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Signal performance and compliance

PRODUCT DESCRIPTION

This compact single-axis converter combines the infeed and motor control functions required for high-dynamic servo applications. It supplies SIMOTICS S-1FK2 or S-1FT2 motors, communicates over PROFINET RT/IRT and PROFIsafe, and supports DC-link coupling between compatible three-phase S210 converters for exchanging braking energy across axes.

CERTIFICATIONS & STANDARDS

◆ CE · Low-voltage Directive 2006/95/EC

◆ cULus compliance

◆ SIL 2 · IEC 61508 and IEC 61800-5-2

◆ PL d / Category 3 · ISO 13849-1

OFFICIAL TECHNICAL DATA

INPUT SUPPLY 3 AC 200–480 V ±10%	LINE FREQUENCY 45–66 Hz
INPUT CURRENT 2.8 A rated; 4.3 A inrush	RATED MOTOR POWER 0.75 kW at 400 V; 0.45 kW at 240 V
OUTPUT CURRENT 2.3 A rated; 7.6 A maximum	OUTPUT FREQUENCY 0–550 Hz; 8 kHz pulse frequency
ELECTRONICS SUPPLY 24 V DC −15%…+20%; max. 1.0 A	DIGITAL INPUTS 5 standard DI plus 1 fail-safe DI
COMMUNICATION PROFINET	PROTECTION / AMBIENT IP20; 0–50 °C operation

RECOMMAND · APPLICATION GUIDANCE

Operational checks and related models

DIAGNOSTICS & PROTECTION

The integrated web server and Startdrive support commissioning, monitoring and data backup; PROFINET port LEDs indicate link and data activity.

OPERATING ENVIRONMENT

Operate at 0 to 50 °C without derating and up to 95% relative humidity without condensation; install the IP20 / UL open-type unit in a suitable control cabinet.

Identification and verification support

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
