PRODUCT DETAILS · SIEMENS SIPLUS S7-1500

6AG1542-5DX00-7XE0

CM 1542-5 PROFIBUS Communication Module

PRODUCT IDENTITY

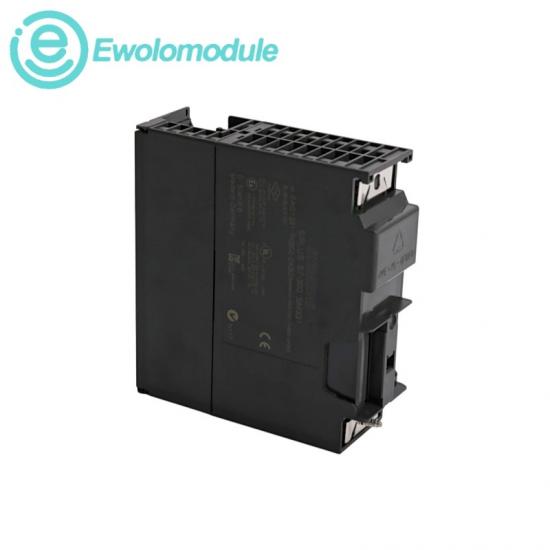

Siemens 6AG1542-5DX00-7XE0 SIPLUS S7-1500 CM 1542-5 PROFIBUS Module is a conformal-coated communication module for connecting S7-1500 systems to PROFIBUS DP as master or device in demanding environments.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Signal performance and compliance

PRODUCT DESCRIPTION

Based on the 6GK7542-5DX00-0XE0 with conformal coating, the CM 1542-5 connects an S7-1500 station to PROFIBUS DP. It supports DP master and DP device operation, S7 and PG/OP communication, time-of-day synchronization and diagnostics across an extended SIPLUS temperature range.

CERTIFICATIONS & STANDARDS

◆ UL general product approval

◆ ATEX hazardous-location approval

◆ IECEx hazardous-location approval

◆ DNV maritime approval

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION SIPLUS S7-1500 NET CM 1542-5	PROFIBUS RATE 9.6 kbit/s–12 Mbit/s
PROFIBUS INTERFACE 1 × 9-pin Sub-D RS485	BACKPLANE SUPPLY 15 V DC ±3%
CURRENT / POWER LOSS 0.2 A typical; 3 W	DP MASTER CAPACITY Up to 125 DP devices
MASTER ADDRESS SPACE 8192 bytes input and 8192 bytes output	DP DEVICE DATA 240 bytes input and 240 bytes output
COMMUNICATION CONNECTIONS 30 open; up to 48 S7/multiprotocol	PROTECTION / ALTITUDE IP20; up to 5000 m

RECOMMAND · APPLICATION GUIDANCE

Operational checks and related models

DIAGNOSTICS & PROTECTION

Web-based diagnostics through the S7-1500 CPU and I&M0/I&M1 records support device identification, location tracking and communication fault isolation.

OPERATING ENVIRONMENT

Conformal coating supports -40 to +70 °C operation in horizontal mounting; retain supplied covers on unused interfaces in harsh industrial environments.
