PRODUCT DETAILS · SIEMENS SIMATIC DP

6ES7972-4AA02-0XA0

Power Rail Booster Signal Amplifier

PRODUCT IDENTITY

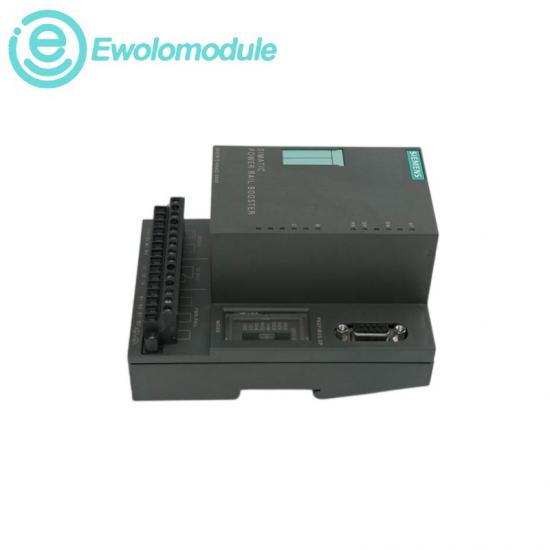

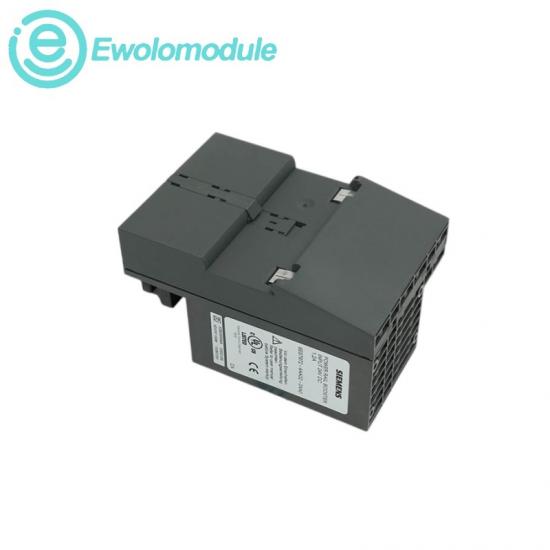

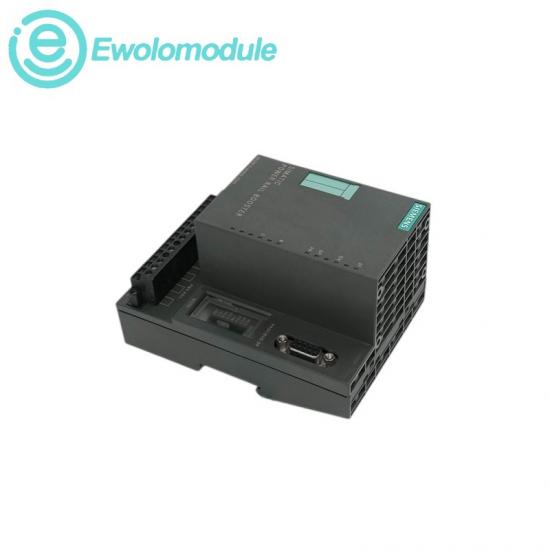

Siemens 6ES7972-4AA02-0XA0 SIMATIC DP Power Rail Booster is a signal amplifier for transmitting PROFIBUS DP over sliding contacts at data rates up to 500 kbit/s.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Signal performance and compliance

PRODUCT DESCRIPTION

The Power Rail Booster transfers electrical PROFIBUS communication across sliding contacts, conductor rails, cable loops or other suitable non-PROFIBUS cables. It forwards PROFIBUS DP, FMS, FDL and MPI transparently without occupying a bus address, supports line or star arrangements and permits up to ten cascaded booster links.

CERTIFICATIONS & STANDARDS

◆ CE · EMC and Low-voltage Directives

◆ UL approval · file NRAQ.E120869

◆ EN 61000-6-4:2001 industrial emissions

◆ EN 61000-6-2:1999 industrial immunity

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION SIMATIC DP Power Rail Booster	SUPPLY VOLTAGE 20.4–28.8 V DC; 24 V typical
CURRENT CONSUMPTION Maximum 1.2 A	INRUSH / POWER LOSS 20 A maximum; 20 W maximum
SUPPORTED DATA RATES 9.6–500 kbit/s; automatic recognition	SIGNAL DELAY ≤6 bit times; ±0.1% timing accuracy
SEGMENT LENGTH 25 m at 500 kbit/s; up to 1200 m at 9.6 kbit/s	NODES PER SEGMENT Up to 125
INTERFACES 9-pin Sub-D and 15-pin terminal block	PROTECTION / AMBIENT IP20; 0–60 °C preferred mounting

RECOMMAND · APPLICATION GUIDANCE

Operational checks and related models

DIAGNOSTICS & PROTECTION

Verify the automatically detected baud rate, PROFIBUS-side termination and Power Rail signal path when diagnosing communication faults.

OPERATING ENVIRONMENT

Use the preferred mounting position for 0 to 60 °C operation; alternative mounting is rated to 45 °C, with relative humidity below 95% and no condensation.
