PRODUCT DETAILS · SIEMENS SINAMICS S120

6SL3040-1LA00-0AA0

CU310-2 DP Control Unit

PRODUCT IDENTITY

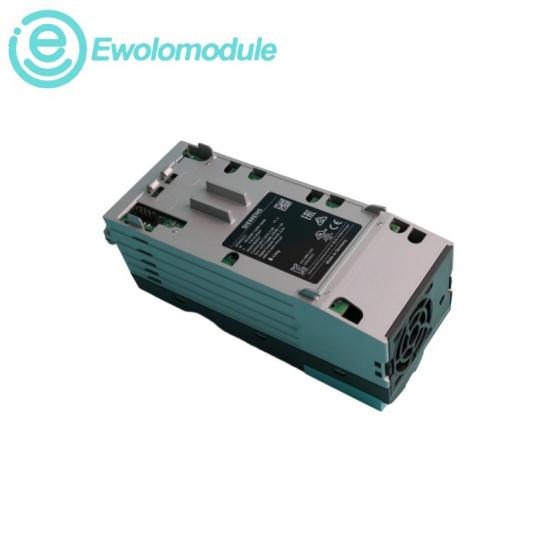

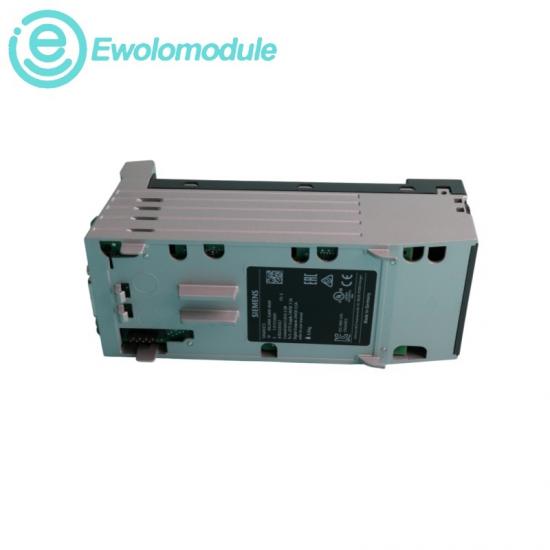

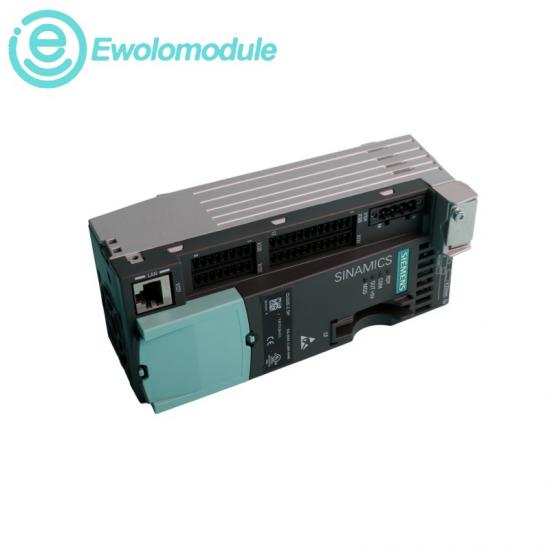

Siemens 6SL3040-1LA00-0AA0 SINAMICS S120 CU310-2 DP Control Unit is a single-drive control unit with PROFIBUS DP for open- and closed-loop control of one drive, supplied without a CompactFlash card.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Signal performance and compliance

PRODUCT DESCRIPTION

The CU310-2 DP performs open- and closed-loop control for a single SINAMICS drive and connects the drive to a higher-level controller through PROFIBUS DP. It provides DRIVE-CLiQ, Ethernet, encoder and temperature-sensor interfaces together with digital and analog I/O for commissioning, control and monitoring; this article is supplied without a CompactFlash card.

CERTIFICATIONS & STANDARDS

◆ CE conformity

◆ cULus approval

◆ KC conformity

◆ EAC conformity

OFFICIAL TECHNICAL DATA

ELECTRONICS SUPPLY 24 V DC; 20.4–28.8 V	CURRENT / POWER LOSS 0.8 A max.; 20 W max.
COMMUNICATION PROFIBUS DP	DRIVE INTERFACE 1 × DRIVE-CLiQ
DIGITAL INPUTS 11 isolated DI	BIDIRECTIONAL I/O 8 non-isolated DI/DO
DIGITAL OUTPUT LOAD 500 mA per output; short-circuit proof	ANALOG INPUT ±10 V or ±20 mA
ENCODER INTERFACE TTL / HTL / SSI; up to 300 kHz	SSI DATA 100–1000 kbit/s; 30-bit position

RECOMMAND · APPLICATION GUIDANCE

Operational checks and related models

DIAGNOSTICS & PROTECTION

RUN-ready and communication LEDs indicate power, commissioning, DRIVE-CLiQ and PROFIBUS states to help isolate configuration or bus faults.

OPERATING ENVIRONMENT

Specified for operation from 0 to 55 °C and installation altitudes up to 2000 m; transport temperature is -40 to +70 °C.

Identification and verification support

SERVICE PROCESS

Identify

Confirm the complete model and installed configuration.

Verify

Check revision, condition and compatibility details.
