Product Details

Official product profile

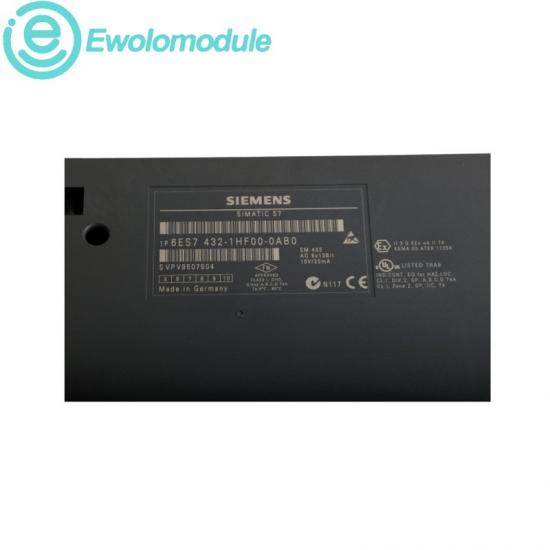

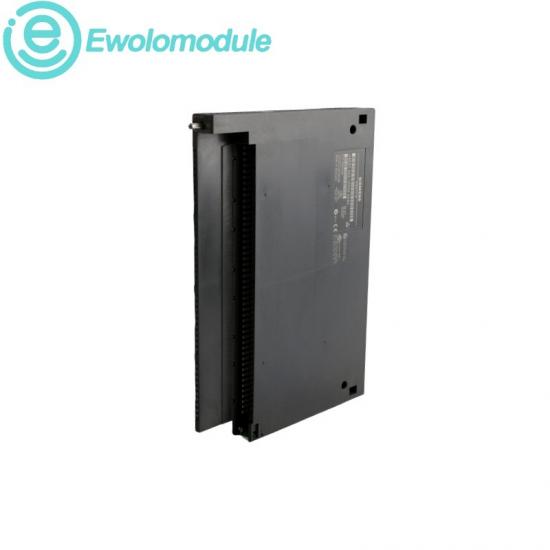

6ES7432-1HF00-0AB0

SIMATIC S7-400 SM 432 Analog Output Module

Description

Isolated eight-channel analog output module for voltage and current signals in SIMATIC S7-400 systems.

WarrantyOne year

AvailabilityIn stock

Related models on Ewolomodule

6ES7351-1AH01-0AE0 6ES7467-5FJ00-0AB0 6ES7315-2EG10-0AB0

Specifications / S7-400 analog output

DATASM 432 official engineering profile

Official technical data

Product type

SM 432 analog output

Analog outputs

Resolution

13 bit including sign

Load voltage

24 V DC

Voltage ranges

0 to 10 V; 1 to 5 V; ±10 V

Current ranges

0 to 20 mA; 4 to 20 mA; ±20 mA

Current-output load

500 Ω maximum

Shielded cable length

200 m maximum

Conversion time

300 or 420 µs per channel

Channel isolation

To backplane bus and load voltage

Product positioning

Analog actuator interface for eight voltage or current output channels in SIMATIC S7-400 stations.

Suffix meaning

Siemens identifies this configuration by the complete article number; no official segment-by-segment suffix key is published.

System relationship

Operates as an SM 432 signal module in a SIMATIC S7-400 central or expansion rack and is parameterized in STEP 7.

Recommand / Application and replacement

Application overview

Process control

Analog valve and actuator command signals.

Manufacturing

Speed and setpoint outputs for equipment.

Utilities

Multi-channel analog control tasks.

Installation

Insert in an approved S7-400 rack slot, connect the 24 V DC load supply and parameterize each output range in STEP 7.

Upgrade path

Preserve the configured voltage/current ranges, wiring and rack assignment when replacing the phased-out module.
