PRODUCT DETAILS · INDUSTRIAL AUTOMATION

6ES7450-1AP00-0AE0

SIMATIC S7-400 FM 450-1 Counter Function Module

PRODUCT IDENTITY

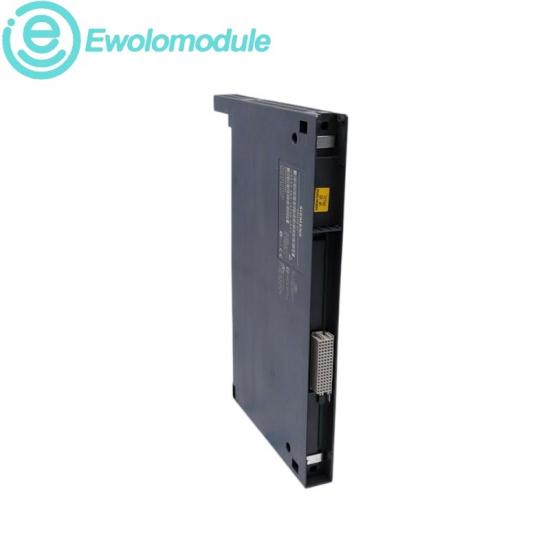

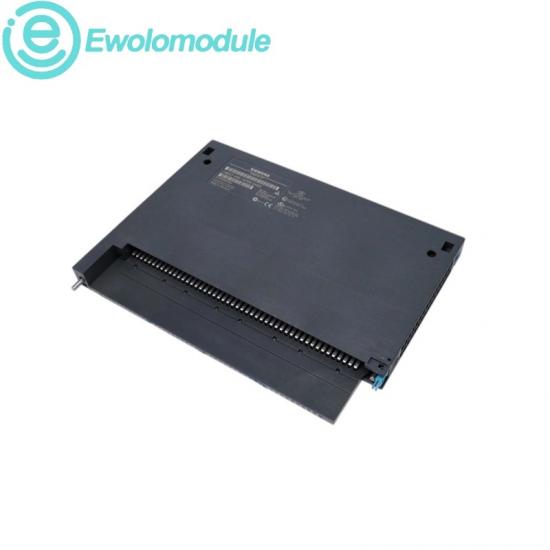

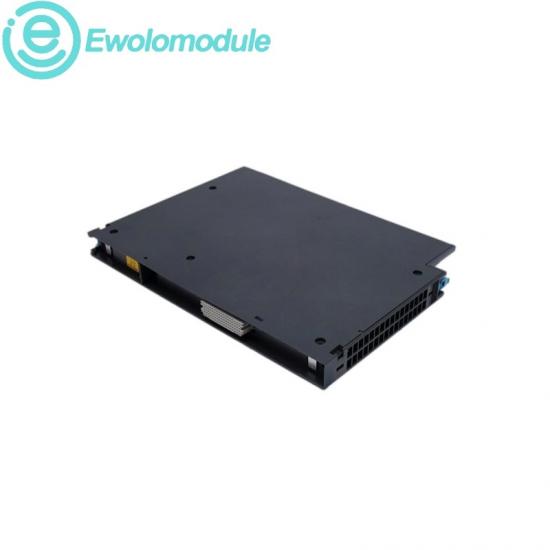

Siemens 6ES7450-1AP00-0AE0 SIMATIC S7-400 FM 450-1 Counter Function Module

A two-channel function module for high-speed counting and measurement tasks in S7-400 automation systems.

Product series: SIMATIC S7-400 FM 450-1

☎ Tel: +86 17359287459

✉ Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration, diagnostics and installation

PRODUCT DESCRIPTION

The FM 450-1 processes two independent counter channels separately from the CPU cycle. It acquires incremental encoder or pulse signals, supports counting and measurement functions, and exchanges parameters, control commands and results with the S7-400 CPU through the backplane bus.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

FM 450-1

AUTOMATION SYSTEM

SIMATIC S7-400

COUNTER CHANNELS

2 independent channels

MAXIMUM FREQUENCY

500 kHz

ENCODER SIGNALS

5 V differential or 24 V

FUNCTIONS

Counting and measuring

ENGINEERING

STEP 7 configuration

LOAD SUPPLY

24 V DC

DIAGNOSTICS & PROTECTION

◆ Channel and module LEDs support local status checks

◆ Diagnostic information is evaluated through the S7-400 system

◆ Verify encoder level and 24 V load supply before commissioning

INSTALLATION & UPGRADE

◆ Mount in a compatible SIMATIC S7-400 rack slot

◆ Parameterize both channels with the FM 450-1 configuration package

◆ Match the front connector and encoder wiring to the installed revision

RECOMMAND · APPLICATION GUIDANCE

Safe integration and efficient operation

SAFETY & COMPLIANCE

◆ Install inside the protected S7-400 control cabinet

◆ Use Siemens wiring and grounding instructions for encoder circuits

◆ Confirm the exact 1AP00 revision before replacing an installed module

PERFORMANCE & EFFICIENCY

◆ Two independent channels reduce CPU counting load

◆ High-speed inputs support counting up to 500 kHz

◆ Dedicated measurement functions improve repeatability

6ES7450-1AP00-0AE0

Siemens 6ES7450-1AP00-0AE0

6ES7450-1AP00-0AE0 Counter Function Module

SIMATIC S7-400 FM 450-1

Siemens Counter Function Module
