6ES7650-8BK60-0AA0

SIMATIC PCS 7 ET 200PA SMART 8AQ U/I Analog Output Module

PRODUCT IDENTITY

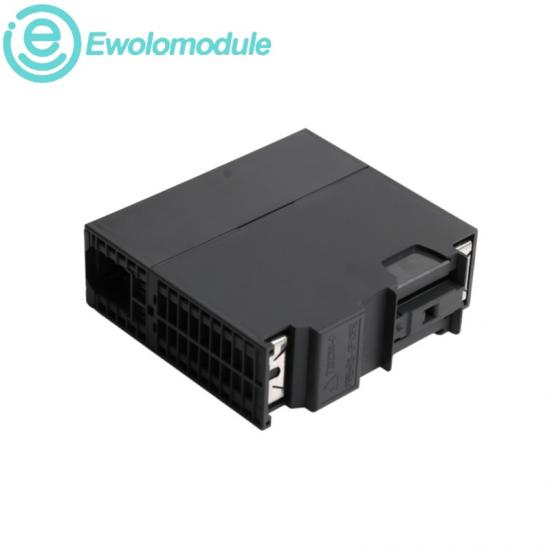

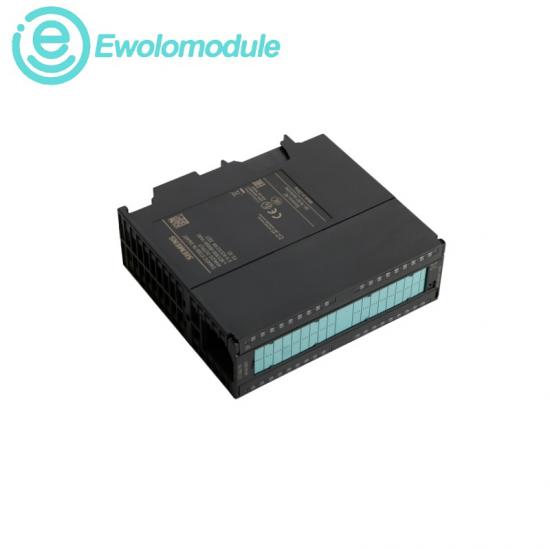

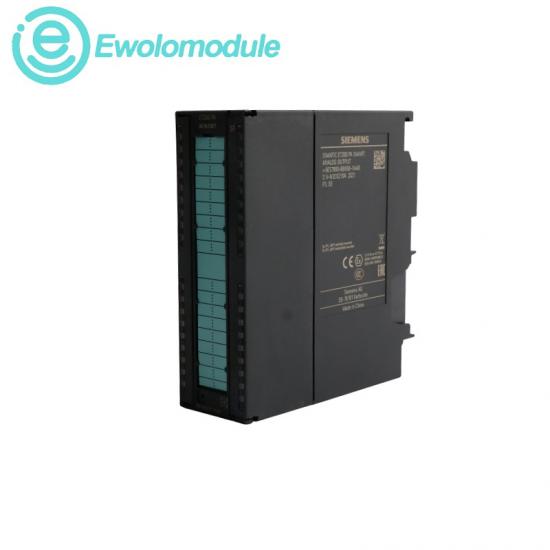

Siemens 6ES7650-8BK60-0AA0 SIMATIC PCS 7 ET 200PA SMART 8AQ U/I Analog Output Module

An isolated eight-channel voltage/current analog output module for ET 200PA SMART distributed I/O stations.

Product series: ET 200PA SMART

☎ Tel: +86 17359287459

✉ Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration, diagnostics and installation

PRODUCT DESCRIPTION

This ET 200PA SMART output module provides eight isolated analog channels for voltage or current signals in process automation. It is used with the required IM 650-8PH interface module and the 40-pole terminal arrangement, while integrated diagnostics support plant maintenance and fault localization.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

ET 200PA SMART AO8

OUTPUT CHANNELS

8 analog outputs

SIGNAL TYPES

Voltage / current

ELECTRICAL ISOLATION

Yes

RESOLUTION

11 / 12 bit

CONNECTOR

40-pole

REQUIRED INTERFACE

IM 650-8PH

DIAGNOSTICS

Integrated diagnostics

DIAGNOSTICS & PROTECTION

◆ Integrated diagnostics support channel and module fault localization

◆ Isolated outputs help separate field signals from station electronics

◆ Verify channel wiring and configured signal range before enabling outputs

INSTALLATION & UPGRADE

◆ Install in an ET 200PA SMART station with IM 650-8PH

◆ Use the specified 40-pole terminal connection

◆ Configure output ranges and diagnostics in the PCS 7 hardware configuration

RECOMMAND · APPLICATION GUIDANCE

Safe integration and efficient operation

SAFETY & COMPLIANCE

◆ Use only the published ET 200PA SMART wiring arrangement

◆ Maintain field-circuit isolation and protective grounding

◆ Commission outputs only after loop and range verification

PERFORMANCE & EFFICIENCY

◆ Eight channels consolidate analog output signals in one module

◆ 11/12-bit conversion supports standard process control duties

◆ Diagnostics reduce troubleshooting time in distributed I/O stations
