PRODUCT DETAILS · INDUSTRIAL AUTOMATION

6GK7343-1GX30-0XE0

SIMATIC NET CP 343-1 Advanced Communications Processor

PRODUCT IDENTITY

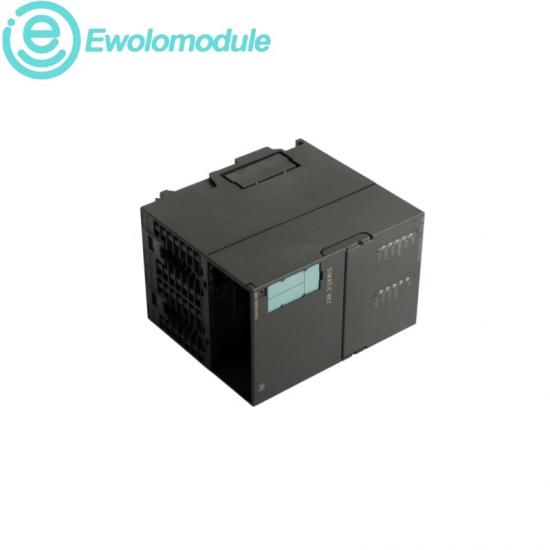

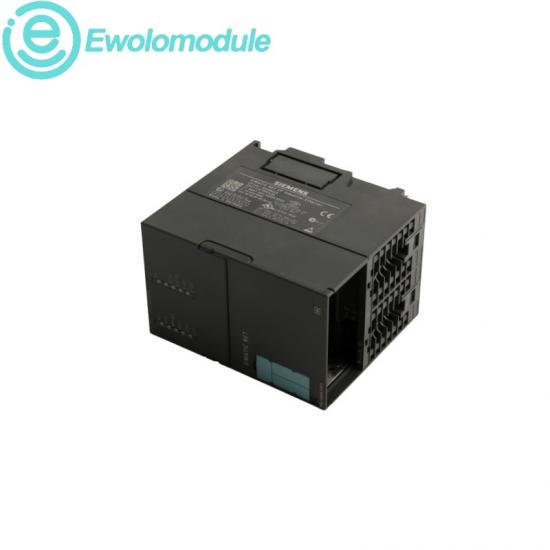

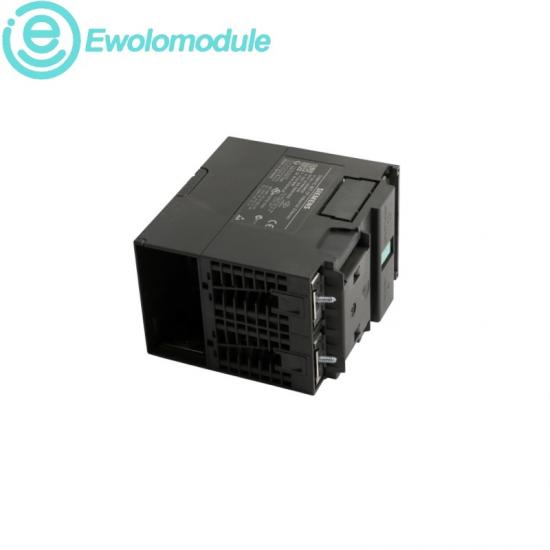

Siemens 6GK7343-1GX30-0XE0 SIMATIC NET CP 343-1 Advanced Communications Processor

An advanced Industrial Ethernet and PROFINET communications processor for SIMATIC S7-300 controllers.

Product series: SIMATIC NET CP 343-1 Advanced

☎ Tel: +86 17359287459

✉ Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration, diagnostics and installation

PRODUCT DESCRIPTION

The CP 343-1 Advanced connects an S7-300 station to Industrial Ethernet and supports PROFINET IO controller/device functions together with PROFINET CBA. Integrated switch ports, S7 communication, open user communication and C-PLUG storage support flexible plant networking and service replacement.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

CP 343-1 Advanced

AUTOMATION SYSTEM

SIMATIC S7-300

PROFINET ROLE

IO controller / device

PROFINET CBA

Supported from V1.0

ETHERNET PORTS

2 × 10/100 + 1 × Gigabit

PROTOCOLS

TCP/IP, ISO, UDP, S7

REMOVABLE MEMORY

C-PLUG supported

ENGINEERING

STEP 7 / NCM S7

DIAGNOSTICS & PROTECTION

◆ LED indicators and network diagnostics support fault localization

◆ SNMP and web diagnostics provide network status information

◆ Stored C-PLUG data assists controlled module replacement

INSTALLATION & UPGRADE

◆ Mount in a compatible S7-300 rack and connect the backplane bus

◆ Assign the device configuration and network parameters in STEP 7

◆ Check CPU, firmware and project compatibility before replacement

RECOMMAND · APPLICATION GUIDANCE

Safe integration and efficient operation

SAFETY & COMPLIANCE

◆ Use screened Industrial Ethernet cabling and correct grounding

◆ Keep the station within published cabinet and environmental limits

◆ Verify PROFINET device names and IP settings before plant connection

PERFORMANCE & EFFICIENCY

◆ Integrated switching supports segmented S7-300 networking

◆ PROFINET IO and CBA functions consolidate automation communication

◆ C-PLUG storage shortens replacement and recommissioning work
