PRODUCT DETAILS · INDUSTRIAL AUTOMATION

6SE7090-0XX84-0AD1

SIMOVERT MASTERDRIVES CUMC Motion Control Unit

PRODUCT IDENTITY

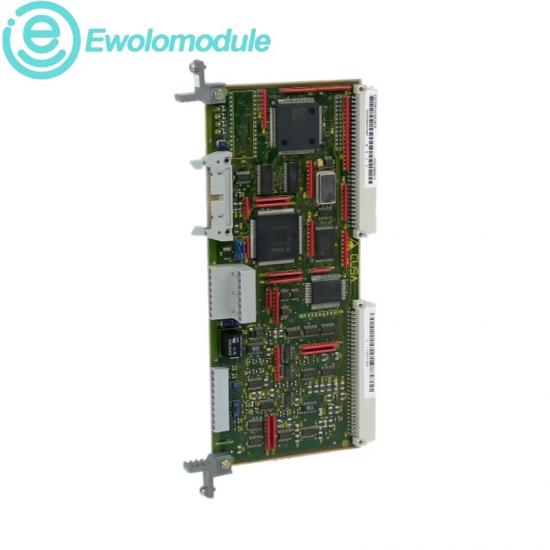

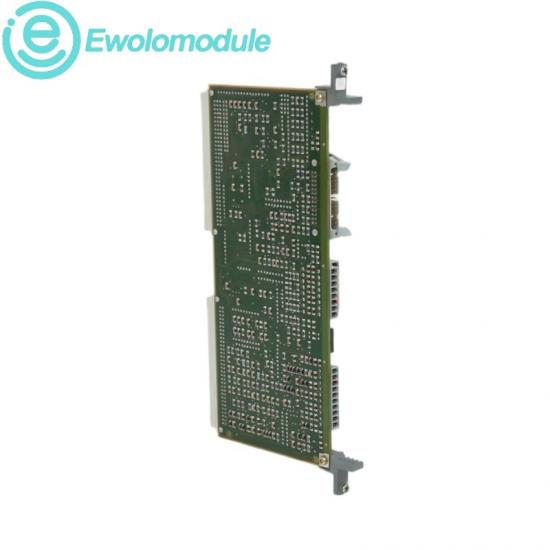

Siemens 6SE7090-0XX84-0AD1 SIMOVERT MASTERDRIVES CUMC Motion Control Unit

A CUMC control unit for motion-control functions in SIMOVERT MASTERDRIVES compact and chassis units.

Product series: SIMOVERT MASTERDRIVES Motion Control

☎ Tel: +86 17359287459

✉ Email: sales9@apterpower.com

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Configuration, diagnostics and installation

PRODUCT DESCRIPTION

The CUMC board provides the motion-control processing platform for SIMOVERT MASTERDRIVES MC converters. Revision AD1 supports two encoder evaluation boards simultaneously, with defined slot rules for motor temperature evaluation, external encoders and encoder simulation on the drive backplane.

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION	CUMC	DRIVE FAMILY	SIMOVERT MASTERDRIVES MC
APPLICATION	Compact and chassis units	HARDWARE REVISION	AD1
MAIN PROCESSOR	C167, 20 MHz	ENCODER BOARDS	Two simultaneously supported
MOTOR TEMPERATURE	Evaluation via slot C	TECHNOLOGY BOARDS	T300 / T400 supported

DIAGNOSTICS & PROTECTION

◆ Drive diagnostics and alarm history support controlled troubleshooting

◆ Encoder evaluation must follow the documented slot assignment

◆ Back up parameters before replacing or recommissioning the control unit

INSTALLATION & UPGRADE

◆ Install only in the applicable MASTERDRIVES compact or chassis unit

◆ Match firmware, option boards and encoder interfaces to the original configuration

◆ Restore and verify the parameter set before enabling the drive

RECOMMAND · APPLICATION GUIDANCE

Safe integration and efficient operation

SAFETY & COMPLIANCE

◆ Isolate the DC link and observe discharge time before board work

◆ Use ESD protection when handling the control electronics

◆ Confirm drive type, firmware and option-board assignment before startup

PERFORMANCE & EFFICIENCY

◆ Dedicated motion-control processing coordinates demanding axis functions

◆ Dual encoder-board support expands feedback configurations

◆ Backplane encoder simulation supports compatible T300/T400 applications
