Positioning Technology MODEL 6ES7451-3AL00-0AE0

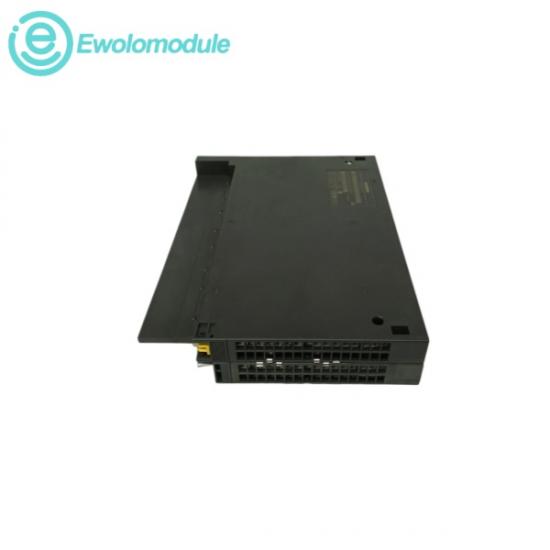

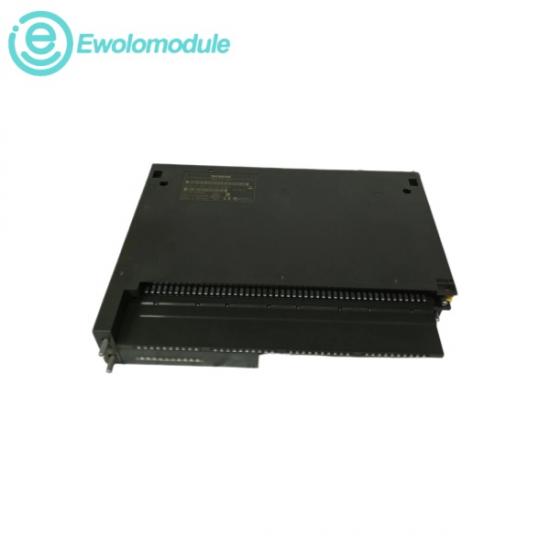

Siemens 6ES7451-3AL00-0AE0 SIMATIC S7-400 FM 451 Positioning Module

Siemens 6ES7451-3AL00-0AE0 is a three-channel SIMATIC S7-400 FM 451 positioning module for rapid/slow traverse drives. 6ES7451-3AL00-0AE0 processes incremental or SSI encoder feedback and controls motor travel in compatible automation systems.

Product SeriesSiemens SIMATIC S7-400 FM 451 Positioning Module Series

Product StatusNew and Original

Tariff Code85371091

Product Introduction

Siemens 6ES7451-3AL00-0AE0 is an FM 451 three-channel positioning function module for the SIMATIC S7-400 automation system. It positions rapid/slow traverse drives and provides four digital motor-control outputs per channel for rapid traverse, creep, travel right, and travel left. The module accepts symmetrical or asymmetrical incremental encoders and SSI absolute encoders for displacement measurement. With twelve digital inputs, twelve digital outputs, 5 V and 24 V encoder supplies, galvanic isolation, and a 48-pin front-connector interface, 6ES7451-3AL00-0AE0 integrates controlled positioning into compatible S7-400 machines and material-handling systems.

Rated supply voltage	24 V DC	Digital inputs	12; 4 per axis
Current consumption, typical	550 mA	Digital outputs	12; 4 per axis
Power loss, typical	3.6 W	5 V encoder output current	210 mA maximum
Operating temperature	0 °C to 55 °C	24 V encoder output current	300 mA maximum
SSI clock frequency	1.25 MHz maximum	Protection rating	IP20

Applications by Industry

4 Typical Use Cases

01Feed processes in woodworking machinery.

Controls the positioning sequence used to change routing heads and working stations on compatible profile-processing machines.

02Injection-molding handling systems.

Positions a gripper arm that removes molded parts from the tool during automated handling operations.

03High-bay warehouse systems.

Controls positioning movements used to store and retrieve standardized containers in automated warehouse equipment.

04Three-axis machine positioning.

Controls up to three rapid/slow traverse axes using four digital motor-control outputs per channel and encoder position feedback.
