CNC Control Platform MODEL 6FC5370-5AA20-0AA0

Siemens 6FC5370-5AA20-0AA0 SINUMERIK 828D PPU 261.2 Horizontal Panel Processing Unit

Siemens 6FC5370-5AA20-0AA0 is a horizontal SINUMERIK 828D PPU 261.2 CNC panel processing unit for machine-tool control. 6FC5370-5AA20-0AA0 integrates operator interface, CNC, PLC, and drive control for turning and milling systems.

Product SeriesSiemens SINUMERIK 828D PPU 261.2 Series

Product StatusNew and Original

Tariff Code85371091

Product Introduction

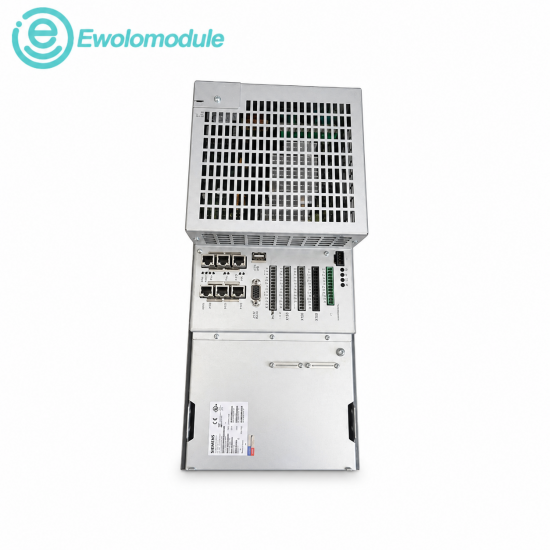

Siemens 6FC5370-5AA20-0AA0 is the horizontal PPU 261.2 panel processing unit for the SINUMERIK 828D compact CNC platform. It combines a 10.4-inch TFT operator panel with embedded CNC, PLC, HMI, and SINAMICS drive-control functions. The unit supports up to six axes or spindles, one machining channel, 3 MB of buffered CNC user memory, and three DRIVE-CLiQ interfaces. 6FC5370-5AA20-0AA0 provides a compact control and operating platform for compatible standard turning and milling machines.

Input voltage	24 V DC	Axes/spindles, maximum	6
Power consumption, maximum	60 W	CNC user memory	3 MB
Power loss	28 W	Speed/current control cycle	125 µs
Display diagonal	10.4 in	Minimum block-change time	Approximately 6 ms
Display resolution	800 × 600 pixels	Protection rating	IP65 front / IP20 rear

Applications by Industry

4 Typical Use Cases

01CNC turning machines.

Provides integrated operator, CNC, PLC, and drive control for compatible standard turning-machine configurations.

02CNC milling machines.

Controls coordinated machining functions in compatible milling systems using the SINUMERIK 828D and SINAMICS platform.

03Multi-axis machine tools.

Supports machine configurations with up to six axes or spindles and one machining channel.

04SINAMICS drive-based machining systems.

Connects the CNC platform with compatible SINAMICS S120 or S120 Combi drive equipment through DRIVE-CLiQ.
