PROFIBUS Communication MODEL 6GK1561-4AA02

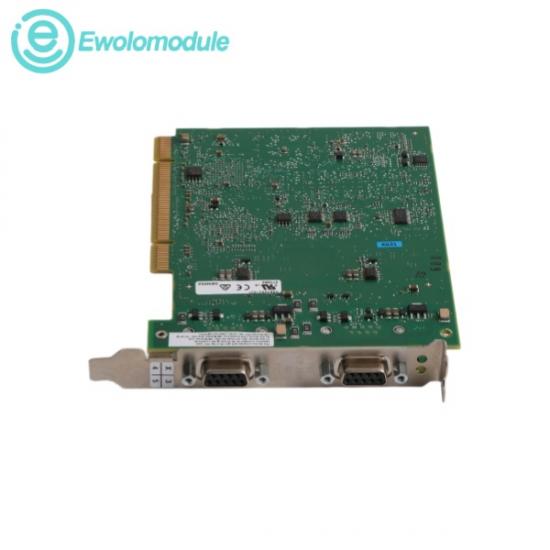

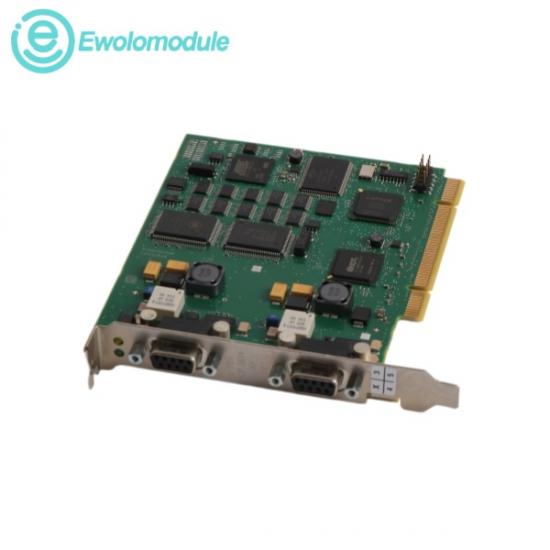

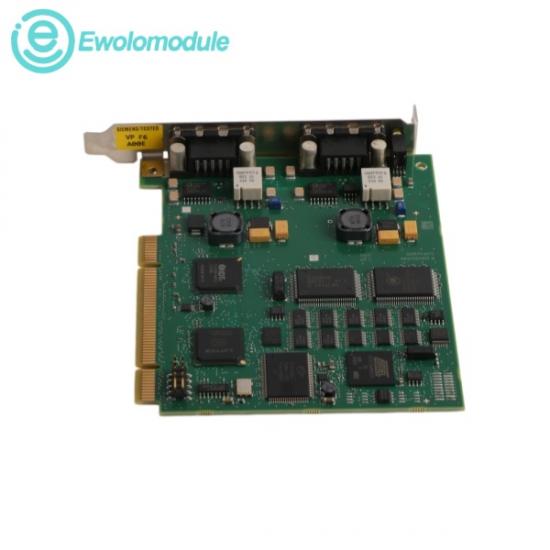

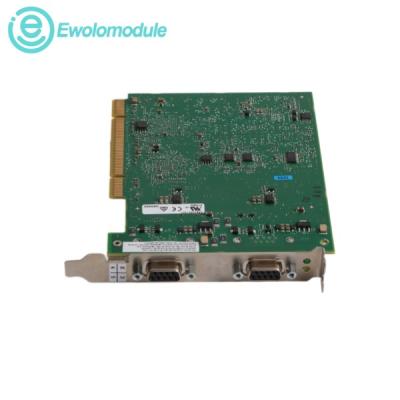

Siemens 6GK1561-4AA02 SIMATIC NET CP 5614 A3 Communication Processor

Siemens 6GK1561-4AA02 is a SIMATIC NET CP 5614 A3 PCI communication processor with PROFIBUS master and slave interfaces. 6GK1561-4AA02 supports DP-RAM, PG, and FDL communication in compatible PC-based automation systems.

Product SeriesSiemens SIMATIC NET CP 5614 A3 Series

Product StatusNew and Original

Tariff Code85371091

Product Introduction

Siemens 6GK1561-4AA02 is a SIMATIC NET CP 5614 A3 communication processor for connecting a PCI-based PC station to PROFIBUS. The 32-bit PCI card operates at 3.3 V or 5 V and 33 MHz or 66 MHz. It provides separate PROFIBUS master and slave interfaces, DP-RAM access for the DP master, and integrated PG and FDL protocols. 6GK1561-4AA02 supports DPV0, DPV1, and DPV2 services for compatible PC-based automation, distributed I/O, engineering, and open communication tasks.

PCI bus voltage	3.3 V / 5 V	Current at 12 V DC, maximum	0.3 A
PCI bus frequency	33 MHz / 66 MHz	Active power loss	4 W
PROFIBUS interface 1 rate	9.6 kbit/s to 12 Mbit/s	Operating temperature	5 °C to 55 °C
PROFIBUS interface 2 rate	9.6 kbit/s to 12 Mbit/s	Storage temperature	−20 °C to +60 °C
Current at 3.3 V DC, maximum	0.15 A	Relative humidity, maximum	85% at 25 °C

Applications by Industry

5 Typical Use Cases

01PC-based PROFIBUS DP master stations.

Connects a compatible industrial PC to PROFIBUS and coordinates distributed DP slave devices.

02PROFIBUS DP slave integration.

Provides a separate slave interface for exchanging process data with a higher-level PROFIBUS DP master.

03Distributed I/O systems.

Supports DPV0, DPV1, and DPV2 services and operation with up to 124 usable DP slaves.

04Open FDL communication.

Handles SEND/RECEIVE data exchange through the included FDL driver with up to 80 possible connections.

05Engineering and diagnostics.

Supports PG communication and port diagnostics for commissioning and service of compatible PROFIBUS networks.
