Industrial Network Gateway MODEL 6GK1411-5AB10

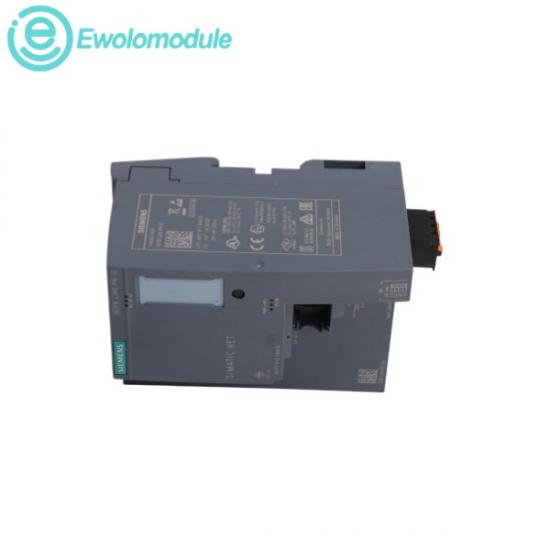

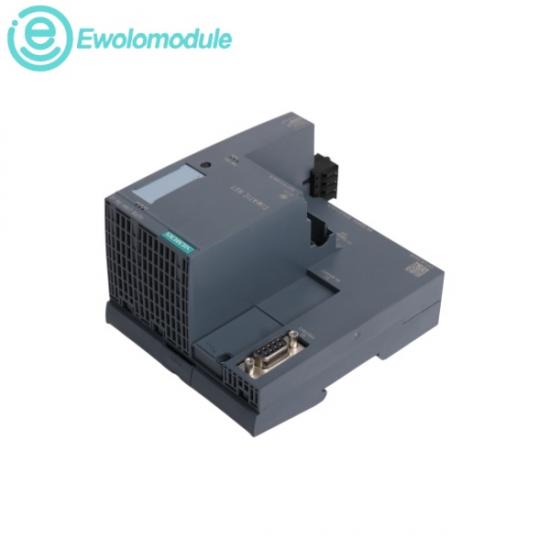

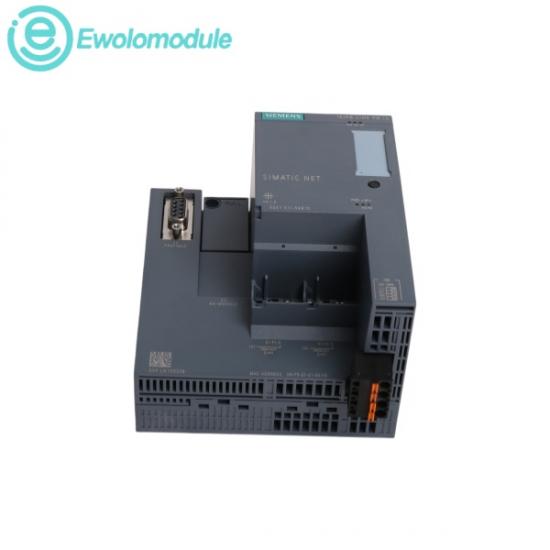

Siemens 6GK1411-5AB10 SIMATIC NET IE/PB LINK PN IO Gateway

Siemens 6GK1411-5AB10 is an IE/PB LINK PN IO gateway between Industrial Ethernet and PROFIBUS. 6GK1411-5AB10 provides PROFINET IO proxy, S7 routing, network management, redundant power, and real-time communication for automation networks.

Product SeriesSiemens SIMATIC NET IE/PB LINK PN IO Series

Product StatusNew and Original

Tariff Code85371091

Product Introduction

Siemens 6GK1411-5AB10 is a SIMATIC NET IE/PB LINK PN IO network-transition device and PROFINET IO proxy that connects Industrial Ethernet and PROFINET systems to PROFIBUS. It supports real-time communication, S7 routing, data-record routing, SIMATIC and NTP time synchronization, SNMP v1, LLDP, MRP, and up to 64 S7, DPV0, or DPV1 slaves. 6GK1411-5AB10 also supports DP/PA Link and DP/FF Link integration and uses redundant 24 V DC power connections for compatible industrial networks.

Rated supply voltage	24 V DC	Industrial Ethernet rate	10 Mbit/s to 100 Mbit/s
Supply-voltage tolerance	−15% / +20%	PROFIBUS rate	9.6 kbit/s to 12 Mbit/s
Typical current consumption	0.2 A at 24 V DC	DP slaves, maximum	64
Maximum current consumption	0.3 A at 24 V DC	Operating temperature, horizontal	0 °C to 60 °C
Power loss	4.8 W typical / 7.2 W maximum	Operating temperature, vertical	0 °C to 40 °C

Applications by Industry

5 Typical Use Cases

01PROFINET-to-PROFIBUS plant integration.

Connects installed PROFIBUS DP devices and subsystems to a PROFINET IO controller through proxy operation.

02S7 routing and engineering access.

Routes compatible programming, operator, and diagnostic communication between Industrial Ethernet and PROFIBUS networks.

03Process-field network transitions.

Supports DP/PA Link and DP/FF Link configurations for connecting process instruments and fieldbus segments.

04Redundant industrial network infrastructure.

Uses dual power-supply connections and Media Redundancy Protocol to support higher network availability.

05Time synchronization and network monitoring.

Provides SIMATIC and NTP time synchronization together with SNMP v1 and LLDP services for managed automation networks.
