Industrial Wireless LAN MODEL 6GK5774-1FX00-0AA0

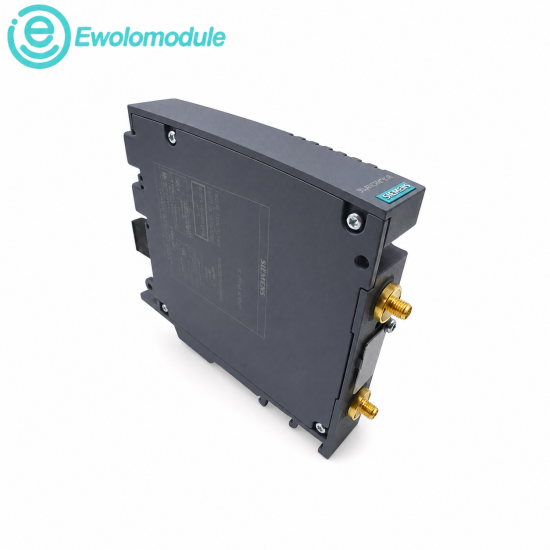

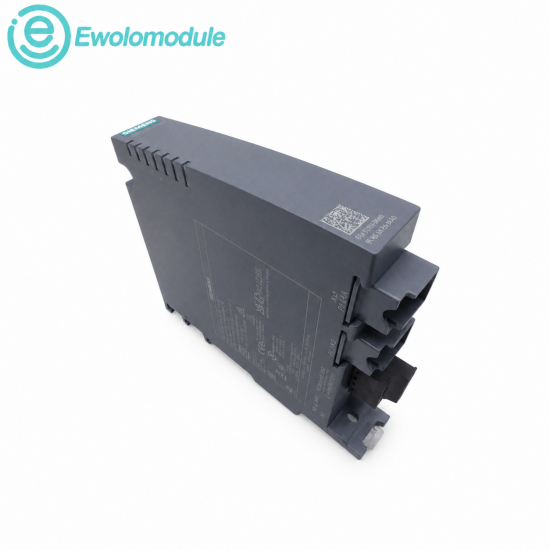

Siemens 6GK5774-1FX00-0AA0 SCALANCE W774-1 RJ45 IWLAN Access Point

Siemens 6GK5774-1FX00-0AA0 is a SCALANCE W774-1 RJ45 industrial wireless LAN access point with dual-band radio and two-port Ethernet switching. 6GK5774-1FX00-0AA0 provides 300 Mbit/s WLAN, PoE, redundant 24 V supply, and iFeatures-ready networking.

Product SeriesSiemens SCALANCE W774 RJ45 Series

Product StatusNew and Original

Tariff Code85176200

Product Introduction

Siemens 6GK5774-1FX00-0AA0 is a SCALANCE W774-1 RJ45 industrial wireless LAN access point for control-cabinet and automation-network installations. It supports IEEE 802.11a/b/g/h/n operation in the 2.4 GHz and 5 GHz bands, one 2x2 MIMO radio, two external R-SMA antenna connections, and two 10/100 Mbit/s RJ45 ports with an integrated switch. 6GK5774-1FX00-0AA0 can be supplied through redundant 24 V DC terminals or Power over Ethernet and supports C-PLUG, KEY-PLUG, WPA2, 802.11i, and optional iFeatures.

WLAN transfer rate, maximum	300 Mbit/s	PoE supply voltage	48 V DC
Industrial Ethernet rate	10 Mbit/s / 100 Mbit/s	Current consumption at 24 V DC	0.25 A typical
Radio frequency bands	2.4 GHz / 5 GHz	PoE current consumption	0.125 A typical
MIMO configuration	2 x 2	Power loss	6 W typical
External antenna ports	2 R-SMA sockets	Operating temperature	−20 °C to +60 °C

Applications by Industry

5 Typical Use Cases

01Industrial wireless access points.

Provides IEEE 802.11 wireless connectivity for Ethernet and PROFINET devices in control-cabinet automation networks.

02Wireless client and bridge installations.

Connects compatible stationary or mobile industrial devices to an existing IWLAN infrastructure through client operation.

03Production-line wireless communication.

Supports reliable data exchange for machines, operator stations, and industrial terminals across 2.4 GHz or 5 GHz networks.

04PoE and redundant-power network nodes.

Allows flexible deployment using Power over Ethernet or dual 24 V DC supply connections in industrial cabinets.

05Managed IWLAN and roaming systems.

Supports KEY-PLUG-enabled iFeatures, security, diagnostics, and industrial roaming functions in compatible SCALANCE networks.
