Single-Axis Drive Control MODEL 6SL3040-0LA00-0AA1

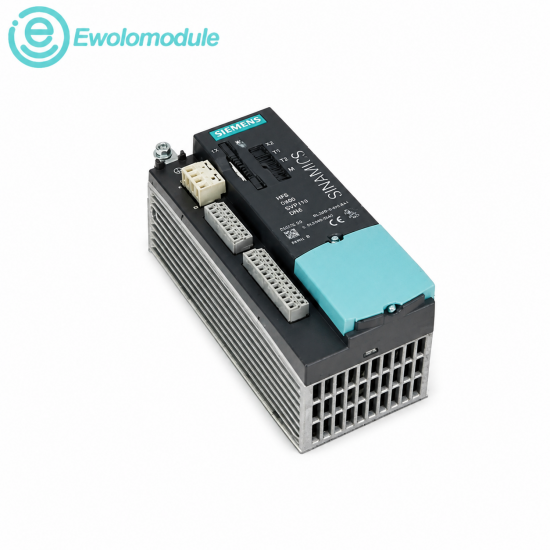

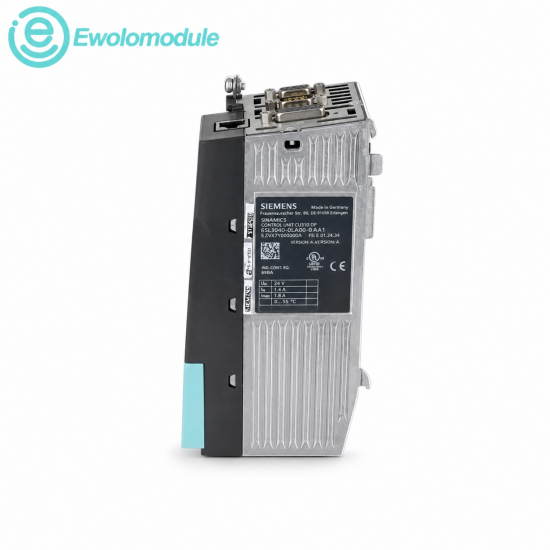

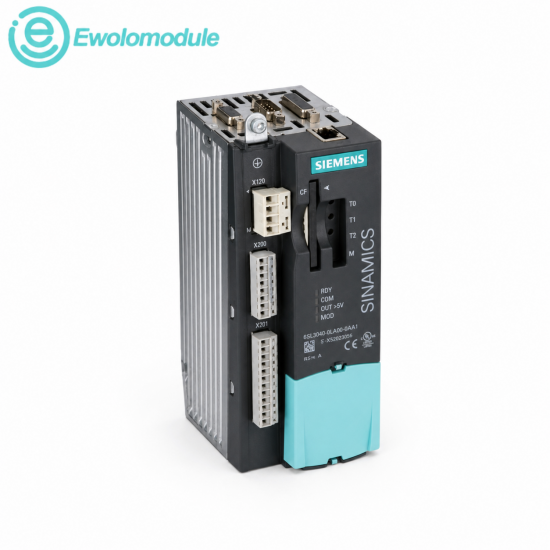

Siemens 6SL3040-0LA00-0AA1 SINAMICS S120 CU310 DP Control Unit

Siemens 6SL3040-0LA00-0AA1 is a SINAMICS S120 CU310 DP Control Unit without CompactFlash card for single-axis drive automation. 6SL3040-0LA00-0AA1 integrates PROFIBUS DP, digital I/O, DRIVE-CLiQ, encoder evaluation, and motor-temperature monitoring for compatible Power Modules.

Product SeriesSiemens SINAMICS S120 CU310 DP Series

Product StatusNew and Original

Tariff Code85371091

Product Introduction

Siemens 6SL3040-0LA00-0AA1 is a SINAMICS S120 CU310 DP Control Unit without a CompactFlash card, designed for controlling a single drive through a compatible PM340 Power Module. It provides a PROFIBUS DP interface, DRIVE-CLiQ connectivity, isolated and bidirectional digital inputs and outputs, TTL, HTL, and SSI encoder evaluation, and motor-temperature sensing through X120 and X23. 6SL3040-0LA00-0AA1 supports commissioning, closed-loop drive control, encoder feedback, diagnostics, and integrated automation communication.

Rated electronics supply	24 V DC	Digital output voltage	24 V DC
Maximum current requirement	0.35 A plus 0.5 A for PM340	Digital output load current	500 mA maximum per output
Fuse protection, maximum	20 A	Encoder frequency, maximum	300 kHz
Digital input voltage range	−3 V to +30 V	SSI baud rate	100 kBaud to 250 kBaud
Digital input current	10 mA typical at 24 V DC	Power loss	Less than 20 W

Applications by Industry

5 Typical Use Cases

01Single-axis SINAMICS S120 drive control.

Controls a compatible PM340 Power Module for coordinated speed, torque, and positioning functions in industrial machinery.

02PROFIBUS DP machine integration.

Connects the drive control unit to PLC and plant-automation networks for command, status, parameter, and diagnostic data.

03Encoder-based motion feedback.

Evaluates TTL, HTL, or SSI encoder signals for closed-loop motor and machine-position monitoring.

04Digital machine I/O control.

Processes isolated digital inputs and bidirectional digital input/output channels for drive-related interlocks and equipment signals.

05Drive maintenance and lifecycle replacement.

Restores the specified CU310 DP control platform during service of compatible installed SINAMICS S120 systems.
