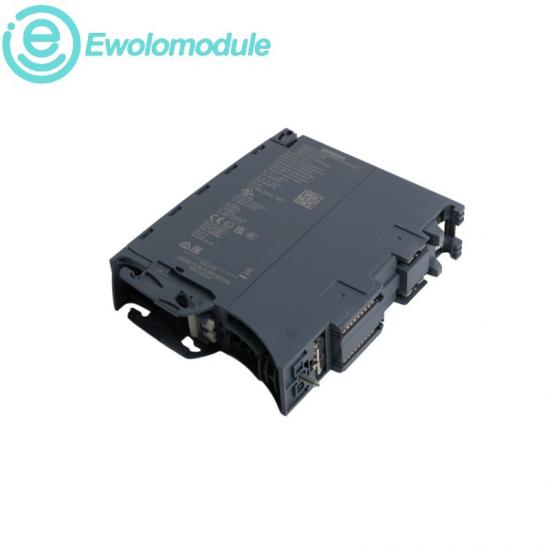

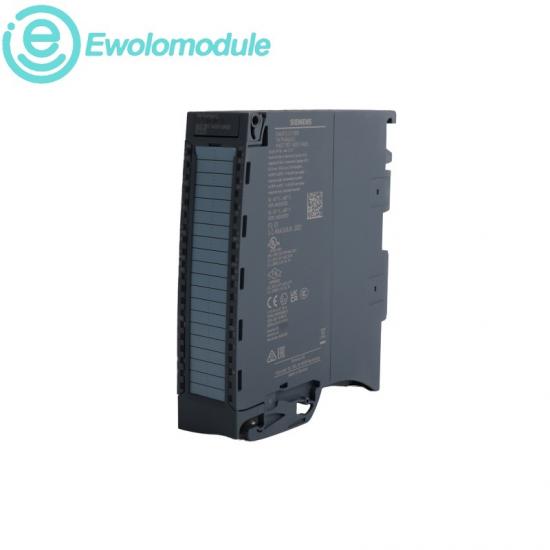

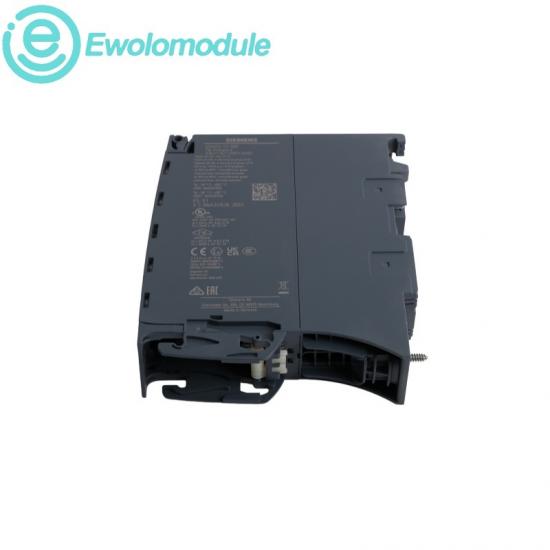

6ES7551-1AB00-0AB0

SIMATIC S7-1500 TM PosInput 2 Technology Module

PRODUCT SNAPSHOT

The Siemens 6ES7551-1AB00-0AB0 TM PosInput 2 is a two-channel technology module for SIMATIC S7-1500 and ET 200MP systems. It acquires position and counting data from RS422 incremental encoders or SSI absolute encoders while providing two digital inputs and two digital outputs per channel.

Isochronous operation, measuring-input functions and integrated diagnostics support precise motion and positioning tasks. Firmware V1.x is assigned to this hardware revision, with V1.3 feature support available through TIA Portal; the later 6ES7551-1AB01-0AB0 V2.0 module is documented as a compatible successor.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

RELATED MODELS

COMPLIANCE · LIFECYCLE · ENGINEERING

Certified operation, controlled updates, precise setup

CERTIFICATION & STANDARDS

◆Siemens lists EU and UK declarations of conformity plus UL approval

◆Use within S7-1500 or ET 200MP system limits and installation-altitude derating

◆I&M0 to I&M3 identification data supports compliant asset documentation

FIRMWARE & UPDATES

◆The exact module uses firmware V1.x; product data lists V1.3

◆Firmware updating is supported for the original hardware revision

◆6ES7551-1AB01-0AB0 with V2.0 is the compatible replacement for this module

CONFIGURATION & PROGRAMMING

◆Configure in STEP 7 TIA Portal from V12; feature level depends on firmware

◆Select RS422 incremental or SSI absolute encoder settings per channel

◆Parameterize digital I/O, measuring input and isochronous operation as required

OFFICIAL TECHNICAL DATA

Channels 2 position channels	Encoder types RS422 incremental or SSI	Digital inputs 4 total	Digital outputs 4 total
Firmware V1.3	Power loss 5.5 W typical	Address space 16 bytes per channel	Isochronous mode Supported

Siemens TM PosInput 2 product manual and data sheet for 6ES7551-1AB00-0AB0.

BRAND VALUE · APPLICATION MAP

Engineering strengths and where this model fits

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆Precise Siemens technology I/O processes encoder signals close to the controller	◆Position measurement and encoder evaluation
◆Isochronous operation supports deterministic position and counting applications	◆High-speed counting and measuring inputs
◆Integrated diagnostics and I&M data improve commissioning and asset management	◆Motion-control and synchronized machinery
◆A documented compatible successor protects S7-1500 and ET 200MP investments	◆S7-1500 or ET 200MP technology upgrades
