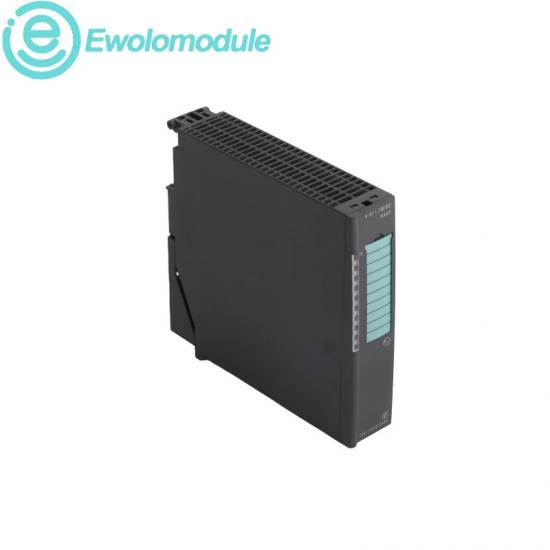

6ES7134-4FB52-0AB0

SIMATIC ET 200S 2 AI High-Speed Voltage Module

PRODUCT SNAPSHOT

The Siemens 6ES7134-4FB52-0AB0 is a 15 mm wide SIMATIC ET 200S analog electronic module with two high-speed voltage inputs. It supports multiple voltage ranges, isolated channel-to-backplane operation and fast acquisition for time-critical process signals.

Each channel converts analog values in 15 microseconds, while the module supports isochronous operation, parameterizable smoothing and an SF group-fault indicator. A maximum shielded cable length of 200 m and a compact 24 V DC design make it practical for distributed measurement inside modular ET 200S stations.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

RELATED MODELS

COMPLIANCE · LIFECYCLE · ENGINEERING

Certified operation, controlled updates, precise setup

CERTIFICATION & STANDARDS

◆Siemens product documentation provides EC declarations for ET 200 and ET 200S

◆Isolation is tested at 500 V DC according to the module manual

◆RoHS and lifecycle status should be checked against the current Siemens product record

FIRMWARE & UPDATES

◆The module is parameterized through the station; no separate user application firmware is loaded

◆Back up the ET 200S hardware configuration before replacement

◆Match module identification and feature support when substituting related revisions

CONFIGURATION & PROGRAMMING

◆Configure as 2AI U HS in STEP 7 using the correct ET 200S interface module

◆Select the required ±10 V, ±5 V, ±2.5 V or 1–5 V range

◆Parameterize smoothing, diagnostics and isochronous operation to match the process

OFFICIAL TECHNICAL DATA

Analog inputs 2 voltage	Rated supply 24 V DC	Module width 15 mm	Conversion time 15 µs per channel
Cycle time 0.1 ms class	Resolution 15/16 bit with sign	Cable length 200 m shielded max.	Power loss 2 W typical

Siemens data sheet and ET 200S 2AI U HS manual for 6ES7134-4FB52-0AB0.

BRAND VALUE · APPLICATION MAP

Engineering strengths and where this model fits

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆High-speed Siemens analog acquisition supports time-critical measurement	◆Fast voltage measurement and signal capture
◆Narrow ET 200S form factor preserves valuable cabinet space	◆Test stands and automated inspection equipment
◆Isochronous capability supports coordinated automation cycles	◆Motion-related analog acquisition
◆Parameterizable ranges and diagnostics simplify commissioning and service	◆ET 200S expansion, retrofit and spare-part replacement
