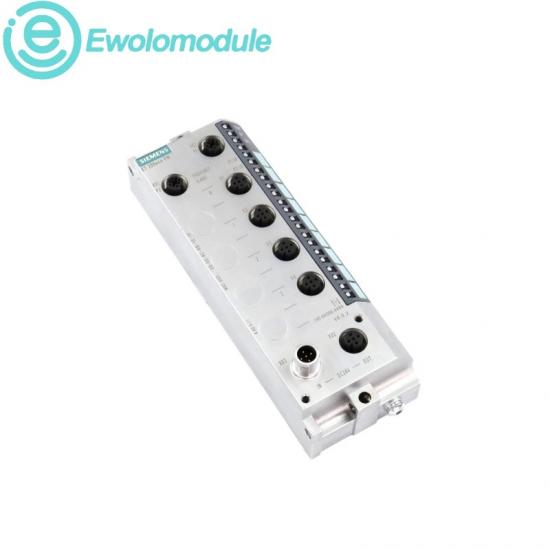

6ES7145-6HD00-0AB0

SIMATIC ET 200eco PN 4 AO U/I Module

PRODUCT SNAPSHOT

The Siemens 6ES7145-6HD00-0AB0 is a rugged SIMATIC ET 200eco PN distributed I/O device with four analog voltage or current outputs. It connects directly through M12 interfaces and operates in an IP67 enclosure for cabinet-free installation near sensors and actuators.

PROFINET communication carries output data and device diagnostics between the module and the controller, reducing long analog cable runs. Channel mode, output range, device name and network settings are configured in STEP 7 or TIA Portal to match valves, drives and other analog actuators.

DIRECT CONTACT

☎ +86 17359287459 ✉ sales9@apterpower.com

RELATED MODELS

COMPLIANCE · LIFECYCLE · ENGINEERING

Certified operation, controlled updates, precise setup

CERTIFICATION & STANDARDS

◆IP67 degree of protection for field installation with correctly sealed connectors

◆RoHS-compliant since 25 November 2009 according to Siemens product data

◆Observe PROFINET, EMC and installation requirements of the ET 200eco PN system

FIRMWARE & UPDATES

◆Check the installed device firmware and interface compatibility before replacement

◆Use only Siemens-supported device packages and firmware for ET 200eco PN

◆Save the PROFINET device configuration and output scaling before maintenance

CONFIGURATION & PROGRAMMING

◆Configure four analog output channels in STEP 7 or TIA Portal

◆Select voltage or current mode and output range for each application

◆Assign PROFINET device name, IP settings and diagnostics before commissioning

OFFICIAL TECHNICAL DATA

Analog outputs 4 U/I	Network PROFINET IO	Field connectors 4×M12	Protection IP67
Installation Machine-mounted	Lifecycle Phase-out product	Country of origin Germany	Commodity code 85389091

Siemens SiePortal record and ET 200eco PN product overview for 6ES7145-6HD00-0AB0.

BRAND VALUE · APPLICATION MAP

Engineering strengths and where this model fits

BRAND CHARACTERISTICS	APPLICATION FIELDS
◆Cabinet-free Siemens I/O reduces field wiring and enclosure requirements	◆Machine-mounted analog actuator control
◆IP67 housing supports direct installation in machine environments	◆Valve positioning and drive reference signals
◆M12 connections enable modular equipment assembly and replacement	◆Conveyor, packaging and assembly lines
◆Integrated PROFINET diagnostics support fast fault localization	◆Decentralized process skids and utility equipment
