PRODUCT DETAILS · SIEMENS

6ES7650-8BK60-1AA0

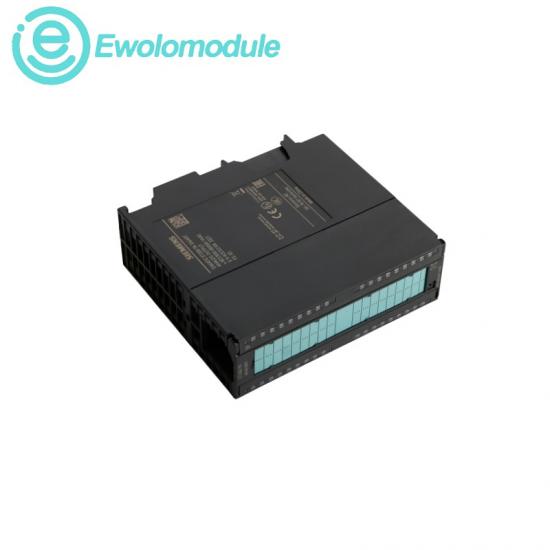

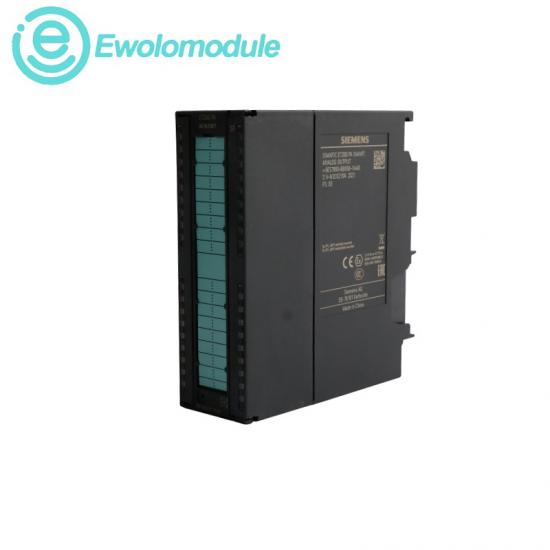

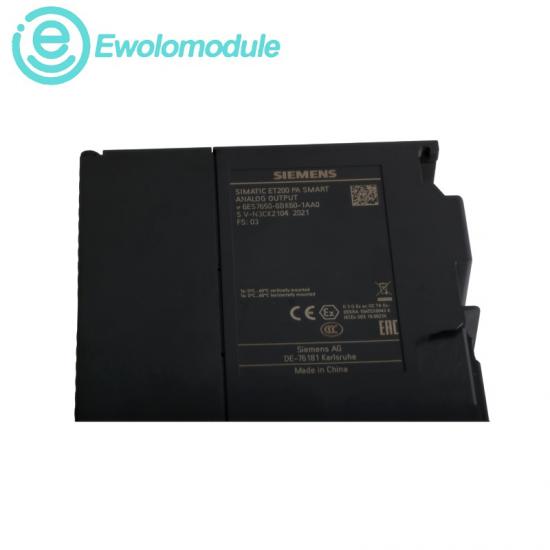

SIMATIC ET 200PA SMART AO8 Analog Output Module

PRODUCT SERIES

SIMATIC ET 200PA SMART

PRODUCT IDENTITY

Siemens 6ES7650-8BK60-1AA0 SIMATIC ET 200PA SMART AO8 Analog Output Module is an isolated eight-channel voltage and current analog output module with diagnostics, 11/12-bit resolution and conformal coating for process automation.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical configuration and compliance

PRODUCT DESCRIPTION

The ET 200PA SMART module converts controller process values into eight isolated voltage or current outputs. Configurable ranges, channel and module diagnostics, RUN-time reconfiguration and shielded cable support make it suitable for distributed process I/O; operation requires the IM 650-8PH interface module.

CERTIFICATIONS & STANDARDS

◆ CE · EN 61010-2-201

◆ EMC · EN 61000-6-4 / EN 61000-6-2

◆ CCC-Ex · Ex ec IIC T4 Gc

◆ ISA-S71.04 · G1 / G2 / G3 coating

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

AO 8x12-bit / AO8 diagnostics

OUTPUT CHANNELS

8 isolated analog outputs

SIGNAL TYPES

Voltage or current

VOLTAGE RANGES

1–5 V; 0–10 V; ±10 V

CURRENT RANGES

0–20 mA; 4–20 mA; ±20 mA

RESOLUTION

11 bit plus sign or 12 bit

CONVERSION TIME

0.8 ms per channel

RATED SUPPLY

24 V DC

SHIELDED CABLE LENGTH

Maximum 200 m

ELECTRICAL ISOLATION

500 V DC

RECOMMAND · APPLICATION GUIDANCE

Operational guidance and related products

DIAGNOSTICS & PROTECTION

The SF status indication, channel and module diagnostics, wire-break monitoring where configured, and reverse-polarity protection support rapid fault localization in distributed process I/O.

OPERATING ENVIRONMENT

Conformal coating supports ISA-S71.04 severity classes G1, G2 and G3. Operation is specified from 0 to +60 °C with horizontal mounting or 0 to +40 °C with vertical mounting.
