PRODUCT DETAILS · SIEMENS

6ES7151-8FB01-0AB0

SIMATIC DP IM 151-8F PN/DP CPU

PRODUCT SERIES

SIMATIC ET 200S

PRODUCT IDENTITY

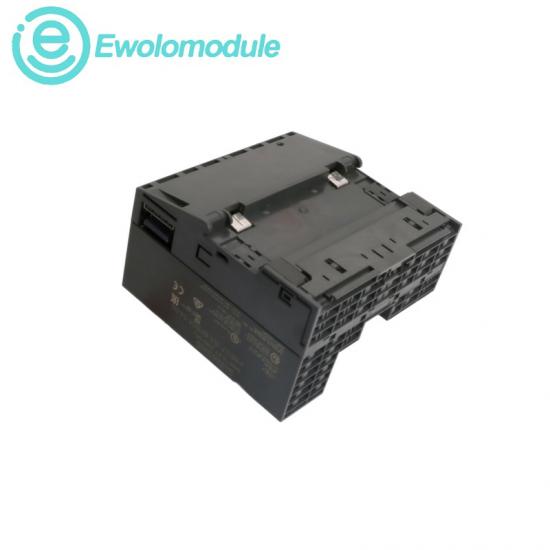

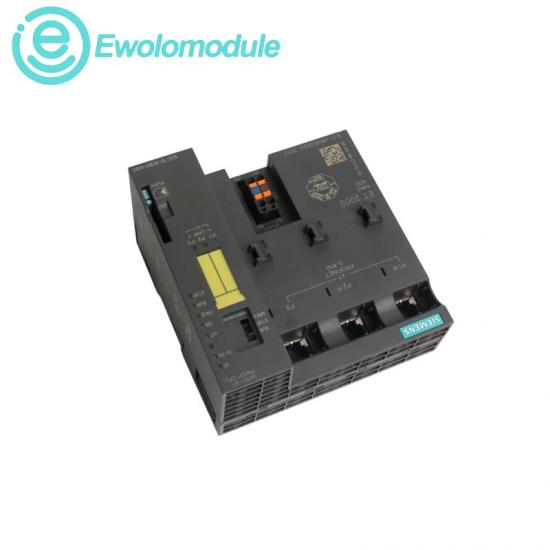

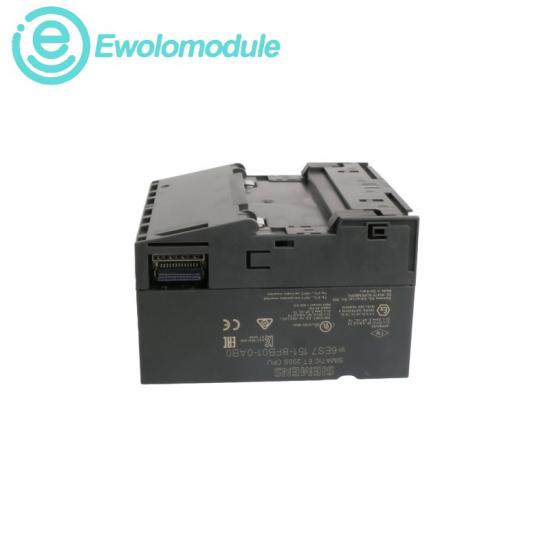

Siemens 6ES7151-8FB01-0AB0 SIMATIC DP IM 151-8F PN/DP CPU is a fail-safe distributed CPU with 256 KB work memory and an integrated three-port PROFINET interface for ET 200S automation stations.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical configuration and compliance

PRODUCT DESCRIPTION

The IM 151-8F PN/DP combines fail-safe controller functions with distributed ET 200S I/O coordination. Its integrated PROFINET switch supports IO Controller and I-device operation, IRT, MRP and S7 routing, while the SIMATIC Memory Card provides retentive load memory for standard and safety programs.

CERTIFICATIONS & STANDARDS

◆ TÜV functional-safety approval

◆ PROFINET approval

◆ CCC-Ex conformity

◆ NK marine approval

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

IM 151-8F PN/DP CPU

HARDWARE / FIRMWARE

FS01 / V3.2

WORK MEMORY

256 KB

LOAD MEMORY

SIMATIC Memory Card, maximum 8 MB

SUPPLY VOLTAGE

24 V DC; 20.4–28.8 V permissible

VOLTAGE-FAILURE BUFFER

5 ms

PROFINET PORTS

3 × RJ45, 100 Mbit/s full duplex

PROFINET ROLES

IO Controller and I-device; IRT / MRP

BIT EXECUTION TIME

0.06 µs typical

POWER LOSS

5.5 W typical

RECOMMAND · APPLICATION GUIDANCE

Operational guidance and related products

DIAGNOSTICS & PROTECTION

SF, BF-PN, MT, 24 V and individual port LEDs report CPU, network, maintenance and link status. Reverse-polarity protection and 500 V electrical isolation support robust service diagnostics.

OPERATING ENVIRONMENT

Designed for cabinet-mounted ET 200S stations with IP20 protection. Operation is specified from 0 to +60 °C under the mounting conditions stated in the Siemens technical data.

6ES7151-8FB01-0AB0

Siemens 6ES7151-8FB01-0AB0

6ES7151-8FB01-0AB0 Interface CPU

SIMATIC ET 200S

IM 151-8F PN/DP CPU

Siemens 6ES7151 Datasheet
