PRODUCT DETAILS · SIEMENS

6ES7513-1AL01-0AB0

SIMATIC S7-1500 CPU 1513-1 PN

PRODUCT SERIES

SIMATIC S7-1500

PRODUCT IDENTITY

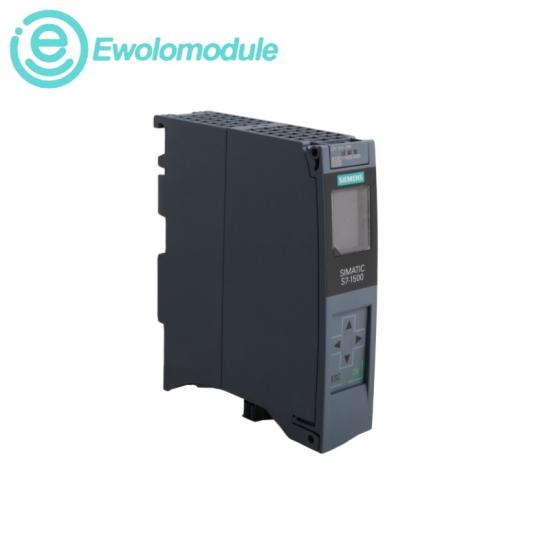

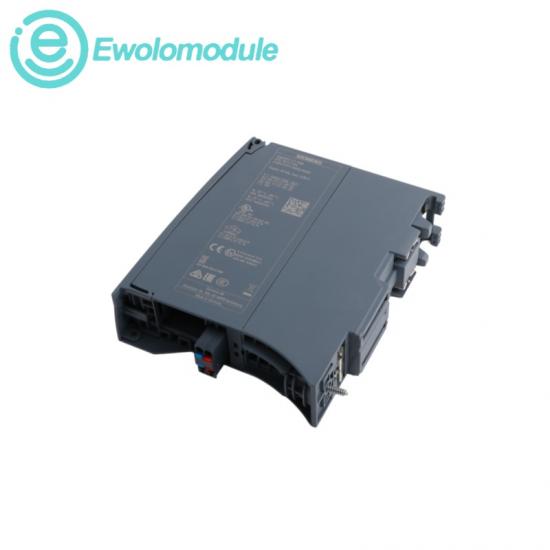

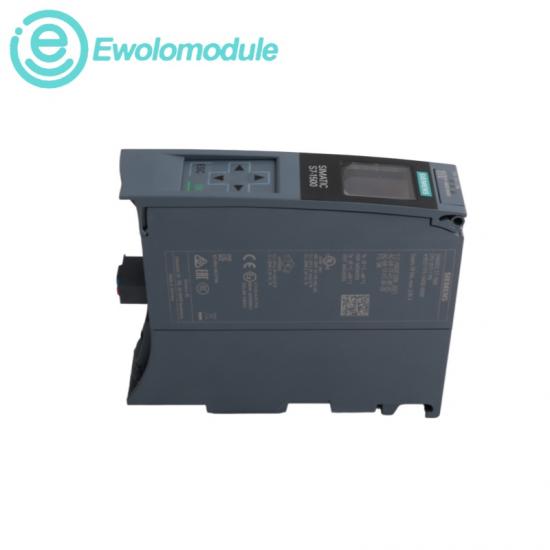

Siemens 6ES7513-1AL01-0AB0 SIMATIC S7-1500 CPU 1513-1 PN Central Processing Unit is a central processing unit with 300 KB program memory, 1.5 MB data memory and an integrated two-port PROFINET IRT interface.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical configuration and compliance

PRODUCT DESCRIPTION

The CPU 1513-1 PN coordinates central and distributed automation tasks with deterministic PROFINET IRT communication, integrated diagnostics, web-based service and technology functions. A SIMATIC Memory Card provides load memory, and engineering is performed in STEP 7 within TIA Portal.

CERTIFICATIONS & STANDARDS

◆ UL approval

◆ FM approval

◆ ATEX conformity

◆ PROFINET approval

OFFICIAL TECHNICAL DATA

PRODUCT TYPE

CPU 1513-1 PN

HARDWARE / FIRMWARE

FS03 / V2.9

SUPPLY VOLTAGE

24 V DC; 19.2–28.8 V permissible

INPUT CURRENT

0.7 A rated; 1.9 A maximum inrush

POWER LOSS

5.7 W typical

WORK MEMORY

300 KB program / 1.5 MB data

LOAD MEMORY

SIMATIC Memory Card required; maximum 32 GB

BIT EXECUTION TIME

40 ns typical

PROFINET INTERFACE

1 IRT interface; 2 RJ45 ports; 100 Mbit/s switch

PROFINET IO CAPACITY

Maximum 128 devices, including 64 IRT devices

RECOMMAND · APPLICATION GUIDANCE

Operational guidance and related products

DIAGNOSTICS & PROTECTION

A 1,000-entry diagnostic buffer, RUN/STOP, ERROR, MAINT and LINK/TX/RX LEDs, reverse-polarity protection and configurable access protection support commissioning and maintenance.

OPERATING ENVIRONMENT

Operation is specified from 0 to +60 °C with horizontal mounting or 0 to +40 °C with vertical mounting; storage and transport from -40 to +70 °C, with altitude restrictions above 2,000 m.
