PRODUCT DETAILS · SIEMENS

6AT1131-6DE21-0AB0

SIJECT CI16IP Control Interface

PRODUCT SERIES

SIJECT 16 / CI16IP

PRODUCT IDENTITY

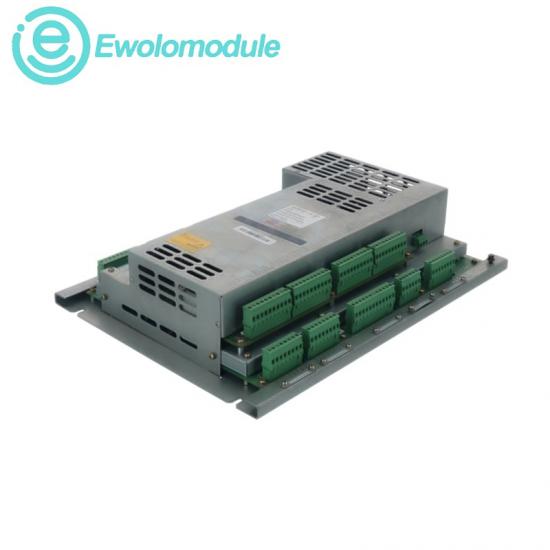

Siemens 6AT1131-6DE21-0AB0 SIJECT CI16IP Control Interface with Integrated CPU 314C-2DP, 24 V DC is a legacy injection-molding control interface with an integrated SIMATIC CPU 314C-2DP and 24 V DC supply.

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

RELATED MODELS

SPECIFICATIONS · OFFICIAL PRODUCT DATA

Technical configuration and compliance

PRODUCT DESCRIPTION

The CI16IP combines injection-molding machine sequence control with the CPU 314C-2DP platform’s integrated digital and analog I/O, fast counting, pulse outputs, positioning and PROFIBUS DP communication. It supports centralized control and distributed field-device connections in legacy SIJECT installations.

CERTIFICATIONS & STANDARDS

◆ PROFIBUS DP · EN 50170

◆ PROFIBUS-DP profile · DIN E 19245 Part 3

◆ Transmission and bus access · DIN 19245 Part 1

◆ Exact-order conformity record unavailable in current Siemens archive

OFFICIAL TECHNICAL DATA

PRODUCT TYPE

SIJECT CI16IP control interface

INTEGRATED CONTROLLER

SIMATIC CPU 314C-2DP

SUPPLY VOLTAGE

24 V DC

WORK MEMORY

48 KB, embedded original CPU generation

LOAD MEMORY

SIMATIC MMC, 64 KB–4 MB

EXECUTION PERFORMANCE

0.1 ms per 1,000 instructions

DIGITAL I/O

24 DI / 16 DO, including 4 fast outputs

ANALOG I/O

4 voltage/current AI plus 1 resistance input / 2 AO

TECHNOLOGY I/O

4 pulse outputs at 2.5 kHz; four 60 kHz encoder channels

COMMUNICATION

Integrated PROFIBUS DP master/slave and MPI

RECOMMAND · APPLICATION GUIDANCE

Operational guidance and related products

DIAGNOSTICS & PROTECTION

The integrated CPU platform provides SF, BF, DC5V, FRCE, RUN and STOP LEDs together with STEP 7 diagnostics for controller and PROFIBUS faults.

OPERATING ENVIRONMENT

Designed for cabinet-mounted legacy SIJECT installations. Siemens does not publish exact-order-number temperature, humidity or altitude ratings in the currently available archive.

6AT1131-6DE21-0AB0

Siemens 6AT1131-6DE21-0AB0

6AT1131-6DE21-0AB0 Control Interface

SIJECT CI16IP

CPU 314C-2DP Module

Siemens SIJECT Module
